AITIAO 36mm Motor Extruder Stepper Motor Round Body 3D Printer Parts with 47.2inch Cable Compatible with Orbiter Extruder Sherpa Extruder, Ender 3 Pro/Voron 2.4 / BLV / CR10 3D Printer
Availability: Pre-Order, Inquiry Price
About this product
*Package Included: 1pcs 36mm Stepper Motor with 47.2 inch cable. please feel free to contact us, if you have any question about the product.
*Rated Voltage: DC 6.5V; Rated Current: DC 0.5A; Holding Torque: ≥120mN.M: ≥120mN.m; Winding Inductance: 10±20% mH (1kHz); Winding Resistance: 13±10% ohm(20℃).
*The 36mm stepper motor compatible with most 3D Printer, such as Orbiter Extruder V1.5/V2.0, Sherpa Extruder, Reprap Ender 3/Ender 3 Pro 3D Printer and so on.
*In order to prevent the motor from overheating, the drive current of the extruder needs to be adjusted to 0.35A(method: adjust the voltage to about 0.28-0.3V or adjust the E-axis drive current by firmware).
*Holding torque up to 120mN.m, Low loss stators have good thermal control ability, have the same parameters and performance as LDOs, its a perfect replacement.
Description
AITIAO 36mm Motor Extruder Stepper Motor 1.8 Angle 0.5A 2 Phase Round Body 3D Printer Parts with 47.2inch Cable Compatible with Orbiter Extruder Sherpa Extruder, Ender 3 Pro/Voron 2.4 / BLV / CR10 3D Printer

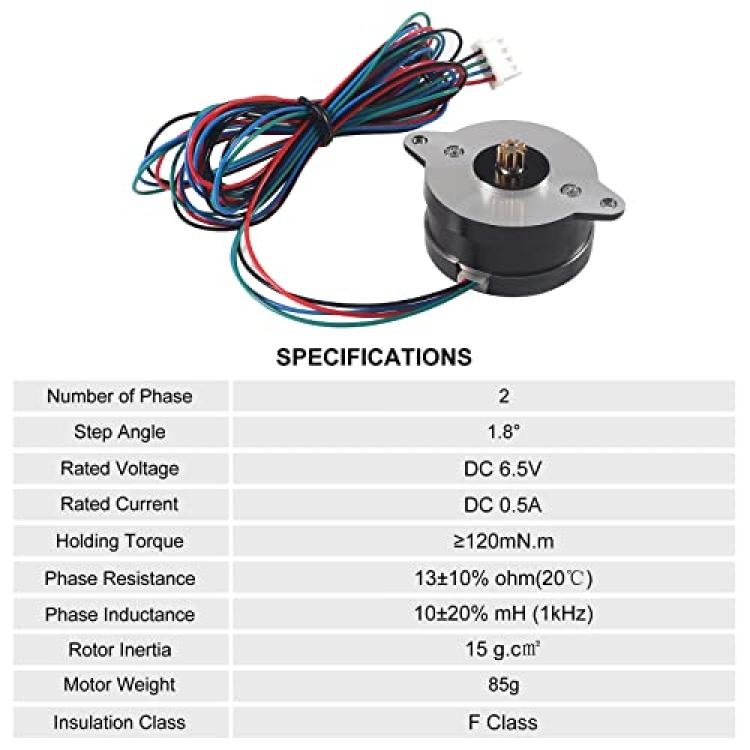

1.Number of Phase: 2
2.Step Angle: 1.8°
3.Rated Voltage: DC 6.5V
4.Rated Current: DC 0.5A
5.Holding Torque: ?120mN.M
6.Winding Resistance: 13±10% ohm(20?)
7.Winding Inductance: 10±20% mH (1kHz)
8.Direction of Retation: A-AB-B-CW
9.Rotor Inertia: 15 g.c?
10.Weight?0.1Kg
11.Insulation Class: F Class

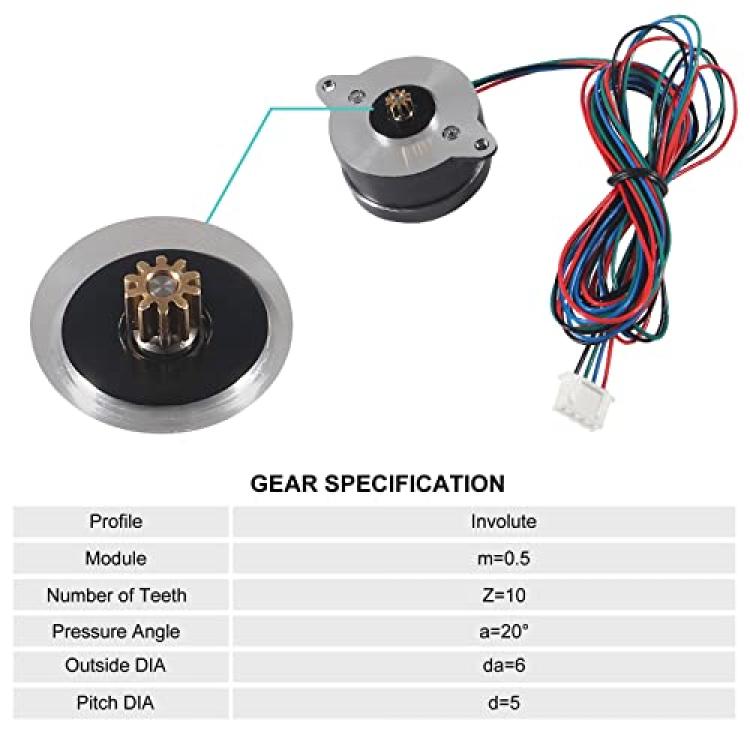

1.Module: M=0.5
2.Pressure Angle: A=20°
3.No of Teeth: Z=10
4.Pitch DIA: D=5
5.Gear outer diameter Do: 06-0.1
1 x 36mm 3D Printer Stepper Motor with 47.2inch Cable
