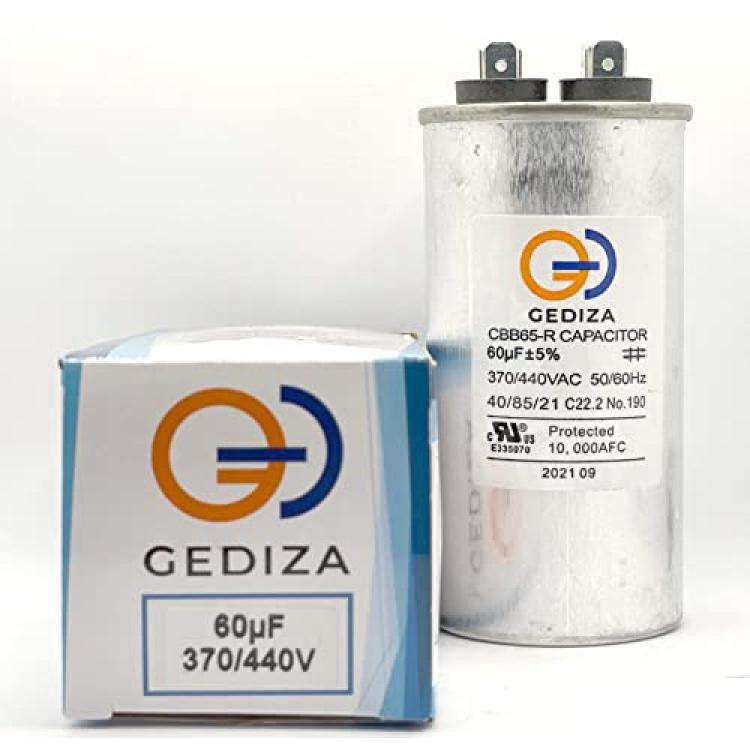

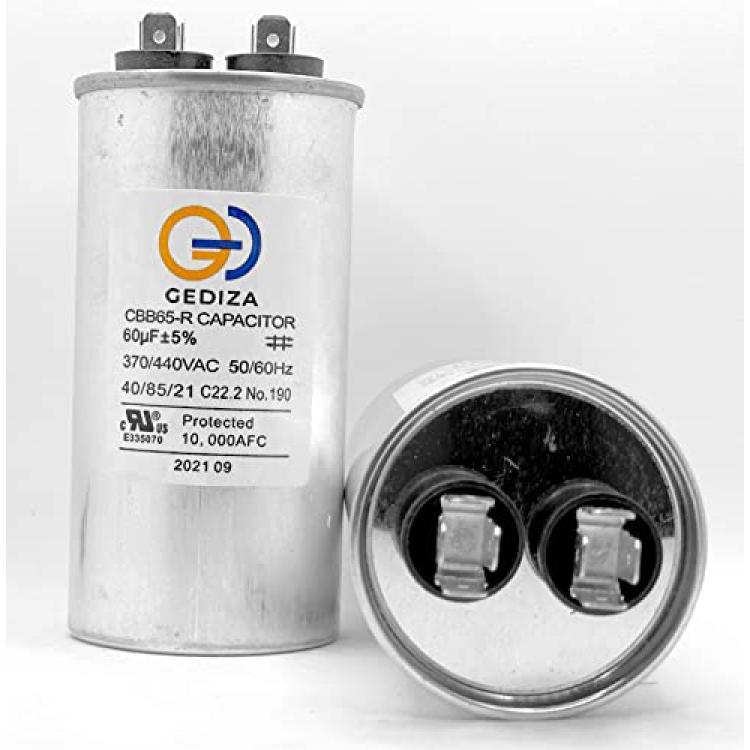

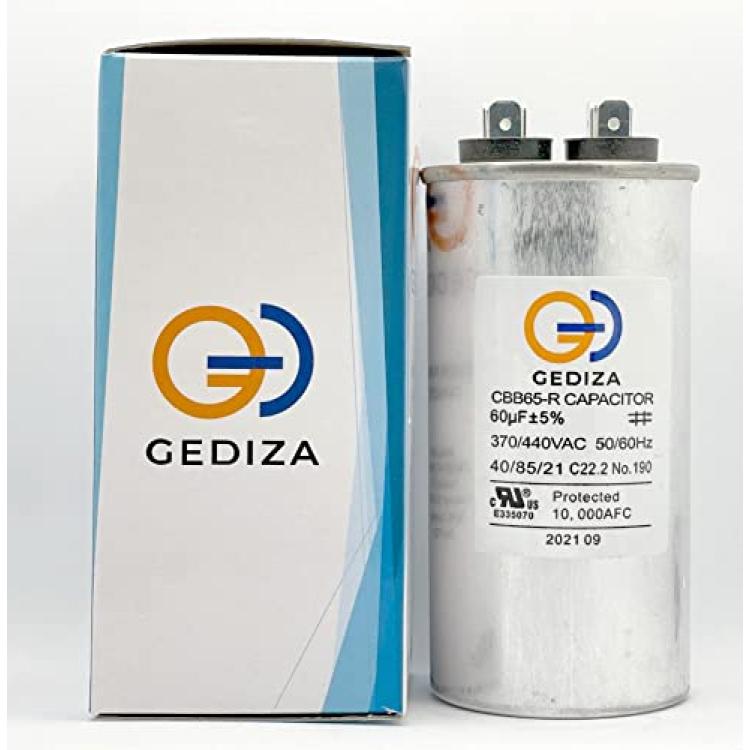

GEDIZA 60 uF 60 MFD ±5% 370/440V Dual Run Round Capacitor for HEVAC, A/C for Condenser Straight Cool or AC Motor and Fan Starting or Heat Pump A/C, Pool Pumps. Model CBB65. Guaranteed to Last 5 Years
Availability: Pre-Order, Inquiry Price
About this product
*✔The Capacitor has advantages of low dissipation.
*✔High insulation resistance.
*✔Good self-healing characters, anti-striking current, strong over-carriers.
*✔The Capacitor has advantages of low dissipation.
*✔High insulation resistance.
Description
Description
Dual run circular start capacitor combines two capacitors into one unit. Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line. It will power a compressor motor and a fan motor.
Model: CBB65?Universal Compatibility).
Shell material: metal dielectric.
Material: metallized polypropylene film.
Type of oil: Vegetable oil.
Capacity: 70 µf / 70 MFD.
Tolerance: ±5%.
Rated voltage: 370V/440V AC.
Frequency: 50 / 60Hz.
Safety rated: 10,000 AFC.
Capacitor dimension: Diameter: (50mm/1.97”), Height: (125mm/4.92”).
Capacitor weight: 280 g/9.88 Oz
Operating temperature: -40Â ? to +80?/-104?to+176?
Package dimension: 54mm x 54mm x 140mm (2.12” x 2.12” x 5.51”)
This capacitor is used for start-up and operation of AC motors with frequency of 50Hz/60Hz such as Industrial Grade Replacement for Central Air-Conditioners, Heat Pumps, Condenser Fan Motors, Compressors and Pool pumps. It is small in size, lightweight, heat resisting and anti-explosion. Round capacitor can be used to substitute oval shape one with the same MFD AND Volt specs.A 440 volt capacitor can be used in place of a 370 volt, as it is build better, but the 370 can’t be used in place of a 440 volt.
