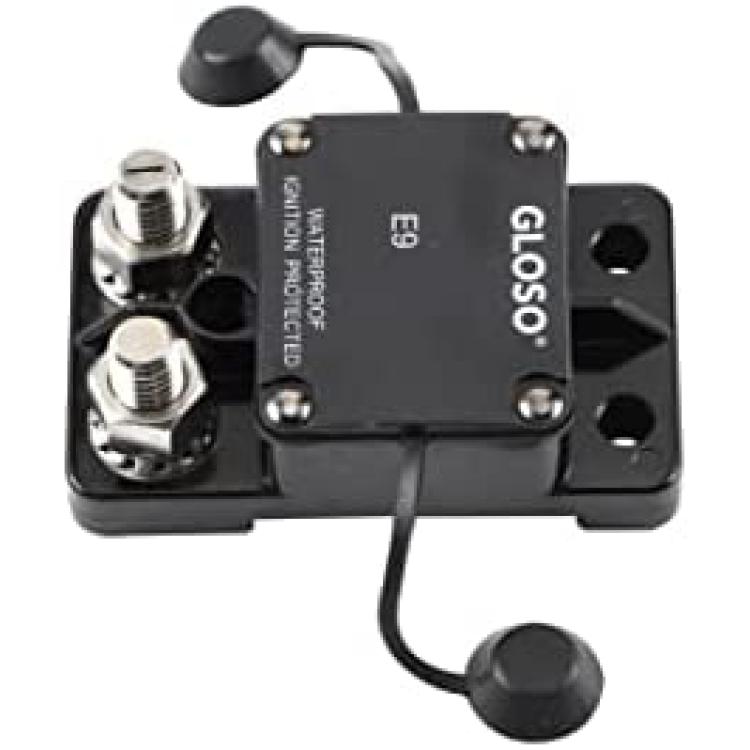

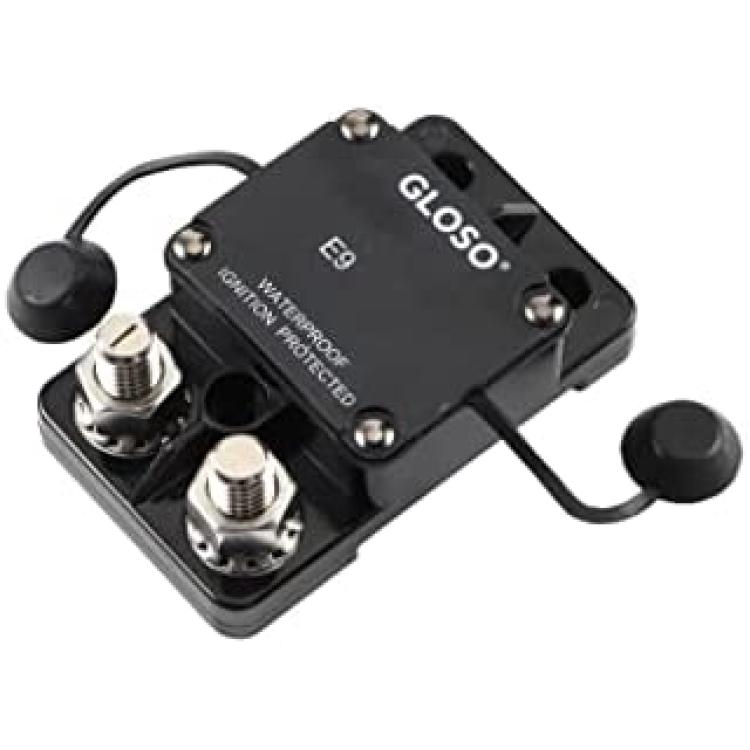

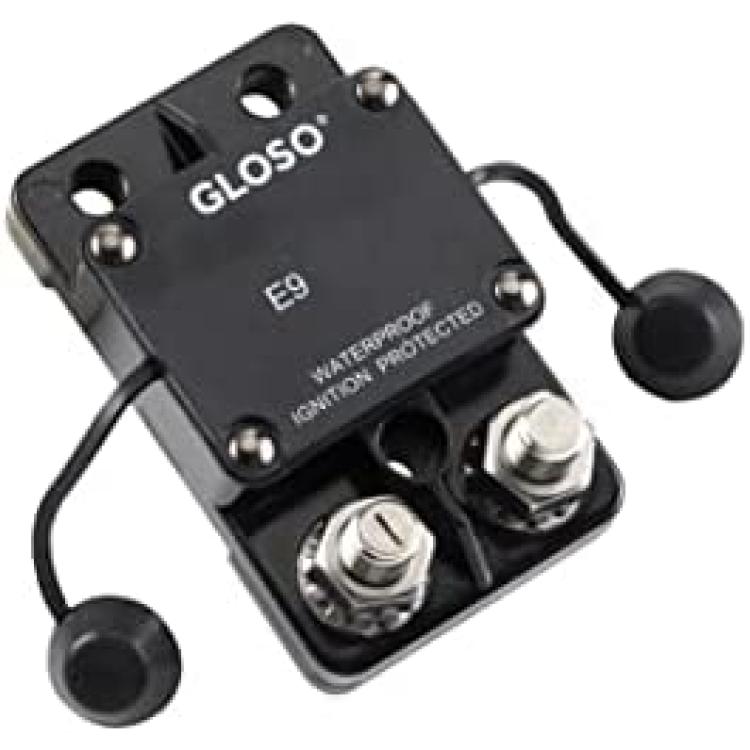

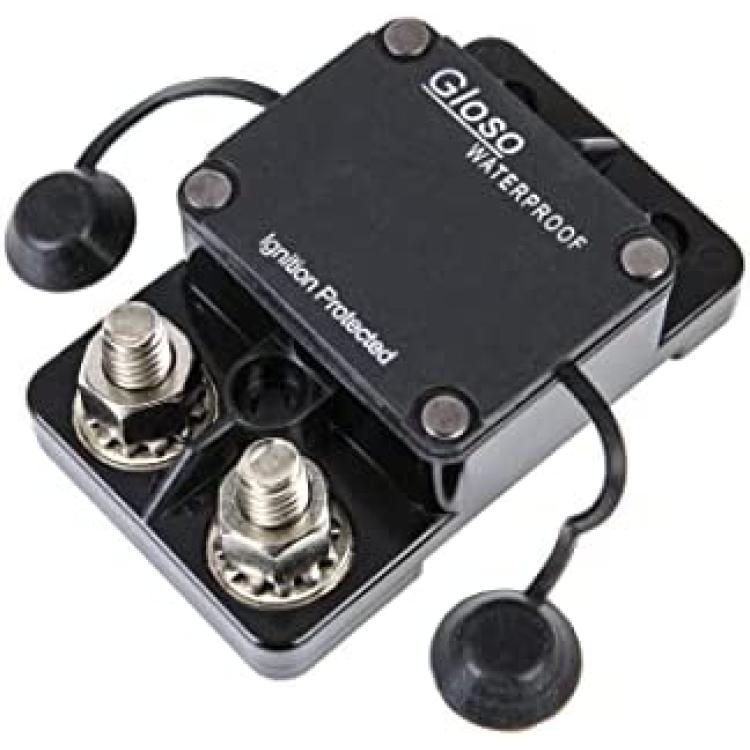

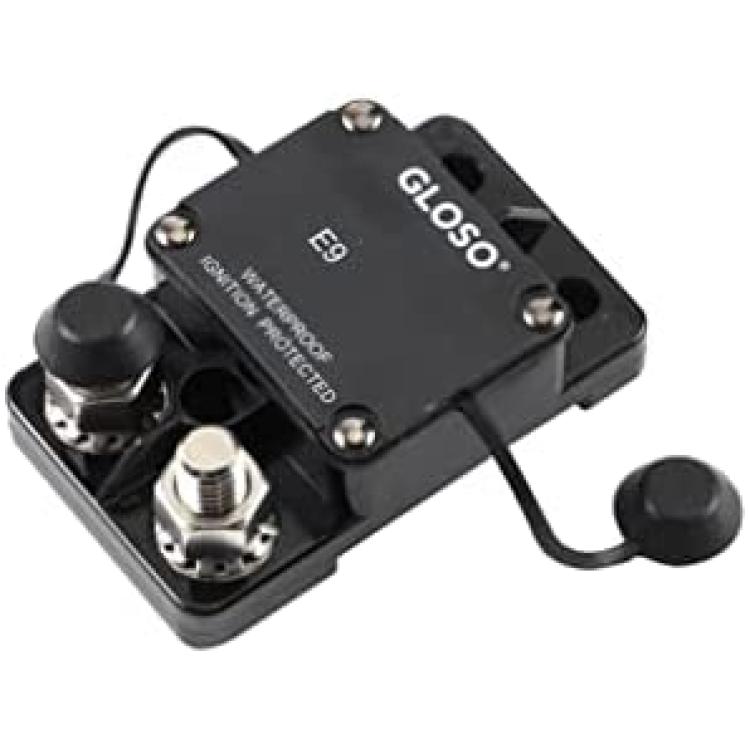

GLOSO E9A Waterproof Breaker Auto Reset For Car Truck RV Automotive Marine Boat Trolling motor & Custom Wiring Audio battery protection (T1) Side by Side Stud IP67 Hi-Amp Circuit Breaker (90A)
About this product
*90A; 5/16"-18 threaded side by side studs, Extended Surface Mount
*GLOSO E9C High Amperage Single Pole Thermal Circuit Breakers - 1 Pack
*IP67 Waterproof Rated & Ignition Protected
*Type 1 Auto Reset
*Compliances: SAE J553; SAE J1625; ABYC E-11; SAE J1171 (Ignition Protected); UL1077*
Description
GLOSO E9A Hi-Amp Circuit Breakers: 150A @ 48 Vdc - 1 Pack
Reset Type: Type 1 Auto Reset
Operating Temperature Rating: –25°F (–32°C) to 180°F (82°C)
Storage Temperature Rating: –30°F (–34°C) to 300°F (149°C)
Materials: Black UL-Rated 94V-0 thermoplastic thermoplastic elastomer stud insulators are provided on covered units with surface mount style
Marking: Standard marking includes Amp Rating and date code

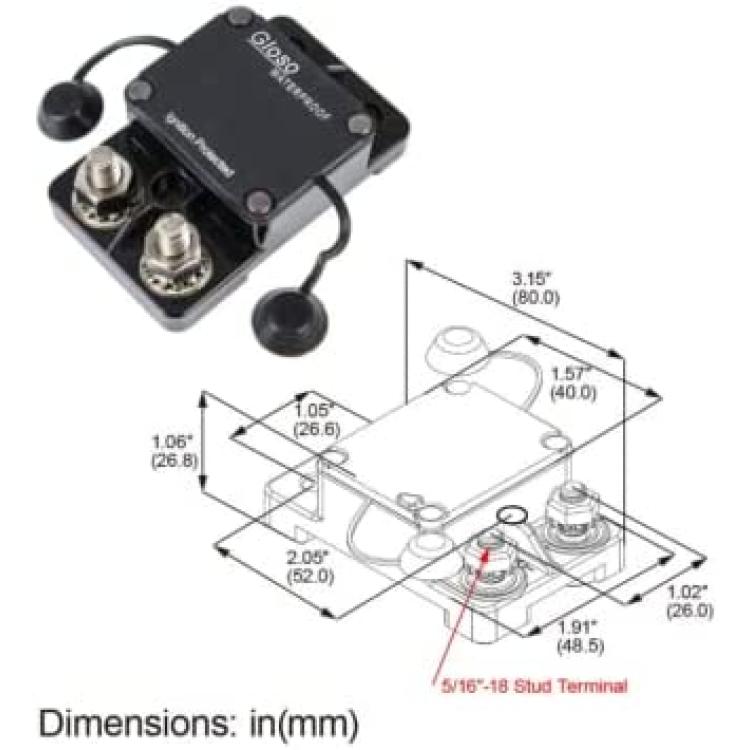

Termination: 5/16"-18 threaded studs
Compliances: SAE J553; SAE J1625; ABYC E-11; SAE J1171 (Ignition Protected); UL1077*
