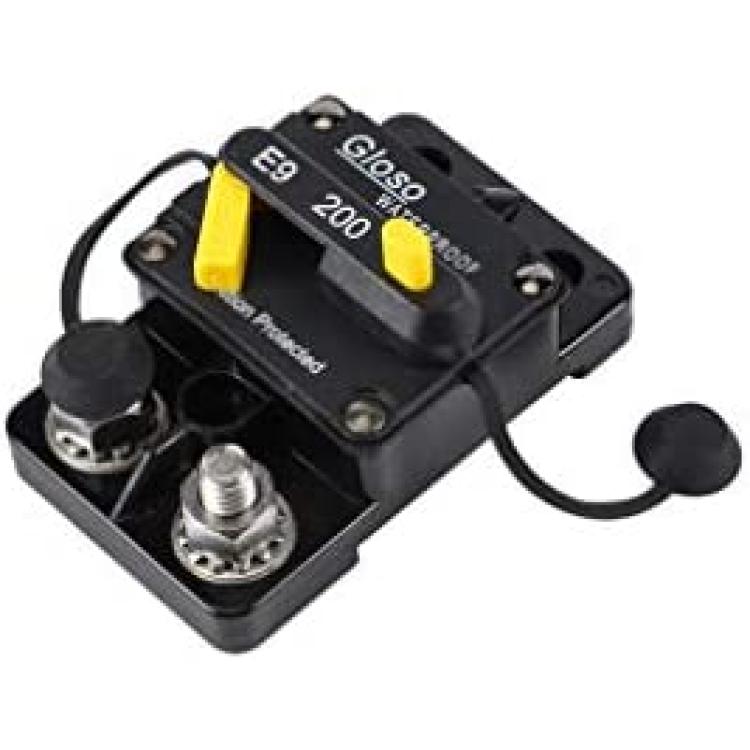

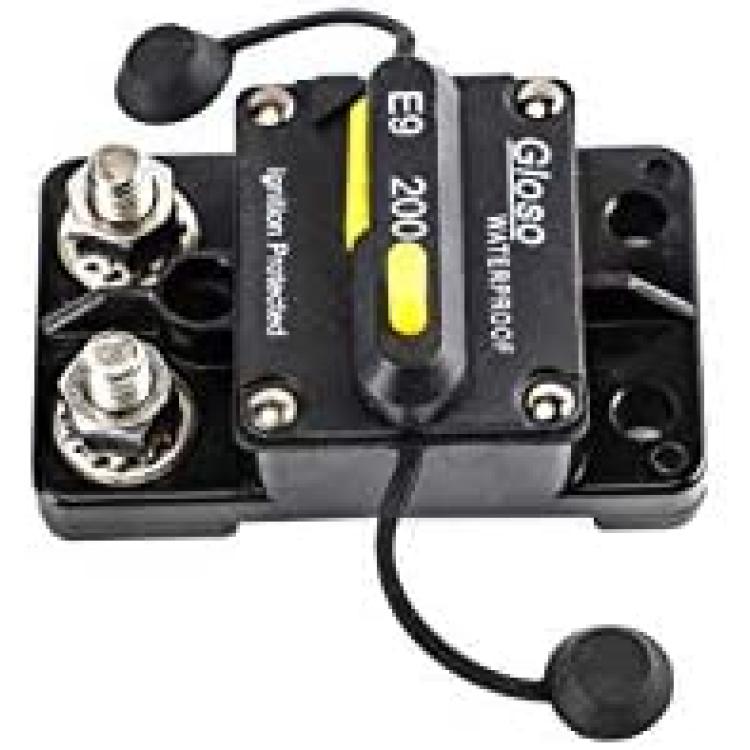

GLOSO E9C 200A Waterproof Auto Rese Breaker For Car Truck RV Automotive Marine Boat Trolling motor & Custom Wiring Audio battery protection Side by Side Stud IP67 Hi-Amp Circuit Breaker (200A)

Maximize ProductivityMinimize Defective RateCustomized PerformanceIntegrated SolutionIf you have a 24v DC system, you cannot use a circuit breaker designed for a 12v DC system. the capacity wont handle the increased current, which can cause it to trip.An auto-reset circuit breaker has a connecting plate composed of two thermally sensitive metals. The plates will contract when it reaches a designated temperature, cutting off the current. It will restore the connection when the circuit breaker plates cool down but will continue tripping until the fault is corrected.Panel MountReset Type: Type 3 Manual Reset - SwitchableOperating Temperature Rating: –25°F (–32°C) to 180°F (82°C)Storage Temperature Rating: –30°F (–34°C) to 300°F (149°C)Materials: Black UL-Rated 94V-0 thermoplastic elastomer stud insulators are provided on covered units with surface mount styleMarking: Standard marking includes Amp Rating and date codeTermination: 1/4" threaded studs optionsCompliances: SAE J553; SAE J1625; ABYC E-11; SAE J1171 (Ignition Protected); UL1077*
