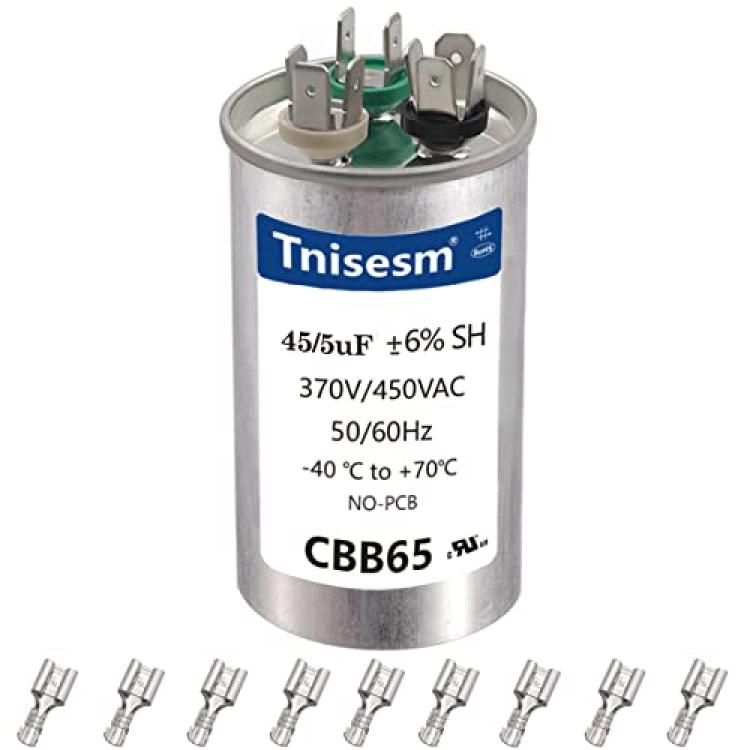

Tnisesm 45+5 uF 45/5 MFD ±6% 370V/440 AC CBB65B Capacitor Dual Run Circular Start Capacitor, 9PCS Spade Terminal, Capacitor for AC Motor Run or Fan Start or Condenser Straight
Availability: Pre-Order, Inquiry Price
About this product
*Product Name: Dual run circular start capacitor
*Rated Capacitance: 45+5uF; Tolerance: ±6 %
*Operating temperature: -40 ℃ to +70℃/-104℉to+158℉
*Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.

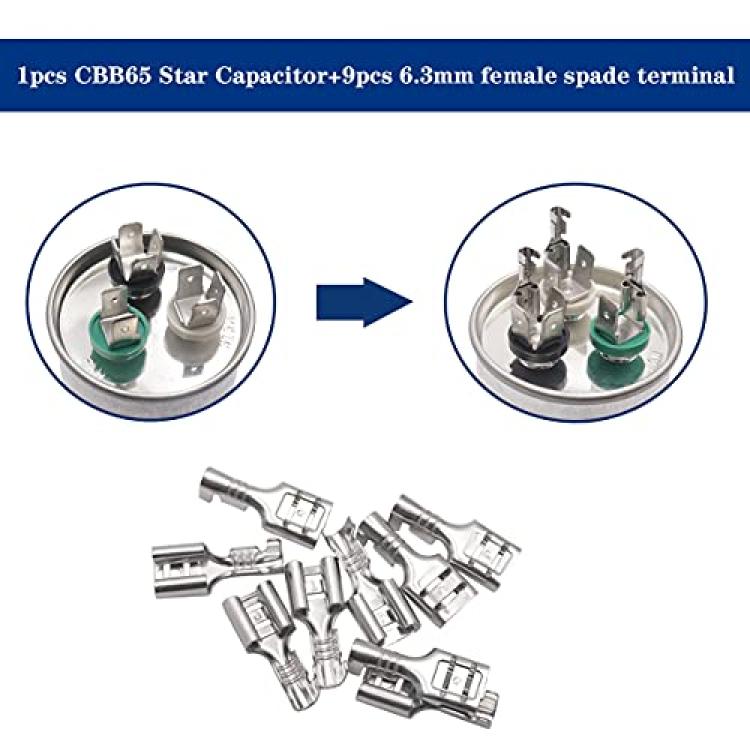

*Package Content: 1 Pcs x 45+5uF CBB65 Capacitor + Convenient wiring with 9 Pcs 6.3mm spade terminal
Description
Product Name: Dual run circular start capacitor
Model: CBB65
Rated Capacitance: 45+5uF;
Tolerance: ±6 %;
Rated voltage: 370V/440V AC
Frequency: 50 / 60Hz
Safety rated: 10,000 AFC
Dielectric Material: metallized polypropylene film
Operating temperature: -40 ? to +70?/-104?to+158?

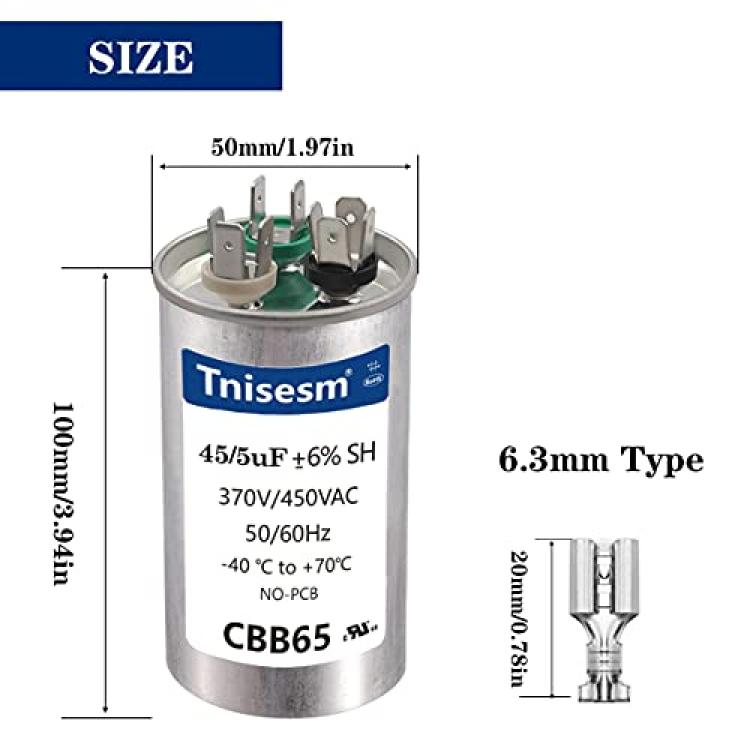

Capacitor dimension: 50mm/1.96" × 100mm/3.93"(D*H)
This capacitor is used for start-up and operation of AC motors with frequency of 50Hz/60Hz such as Industrial Grade Replacement for Central Air Conditioners, Heat Pumps, Condenser Fan Motors, and Compressors.It is small in size, lightweight, heat resisting and anti-explosion.
