DC Motors DC35wDS High Torque RC Servo Motor w Full Metal Gears 486lbs 35Kg Control Angle 180 Waterproof Rustproof Aluminum Coreless Steering Servo
Availability: Pre-Order, Inquiry Price
About this product
*✅ Strong Aluminum Chassis RC Servo 486lbs 35kg at 7.4v Fits All Standard Sized Servos
*✅ Coreless Motor will React Faster and with MORE Torque than ANY Other Brushless Servo Motor in Dry or Wet Conditions

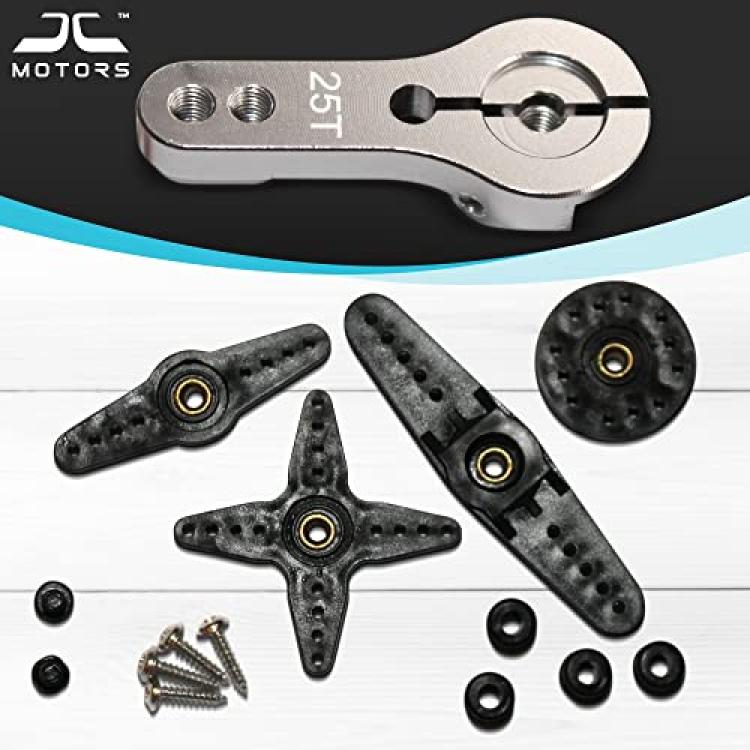

*✅ Stainless Steel Servo Arm 25T and Other Useful Accessories Included

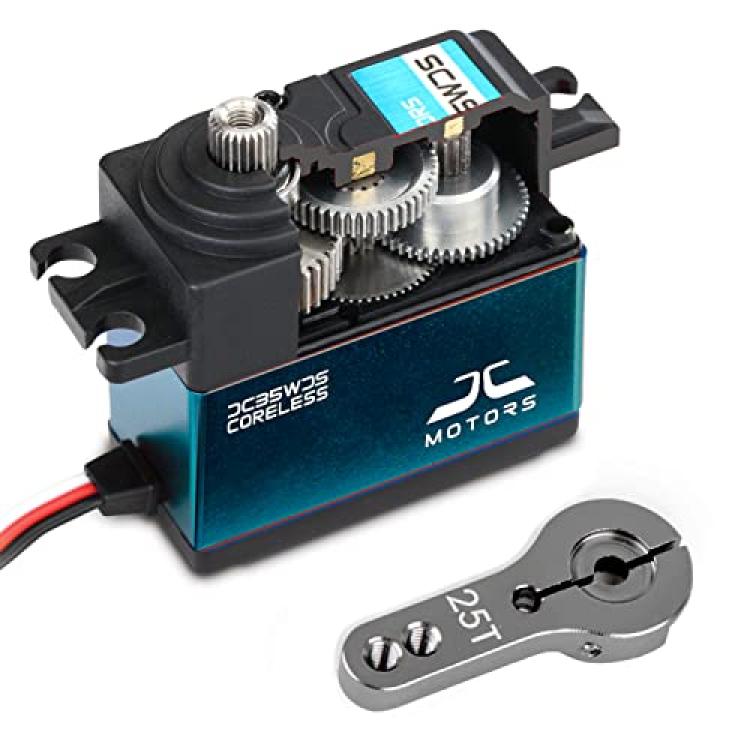

*✅ Metal Gear Bearing Structure High Performance RC Servo Motor for any RC Car, Boat, Plane or ARDUINO Robot Project

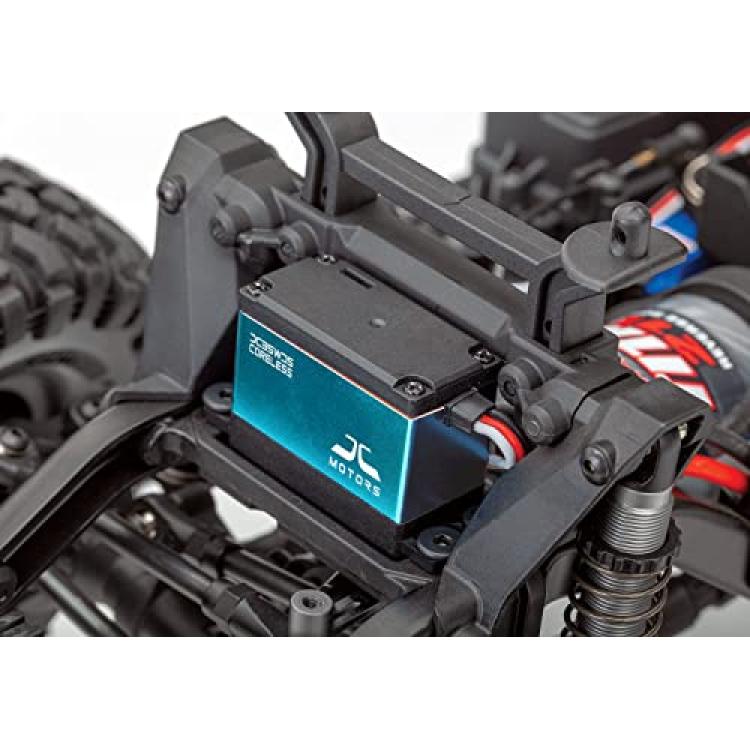

*✅ Digital Control Angle 180 Degrees, Fits RC Crawlers such as the TRAXXAS TRX-4 or the AXIAL CAPRA 1.9. In Retail Box.
Description
DC Motors Servo Motor DC35wDS DC Motors Servo Motor 486lbs 7.4v Coreless Motor with Metal Gears DC35wDS High Torque Digital Coreless Servo Motor for RC Vehicle Boat Plane Robot Specification: Operating voltage range: 5-7.4V Operating speed: 0.13sec/60 degree @5.0V Operating speed: 0.12sec/60 degree @6.0V Operating speed: 0.11sec/60 degree @7.4V Stall torque: 29kg/cm @5.0V Stall torque: 32kg/cm @6.0V Stall torque: 35kg/cm @7.4V Stall current(at locked): 1.9A @5.0V Stall current(at locked): 2.1 [email protected] Stall current(at locked): [email protected] Control System: PWM(Pulse width modification) Pulse width range: 500~2500 µsec Neutral position: 1500µsec Running degree: 180° (when 500~2500 µsec) Dead band width: 3 µsec Operating frequency: 50-330Hz Rotating direction: Counterclockwise (when 500~2500 µsec) Gear ratio: 373 Bearing: Double bearing Connector wire: 17.7inches(450mm) Motor: 3-pole(s) Waterproof performance: IP66 CE/RoHS:Yes Package: 1 x DC35wDS Coreless Digital Servo 1 x 25T Adjustable Metal Servo Arm 1 x set of accessories (as shown as picture)
