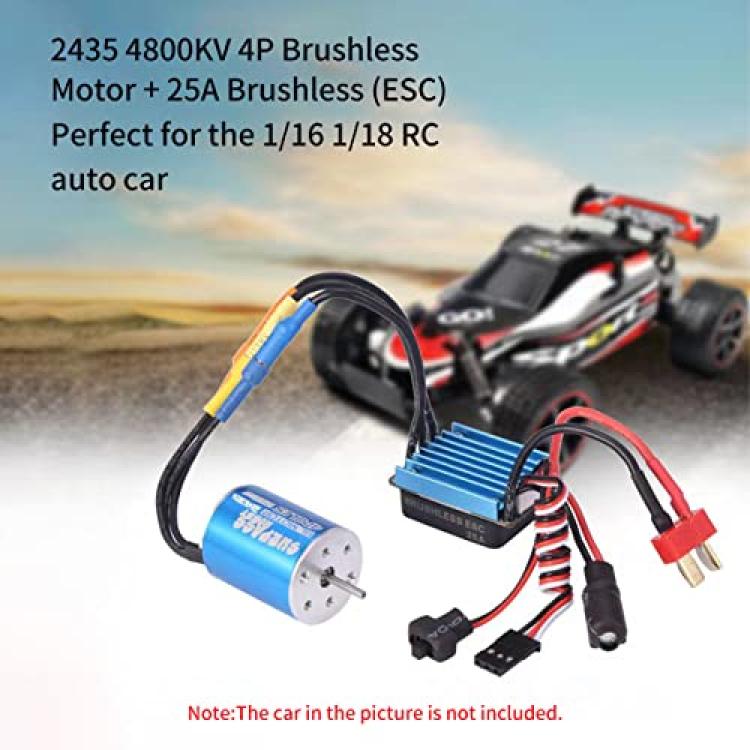

YOUQUKEJI 2435 4800KV 4P Sensorless Brushless Motor with 25A Brushless ESC Electric Speed Controller for 1/16 1/18 RC Car Truck
Availability: Pre-Order, Inquiry Price
About this product
*2435 Motor material: 4-pole 12-slot high-torque, 3.5mm gold-plated connector 2.0mm shaft, CNC machined blanks, 6061-T6 aluminum heat sink, secondary oxidation treatment, high-end and exquisite appearance
*25A ESC parameters: motor plug: 3.5mm female bullet connector; power plug: T male, burst current: 100A; BEC output: 5V/2A; suitable for 2s lithium batteries
*Features: High-purity copper windings can maximize efficiency, high-speed ABEC5 oversized bearings. Precisely balanced rotors and smoothness can achieve the best reliability and maximum RPM. Removable/replaceable rotor
*Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heatprotection / Throttle signal loss protection / Motor blocked protection/
*Widely compatible: universally applicable to 1/18 1/16 brushless cars-multi-installation system for M2.5 screws.
Description

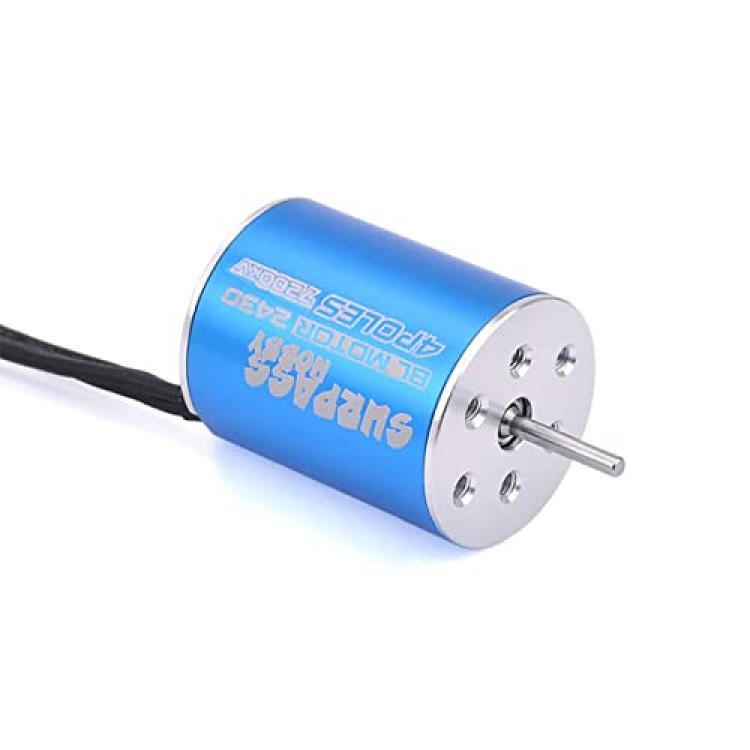

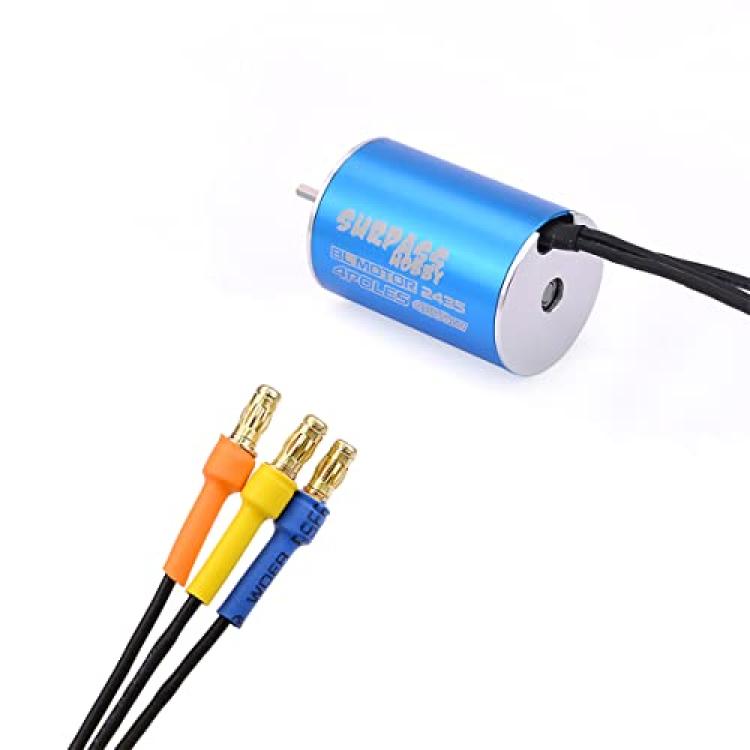

2435Motor Features:
1.4-stage 12-slot high torque motor design.High-purity copper coil for maximum performance and
2.CNC machined6061-T6 aluminum heat sink, temperature resistance of 180-200°
3.High-speed ABEC5 ultra-durable sealed bearing with low friction, low noiseÂ
4.3.5mm gold plated connector 2.0mm shaft,Compatible with most brands in the market 1/16 .1/18 car.Multi-install style with M2.5 screws
5.High-balanced explosion-proof rotor, high smoothness, high accuracy and high speed, dynamic balance control within 10mg, and later removable and replaceable
6.Ultra-thin silicon steel sheet: excellent performance, high magnetic permeability, high silicon content, good insulation and heat resistance
7.Motor with precision waterproof design for maximum power conversion
25A ESCFeatures:
1. Specially designed for RC car with excellent start-up, acceleration and linearity features
2. Compatible with sensorless brushless motor.The strong resistant current capability, excellent heat dissipation
3. Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heatprotection / Throttle signal loss protection / Motor blocked protection
2435 motorSpecification:
Max Amps: 24A / KV(RPM/Volt): 4800KV
Max voltage: 12.6V(2S)
IO:2.0A
Max RPM: 60000
Resistance:0.006
Max Watts: 300W
Can Diameter: 24mm/ Can Length:35mm / Shaft Diameter: 2mm Shaft Length: 12mm
Bullet Connector: 3.5mm
Weight: 60g
25A ESC:
Burst Current: 100A
Battery: 2 Cell Lipo / 4-6 Cell NiMh
BEC Output: 5V/2A
Power Supply Plugs: T Male
Motor Plugs: Female 3.5mm Bullet Connector
Resistance:0.004 ohm
Size: 25*30*14.5mm / Weight: 30g
Package:
1 * 2430 7200kV brushless motor
1 * 25A ESC
