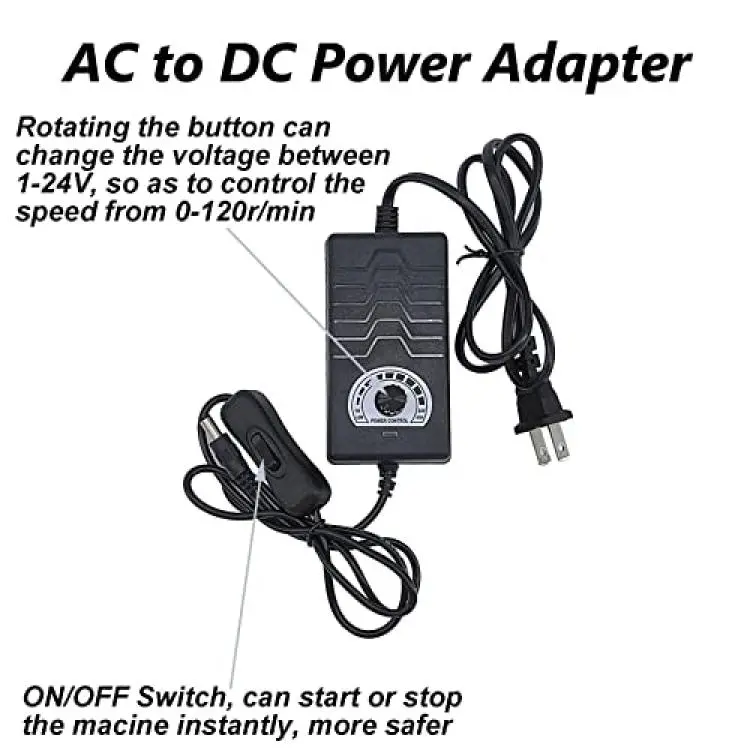

JQDML DIY Cycle Reciprocating Linear Actuator Motor DC 24, Adjustable Stroke 1.2“ to 6.5", Variable Speed from 2-120rpm, with Power Adapter to Control The Voltage and Speed,JQ-RL-WW11

About this product

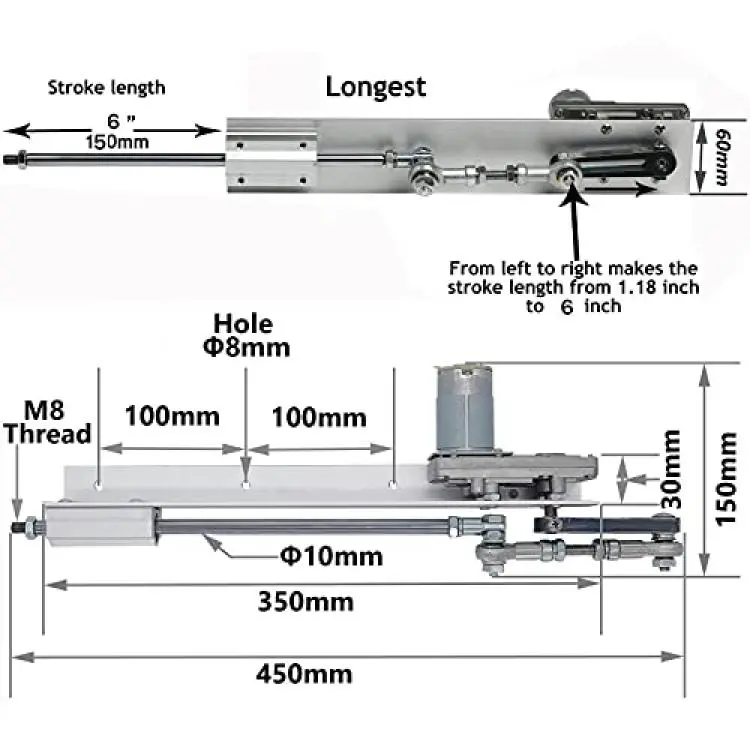

*【Specification】: Stroke: 1.2inch-6.5inch (Adjustable); No load Speed:12-120RPM(Variable); Rated Voltage: DC24V. Under the same 24V voltage, the closer to the axis, the greater the pushing force. The maximum pushing force is 7.5kg. The pushing force will be reduced by about half every 1 centimeter of movement outside the axis.

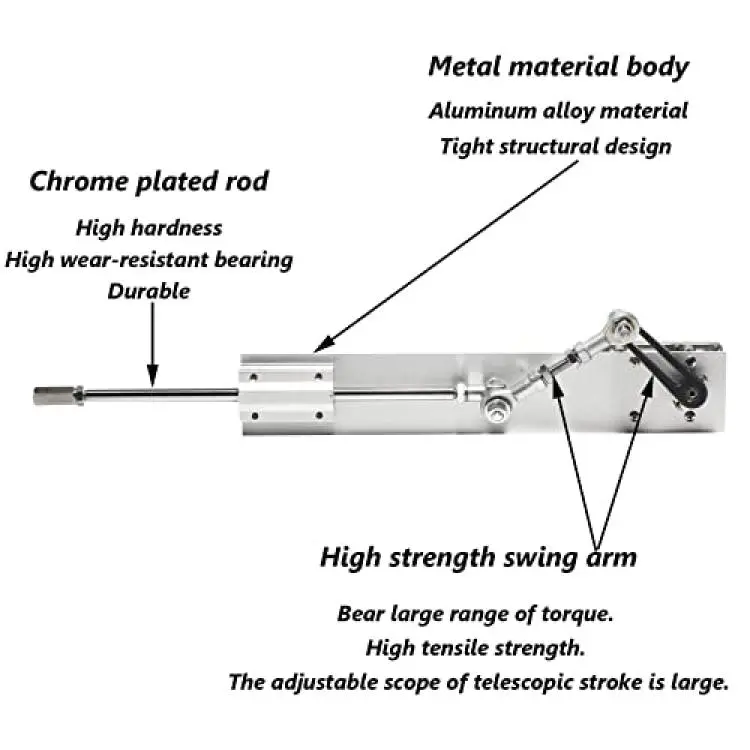

*【Aluminum Alloy Material】: The surface has been polished 27 times, the aluminum body efficiently dissipated the DC motor heat, it can make the motor stays cool to the touch even under load.

*【TORQUE】: When the Rocker Arm is Closest to the Axis AND voltage is 24V, the maximum pushing force can reach 15 lbs. However, with the decrease of voltage and the Rocker Arm is Far Away from Axis, the Torque will be smaller.The minimum torque is 3.2 lbs.

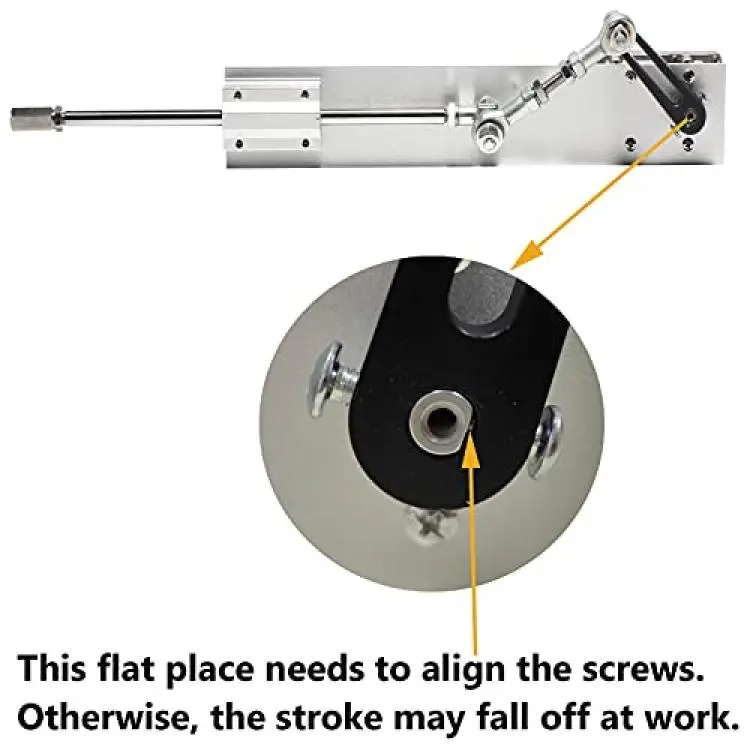

*【Stroke Adjustable】: The stroke can be adjusted by changing the position of the screw on the slide rail. The stroke of this product can be adjusted according to the needs of users.

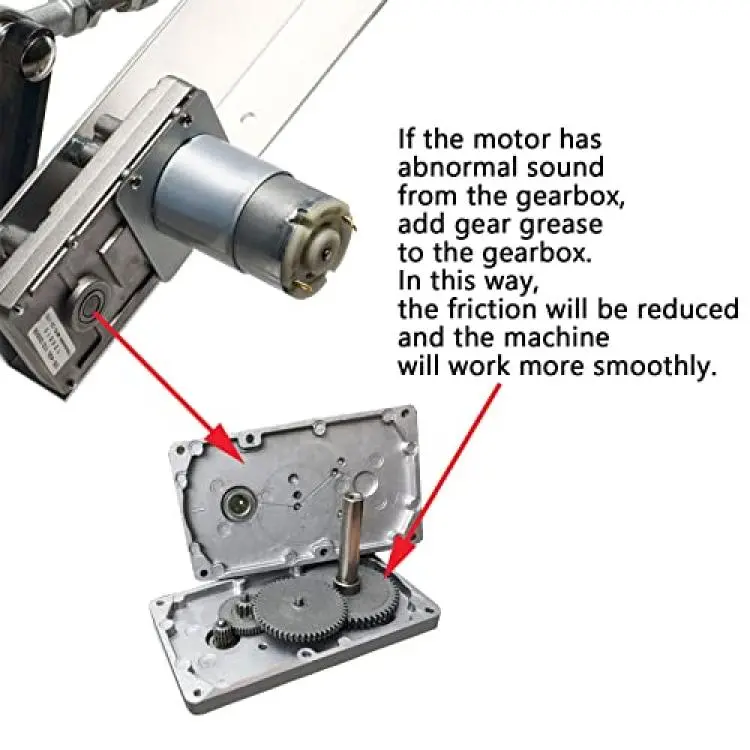

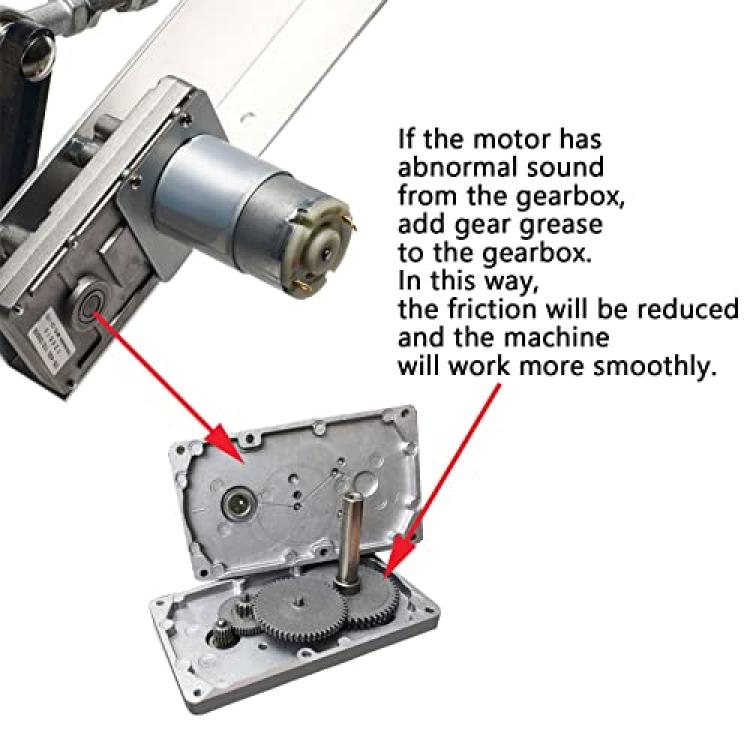

*【Metal Gear Reduction Box】: All metal gear, you could use gear grease in the gear reduction box. In this way, the friction will be reduced and the machine will work more smoothly.
