JQDML DIY Cycle Reciprocating Linear Actuator Motor DC 24, Adjustable Stroke 1.2“ to 6", Variable Speed from 2-120rpm, Power Adapter, Remote Controller, Stand Kit, JQ-RL-YY11M8

About this product

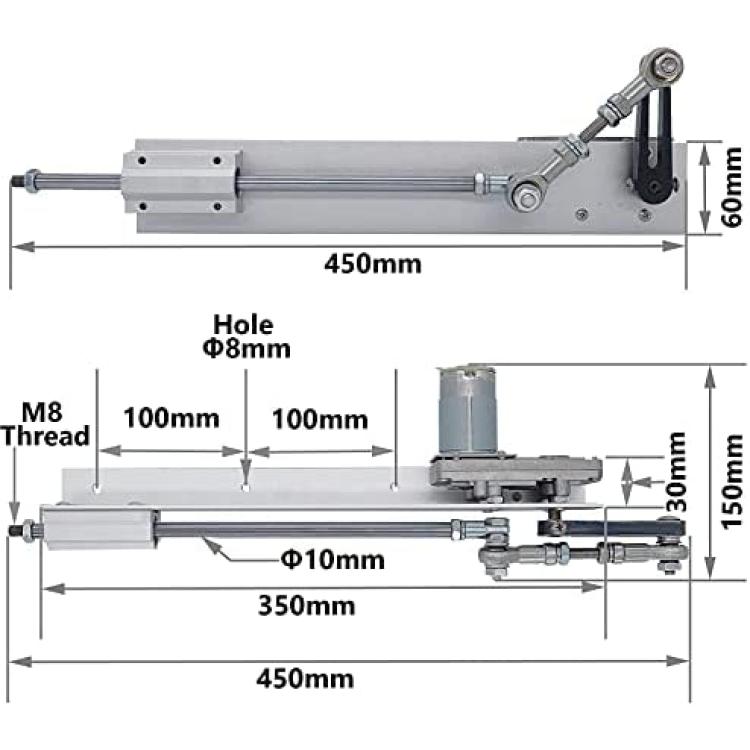

*【Basic information】: Stroke adjustable from 1.2 inch to 6 inch . Rated Voltage: DC 24V. Variable Speed from 2 to 120RPM.with Remote Controller ,DC Adapter and Stand Kit.

*【TORQUE】: When the Rocker Arm is Closest to the Axis AND voltage is 24V, the maximum pushing force can reach 15 lbs. However, with the decrease of voltage and the Rocker Arm is Far Away from Axis, the Torque will be smaller.The minimum torque is 3.2 lbs.

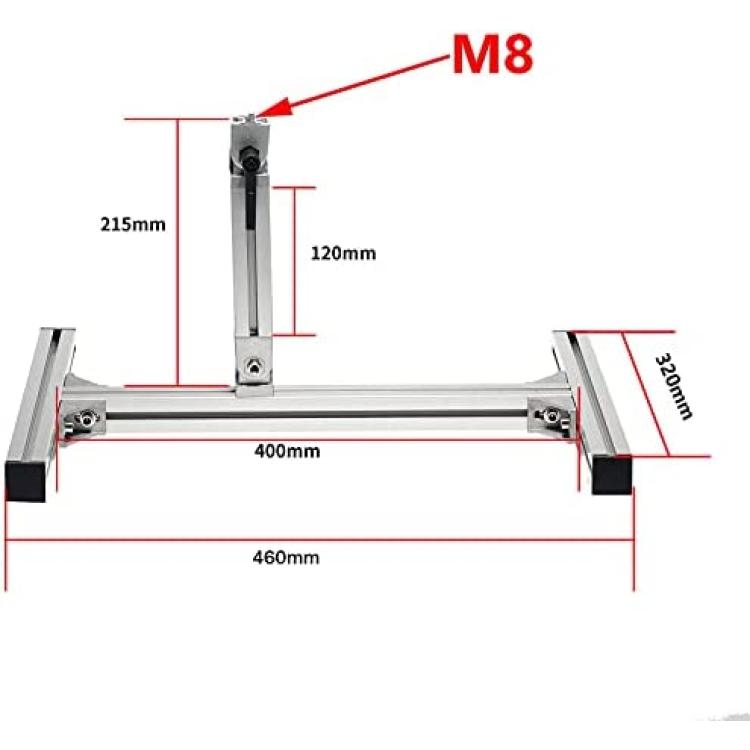

*【M8 STAND KIT】: The top screws diameter of the stand kit is 8mm,which makes it Stronger than the 6mm. Bracket Made of Aluminum alloy, very sturdy construction inside and outside.There are multiple connection points and screw adjustment, which can meet multiple needs of various angles

*【SPECIFICATION】: The stroke of this product can be adjusted according to the needs of users. At the same speed, the longer the stroke, the smaller the torque; When the stroke is the same, the faster the speed is, the smaller the torque is.

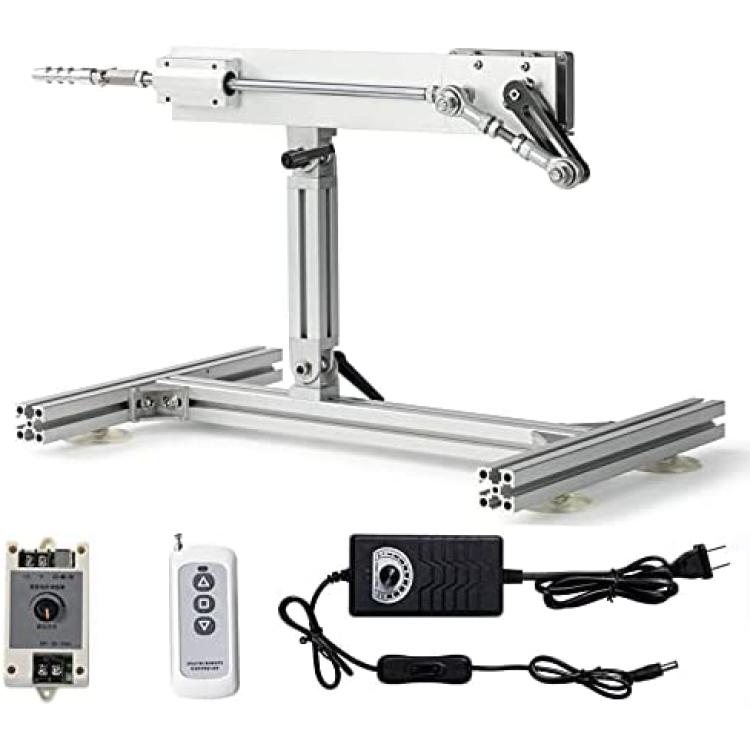

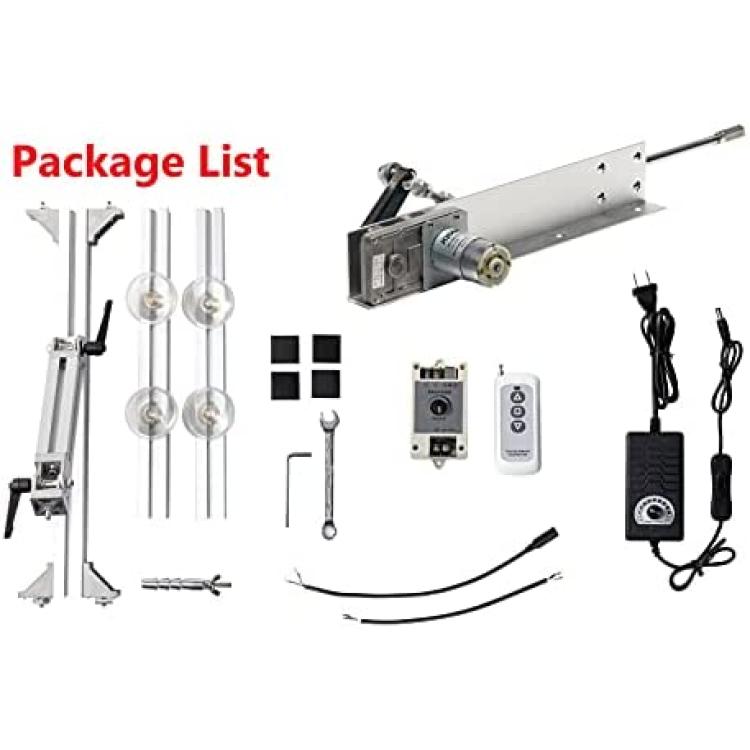

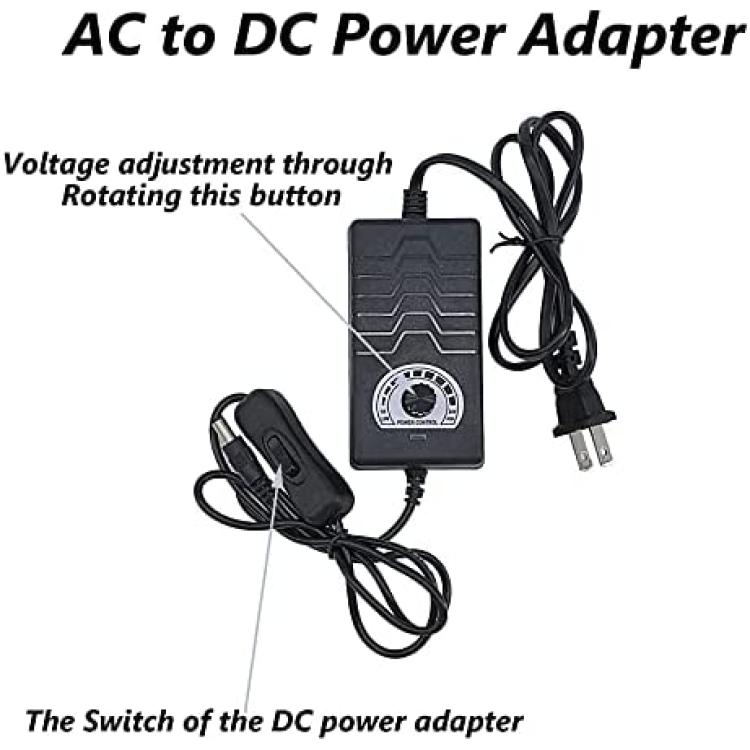

*PACKAGE INCLUDE: 1PC Reciprocating Gear Motor, 1PC DC Power Adapter with Speed Regulation, 1PC End Connector, 1PC Wireless Remote Control, 1 PC Stand Kit.
