NEW 3.7 HP Compressor Duty Electric Motor, 3450 RPM, 56 Frame, 5/8

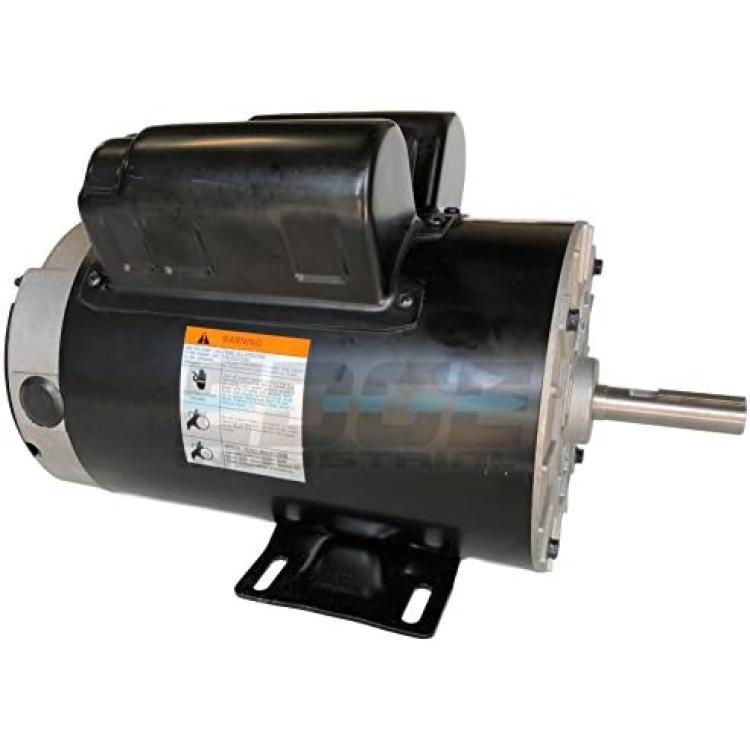

NEW 3.7 HP Compressor Duty Electric Motor, 3450 RPM, 56 Frame, 5/8" Shaft Diameter, 17.2 FLA at 230 VOLT

Name: NEW 3.7 HP Compressor Duty Electric Motor, 3450 RPM, 56 Frame, 5/8 Shaft Diameter, 17.2 FLA at 230 VOLT
Brand: ‎EMZ
SKU: MM58
Availability: InStock

Brand: ‎EMZ
Product Code: MM58
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*3.7 HP - 1 PHASE - 56 FRAME - 3450 RPM - 230VAC - 5/8" SHAFT

*THIS 3.7HP MOTOR WILL REPLACE 5HP SPL MOTORS RATED 15-17 FLA AT 230VOLTS

*CAPACITOR START AND CAPACITOR RUN CONTINUOUS DUTY COMPRESSOR MOTOR

*Amperage (17.2 FLA AT 230V), Voltage: 230V (NOT SUITED FOR 208V INCOMING)

*CCW (COUNTER CLOCKWISE ROTATION) WHEN VIEWED FROM SHAFT END.

Description

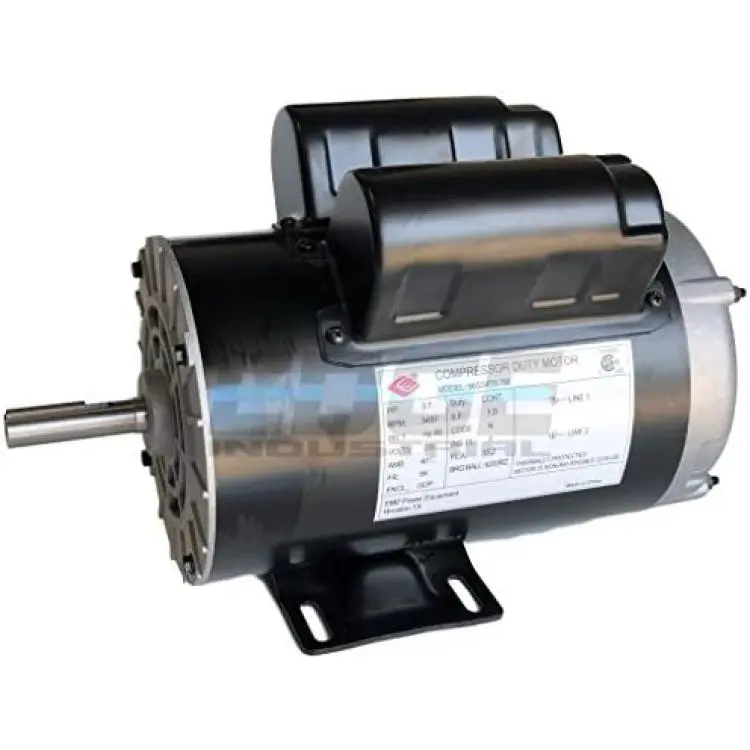

3.7 HP - 1 PHASE - 56 FRAME - 3450 RPM - 230VAC - 5/8" SHAFT ELECTRIC MOTOR FOR BELT DRIVEN AIR COMPRESSORS CONTINUOUS RUB COMPRESSOR DUTY MOTOR. ODP (OPEN DRIP PROOF FOR DRY INDOOR ENVIRONMENTS) Full Manufacturers Warranty Technical Note:: Please make sure you correctly match the FL amp rating on the motor you're replacing. This is a 3.7HP 56frame 17.2 FLA @ 230V. Please double check the motor you're replacing matches the amperage and frame size of this motor. THIS MOTOR WILL REPLACE 5HP SPL MOTORS WITH A FLA (FULL LOAD AMP) RATING OF 15 THRU 17 AMPS AT 230V. Technical Info: Horsepower: 3.7HP (Actual HP) Amperage: 17.2 FLA AT 230V Phase: One / Single Phase Voltage: 230VAC (NOT SUITED FOR 208V INCOMING) RPM: 3450 Frame: 56 Shaft Diameter: 5/8" Keyed shaft Shaft Length: 2 1/16" Rotation: CCW WHEN VIEWED FROM SHAFT END Frequency: 60hz Service Factor: 1.0 Enclosure: ODP / Open Drip Proof Overload: Yes / Manual reset button Weight: 46 lbs Warranty: 1 Year WIRING SCHEMATIC FOR 230V SHOWN ON ATTACHED PIC OF MOTOR NAMEPLATE.

Tags: Compressor Motor, 3.7 HP Motor, 56 Frame Motor, 3450 RPM Motor, 5/8" Shaft Motor, 230V Motor, Compressor Motor Replacement, Open Drip Proof Motor, Motor Warranty, Industrial Motor, SPL Motor Replacement
