2 hp 3450 RPM 56Y Frame 208-230V Square Flange Pool Motor US Electric Motor # ASB843
About this product
*2 HP 3450 RPM, 10.0 amps, 208-230V 60hz.
*Automatic Overload Protection - Service Factor 1.30
*Non-Reversible - CCW Rotation facing the shaft
*Open Drip Proof - Ball Bearings

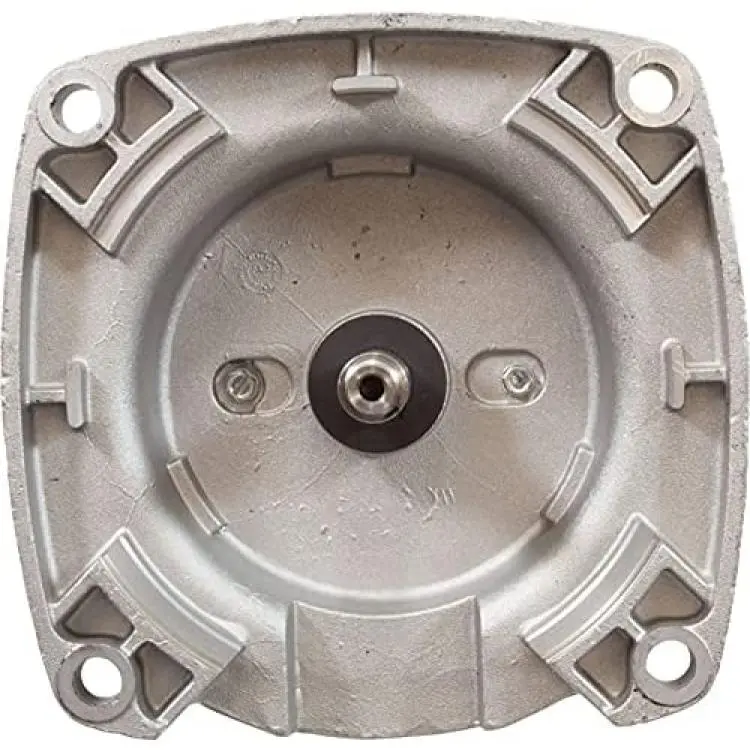

*56Y Frame-Square Flange; 5/8" diameter threaded stainless steel shaft
Description
56Y Square Flange replacement pool motor. This is the Energy Efficient model. Motor is found on many in ground pool pumps such as PacFab Challenger, Whisperflo, Pentair. Motor has a square type flange for mounting the pump. 4 non-threaded bolts holes in flange. 1 year manufacture warranty. Replaces Century B843, B2843
