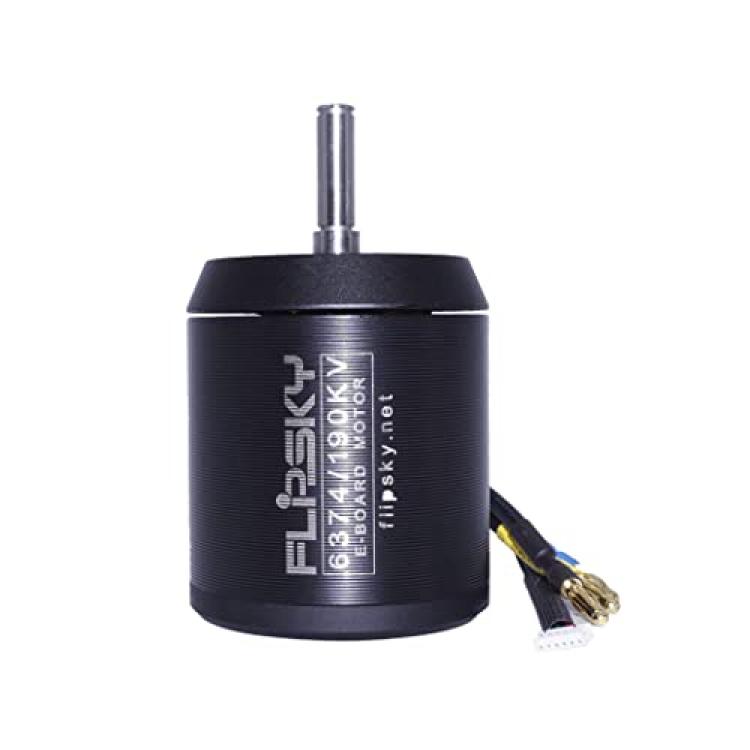

Flipsky BLDC Belt Motor 6374 190KV 3250W for Electric Skateboard with Hall Sensor Dustproof Brushless Motor DIY Electric Skateboard
Availability: Pre-Order, Inquiry Price
About this product
*【Excellent performance】Each motor handled 70a peak with 20-30a average with load no problem.
*【Wheel customizability】Can be used in DIY Electric Skateboard Electric Bike 、Surfboard ,ect.
*【Strong power】Great 8Nm torque and speed, Smooth power accelerates.
*【Powerful system】 The Max Output Watt is 3250W, Max Current: 85 Amps,Max Volts: 12S .Recommend ESC is 3-12S 50A (eFSESC4.12 50A or FSESC 6.6 60A)

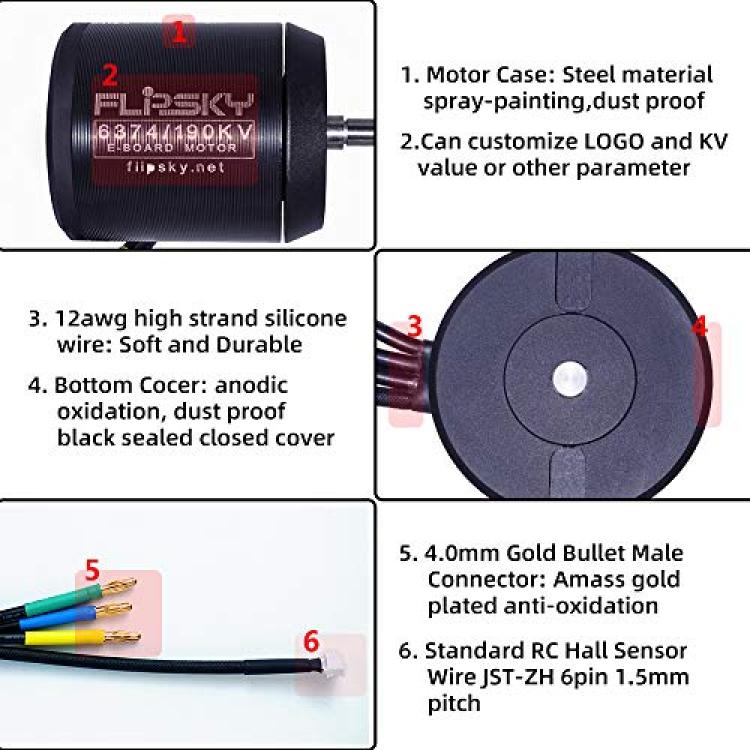

*【Decend design】Good finishing on the whole outer body to Enable Motors Dustproof , with sturdy shaft & Lamination Japan steel startor, used 12awg high strand silicone wire with 4.0mm gold bullet connectors.
Description
Max Power: 3250 Watts
Max Current: 85 Amps
Max Volts: 12S
Max Torque: 8Nm
Motor Resistance: 0.05Ohm
Recommend ESC: 3-12S 50A (FSESC4.12 50A or FSESC 6.6 60A)
Weight: 1.9 lb / 0.86 kg
The motor length:74mm
The motor diameter: 63mm
SHAFT: Diameter 8mm, 30mm length, 3x3x20mm keyway slot.
Motor Wire: 130mm silicone 12AWG wire with 4.0mm Gold Bullet Connector Male.
Wire configuration:
Blue = A
Black = B
Yellow = C
Stator: 0.2mm thickness lamination japan steel
Magnet: N42SH high temp curve magnet
BLDC Motor
The number of pole: 14 Sensor Wire: Standard RC Sensor Wire JST-ZH 6pin 1.5mm pitch
Internal PCB with 120 Degree Hall Effect Sensors.
Motor can be used with or without a sensor. Sensorless operation is most common.
