Hobbysky 6374 170KV 190KV Brushless Outrunner Belt Motor Sensored & Sensorless Motor with Closed Cover for DIY Electric Skateboard Electric Bike Surfboard (8mm /10mm Shaft)
Description
Hobbysky 6374 170KV Brushless Outrunner Belt Motor with Closed Cover and Hall Sensor for DIY Electric Skateboard Electric Bike Surfboard (10mm Shaft)
The Hall Sensor Inside Tracks the Motor’s Position. This Information Permits the Controller to Alternate Power with the Right Timing and in the Right Sequence .
Specifications:
Brand : Hobbysky
Motor KV ……………………………………170(RPM/V)Â
Shaft…………………………………………10mm

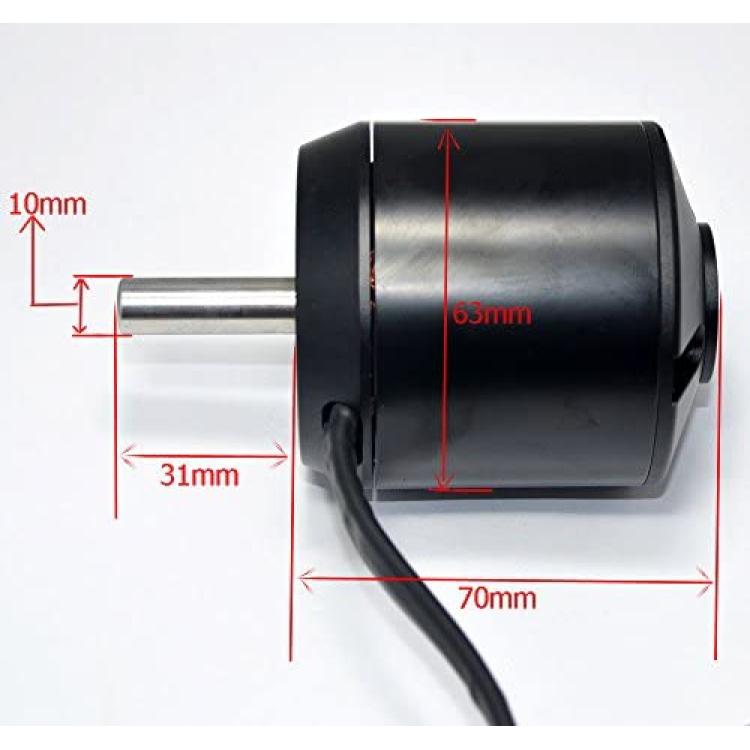

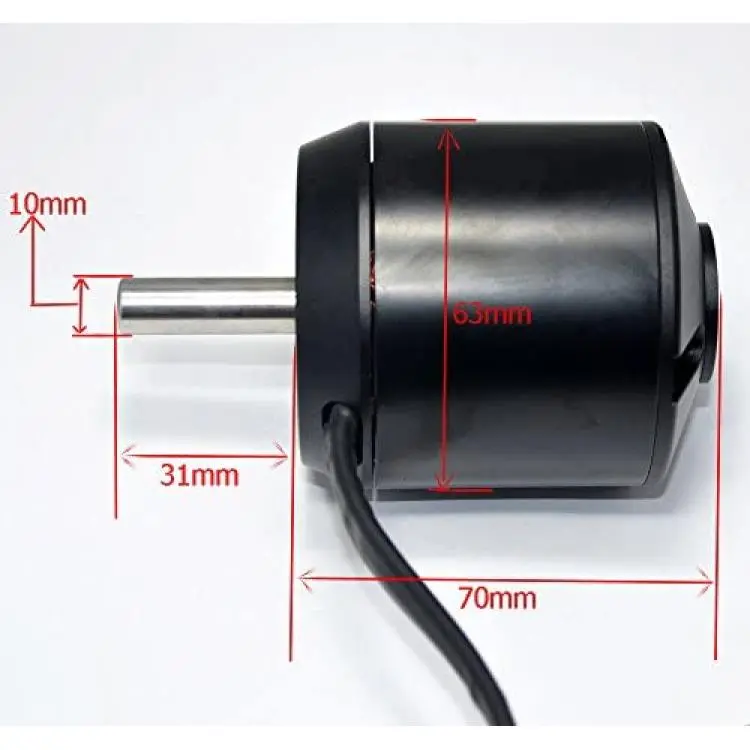

Motor Size…………………………………...?63.0x70.0

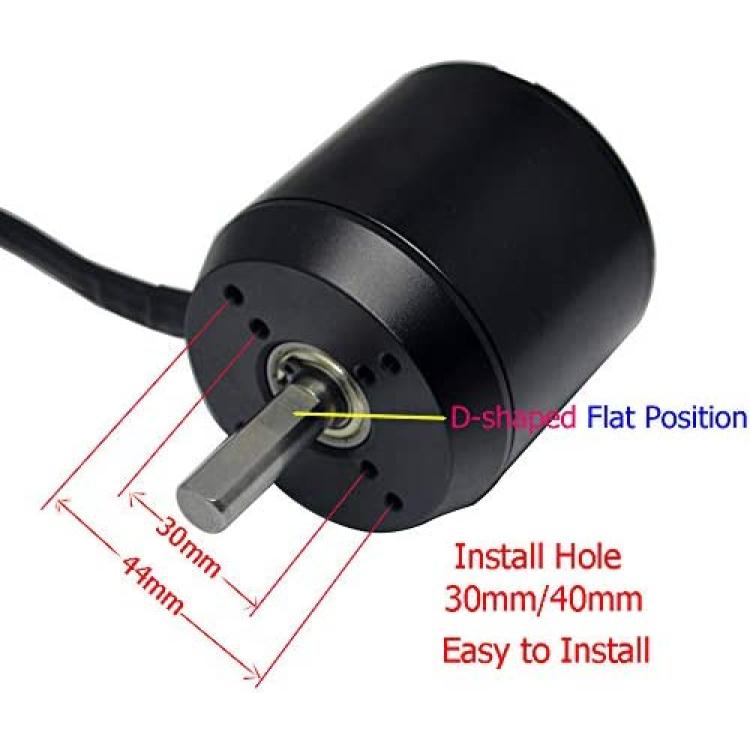

Install Holes ………………………………...30/44mm
Mounting hole size…………………………. M4*4
Motor Wire : 30cm 16AWG Silicone Wire with 4.0mm Gold Bullet Male Connector
Sensor Wire: Standard RC Sensor Wire JST-ZH 6pin 1.5mm pitch
Screws………………………………… M4x8mm Metric Bolts
Rated Voltage …………………………. …. 24V-36V
Rated Current ……………………………...80A
Max. Current…………………………………120A
Max Torque…………………………………..3.57N.m
Input Volt. ……………………………………2-12S Lipo cell
NET Weight …………………………………800g
Max. Output Watt …………………………..3600W
Color : Black with closed cover waterproof and dustproof
Sensor : sensored
Package Includes:

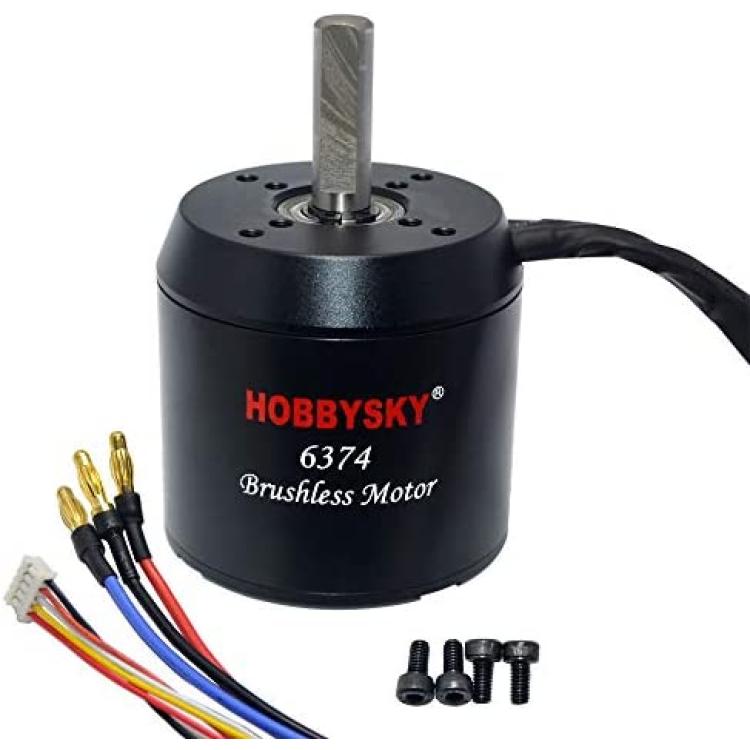

1 x 6374 Brushless Motor
4pcs M4x8mm Metric Bolts
ATTENTION:
1. Please make sure your motor has enough cooling while running.
2. Keep motors away from moisture, dust, scrap and small items to avoid damages.
TIPS:
We welcome OEM orders, KV value, motor color, logo all can be customized.
