GBMQ-GM12BY20 DC 6V 2W Micro Speed Reduction Motor Mini Gear Box Motor with Magnetic Coded Disc Hall Encoder (70RPM)

GBMQ-GM12BY20 DC 6V 2W Micro Speed Reduction Motor Mini Gear Box Motor with Magnetic Coded Disc Hall Encoder (70RPM)

Name: GBMQ-GM12BY20 DC 6V 2W Micro Speed Reduction Motor Mini Gear Box Motor with Magnetic Coded Disc Hall Encoder (70RPM)
SKU: MM5582
Availability: InStock

Product Code: MM5582
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

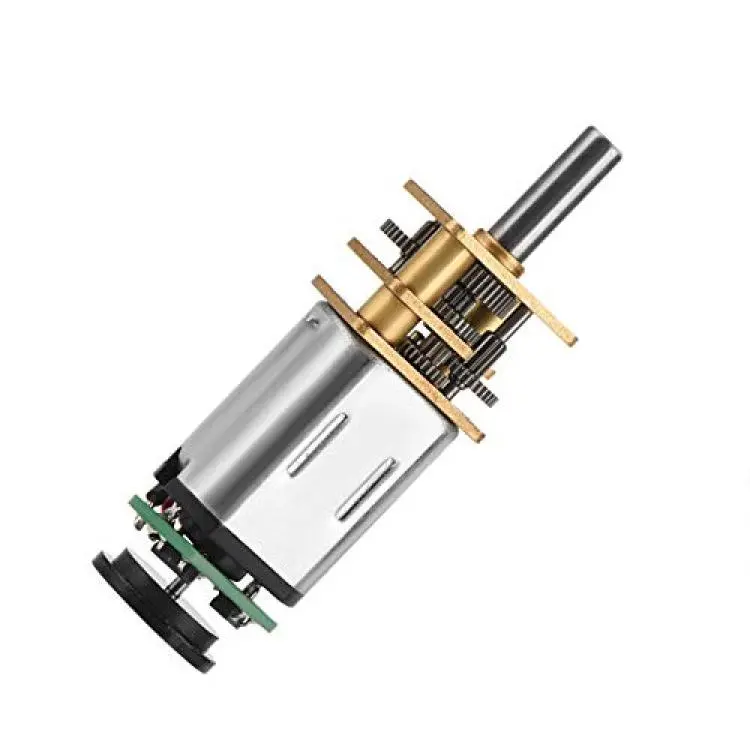

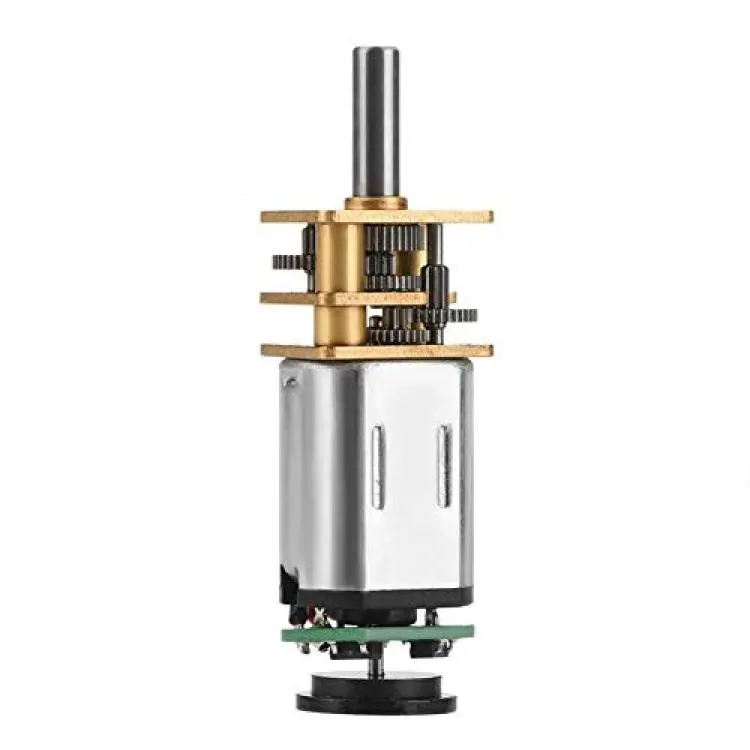

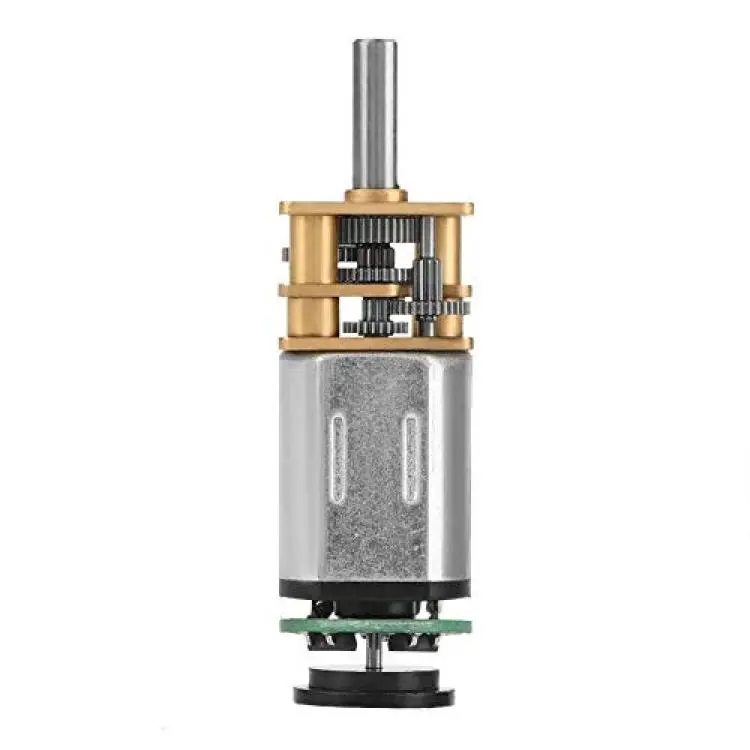

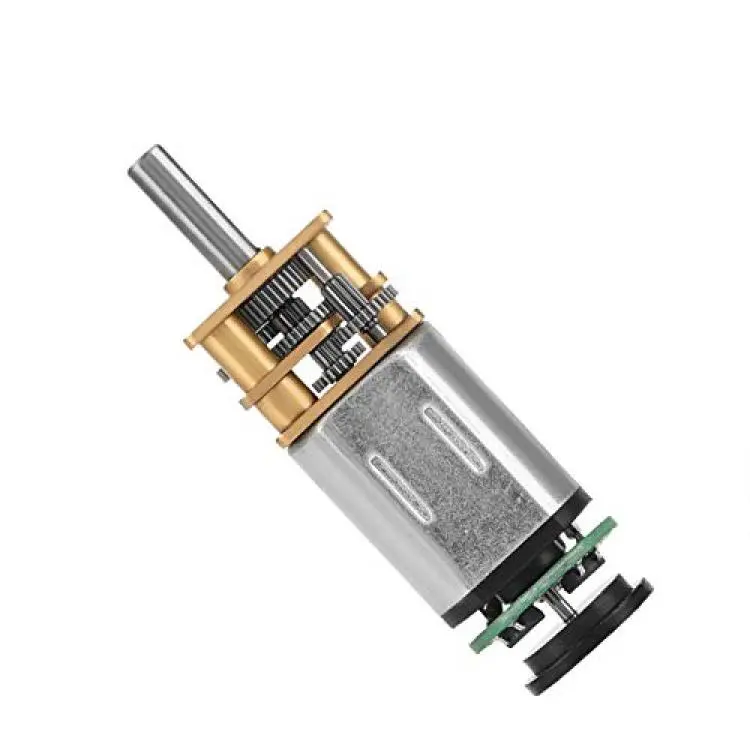

*This product is a DC gear motor with magnetic coded disc hall encoder

*This DC motor features large moment of force, low speed, and low noise.

*The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life.

*This gear motor is adopted of pure copper wire coil, with low heat and low loss.

*Widely used in Electronic locks, DIY toy cars, little robots, tracking cars, balancing cars and so on.

Description

The gear motor adopts full metal structure including mental gear reducer with precise micro gear. This gear motor has large torque and small noise, can be used on electronic locks, intelligent model cars, robots, etc.

Specification:
Model:GBMQ-GM12BY20
Material: metal
Voltage: DC 6V
Power: 2W
Output signal: AB phase
Shaft length: 10mm/0.4in
Shaft diameter: 3mm/0.1in
Hall response frequency: 100KHz
Operating temperature range: -30 ~ 110
Output pulse number: 3ppr
Type (Optional): 6V 30RPM,6V 50RPM,6V 60RPM,6V 70RPM
Length: 4.2cm/1.7in
Weight: 14g/0.5oz

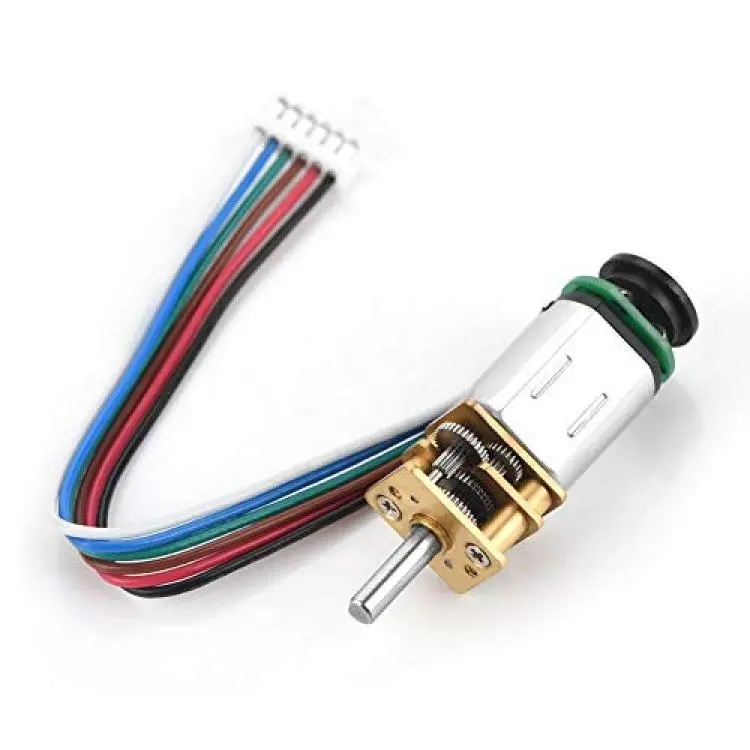

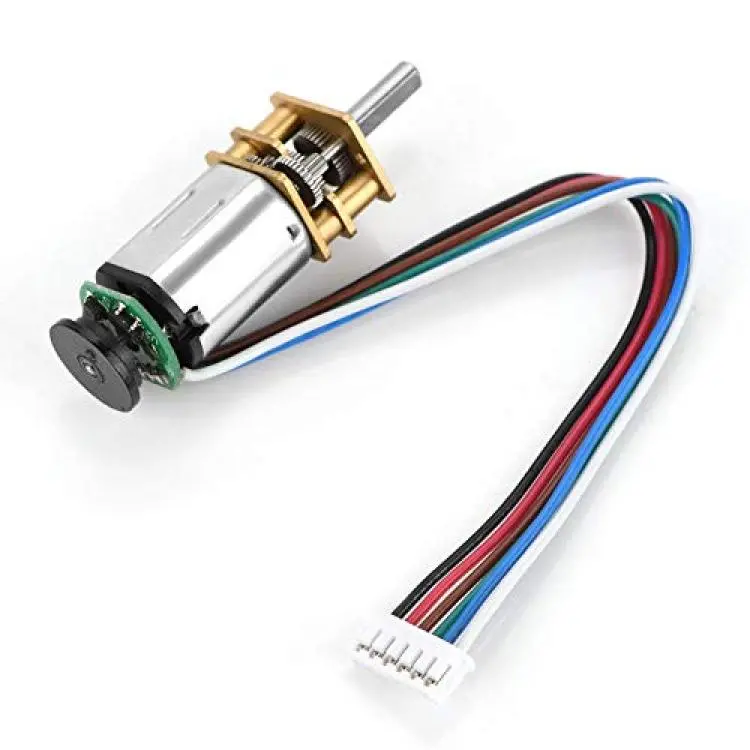

Wiring method:
black: motor power"-"
red: motor power"+"
brown: encode power "+"
green: encode power "-"
blue: encode output A phase
white: encode output B phase
(Note: Encoder input voltage: 3.3-12v)

Package list:
1 x gear motor

Tags: DC Gear Motor, Mini Motor, Gear Box Motor, Hall Encoder Motor, Magnetic Encoder, Speed Reduction Motor, 6V Motor, 70RPM Motor, Electronic Locks, DIY Robot, Miniature Motor, GBMQ-GM12BY20
