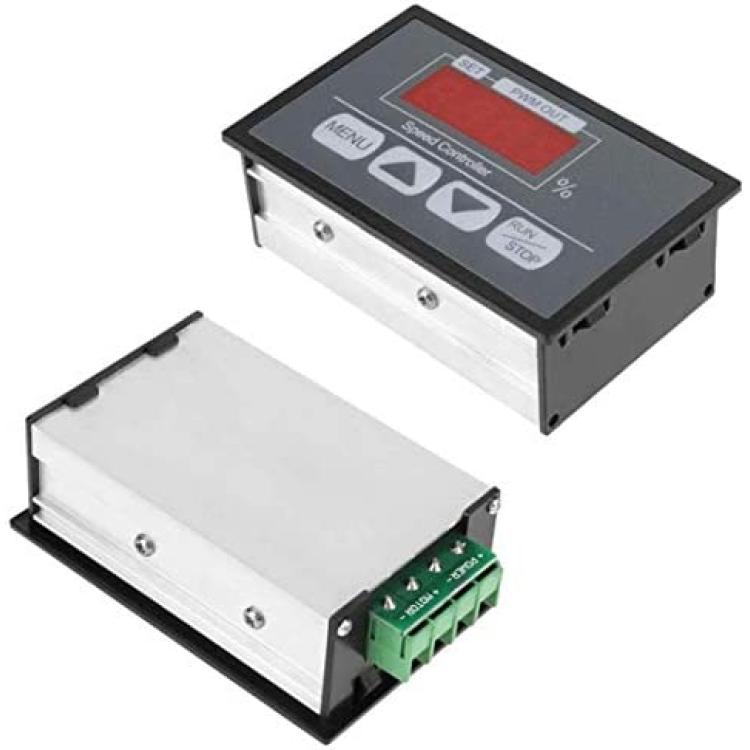

ICQUANZX DC6-60V DC PWM Motor Speed Regulator Power Controller with LED Digital Display, Slow Start/Stop Revolving Speed Time Adjustable
About this product
*Input supply voltage: DC 6V-60V;Output current: 0-30A ;Continuous current: within 20A;Speed range: 0 - 100%
*This is a simple and easy-to-use DC motor speed controller of small size, elegant appearance and stable performance.

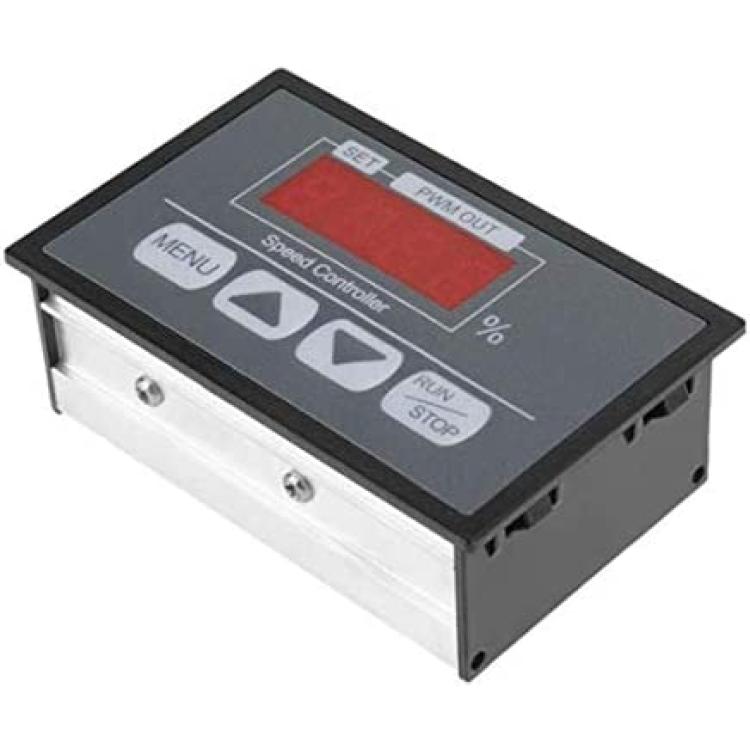

*Designed with a digital display panel for easy reading and convenient setting of speed adjustment.
*DC Motor Controller can set the time of DC Motor Slow Start and Stop, revolving speed time adjustable, easy to operate,which reduces the mechanical stress on the motor and shaft.
*Acceleration and deceleration value setting: Each time you press the plus or minus button, the speed changes by 1%, 2%, 5%, 10%, 15%, 20%, 25%.
Description
Specifications:
Input voltage: DC6-60V
Output voltage: linear under load
Output current: 0-30A
Continuous current: within 20A
Speed control mode: jog + -
Speed regulation range: 0-100%
Control frequency: 21KHZ

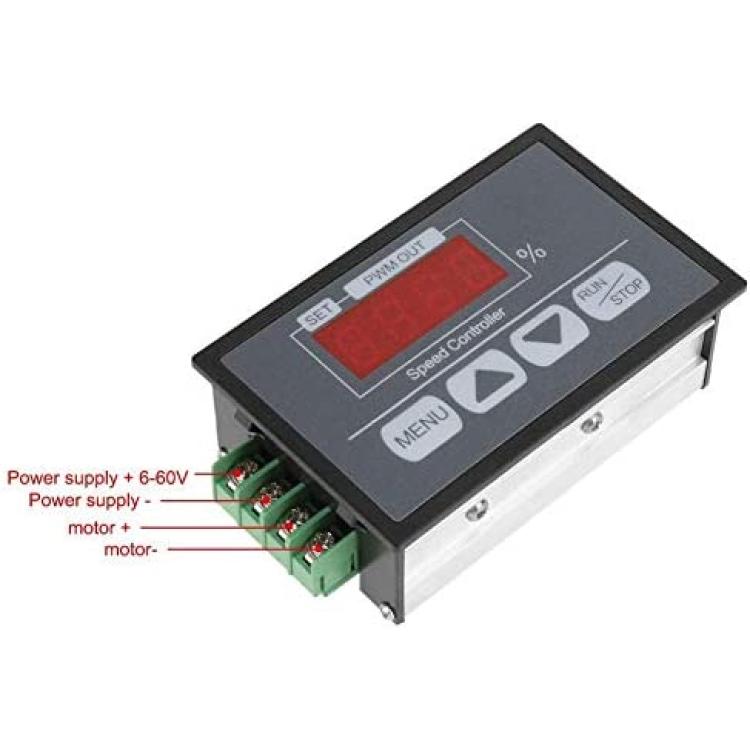

Type of connection: Barrier terminal
Support motor: brush motor
Significant speed: 0-100%

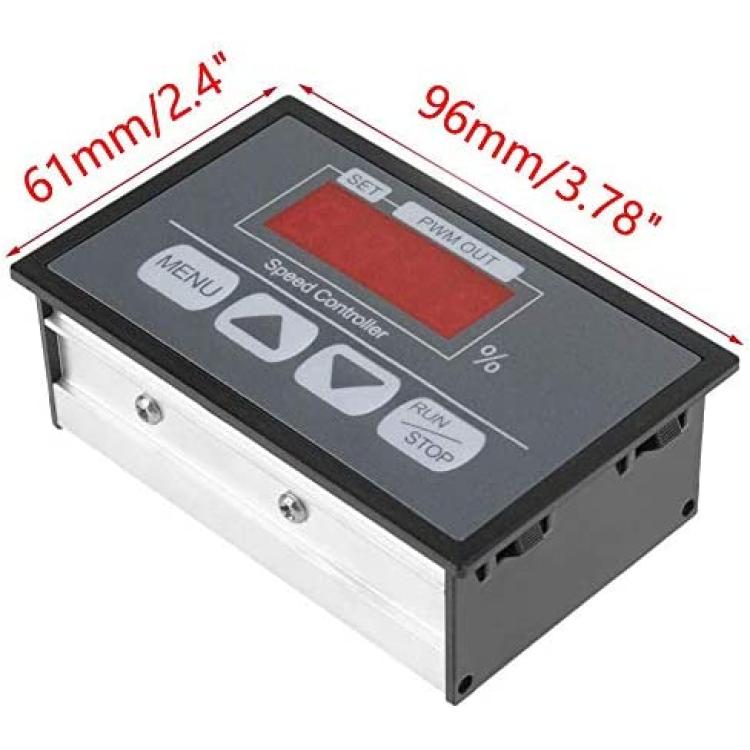

Panel Dimensions:96mm*61mm*34mm(L*w*h)
Detail:
1.PWM DC Motor Speed Controller 0-100 Digital Display Stepless Speed Regulation Drop Ship
2.Slow start time setting: 000 - 100 Slow start to 100% speed time is adjustable between 0-10 seconds The default is 1 second.
3.Slow stop time setting: 000 - 100 The slow stop time is adjustable between 0-10 seconds. The default is 1 second.
4. Lower speed limit setting: 000 - 080 The minimum speed is adjustable between 0-80% and less than the maximum speed setting. The default is 0.
5. Maximum speed setting: 000 - 100 The maximum speed is adjustable between 0-100% and greater than the minimum speed setting. The default is 100%.
6. Acceleration and deceleration value setting: 001 002 005 010 015 020 020 025 Each time you press and decrease the speed, the speed changes by 1%, 2%, 5%, 10%, 15%, 20%, 25%.
Package included:
1 x Motor Controller
