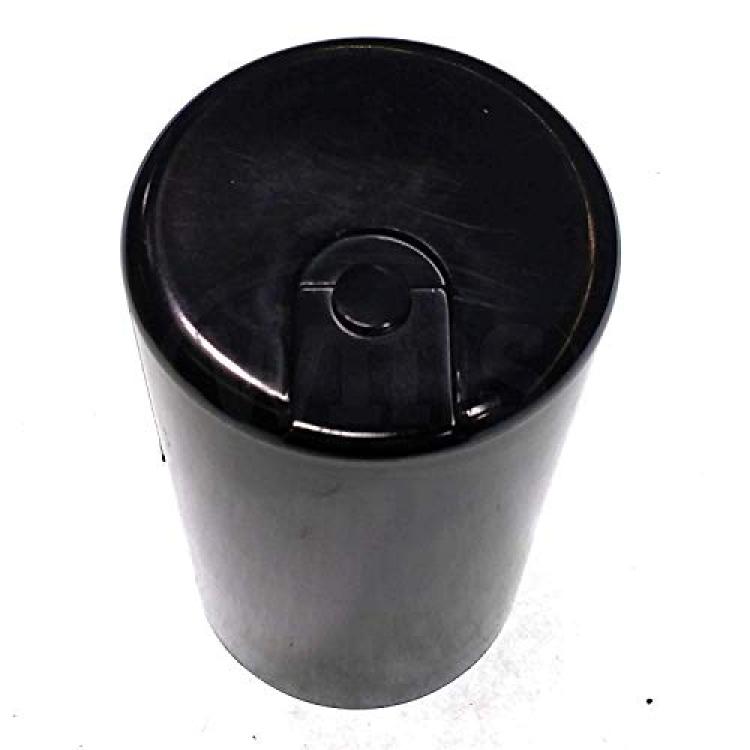

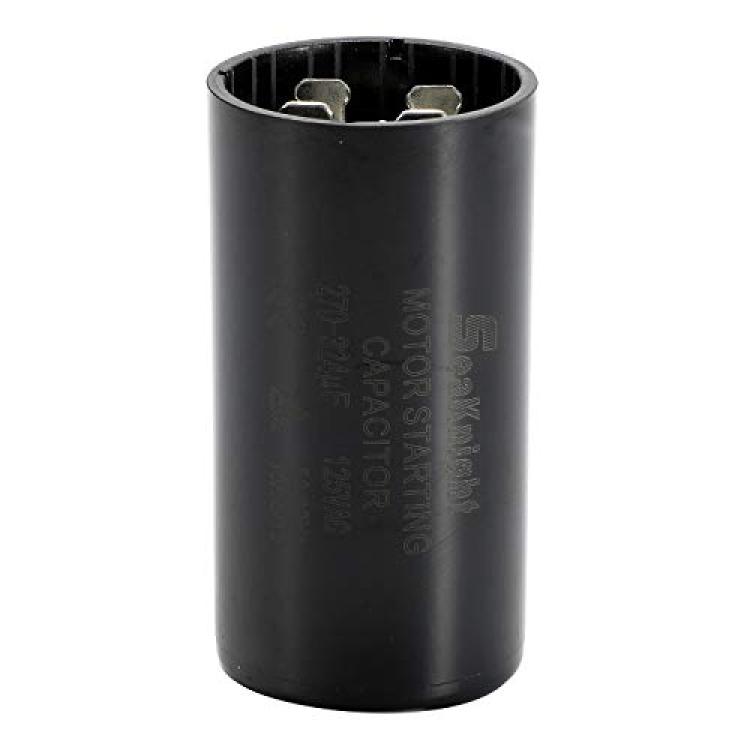

BlueNatHxRPR 270-324 uF MFD Round Start Capacitor Withstand Voltage 110-125 V AC
Availability: Pre-Order, Inquiry Price
About this product
*Production Name: Start Capacitor 270-324 Microfarad, Withstand Voltage:110-125V AC 50/60Hz, Vollume: 270-324 Microfarad,Shape: Round
*Size: 1.437*2.75 in/36*70mm (Diameter * Height),Wide used for 125v single phase motor as start capacitor,such as for pump, water supply,washer,garage door motor etc.
*US style start capacitor,made a rugged phenolic resin body, no PCB inside

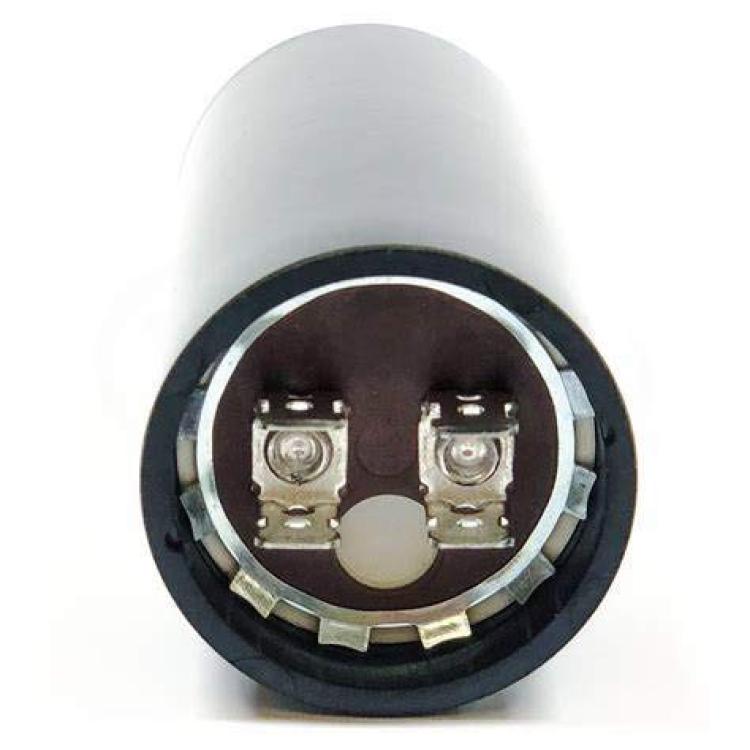

*With 1/4 inch standard(6.3*0.8mm/Width*Thickness) quick connect terminals, each pole has 2 terminal
*Compatible for all old Aerovox , MARS 11019 , JARD 11919 , Global 1019 , CS270X110 Supco , CS270-324X110 Packard PMJ270 , Vanguard BC-270 , NTE MSC125V270 and other Start Capacitors with similar volume and voltage rating
Description
start capacitor 270-324 microfarad
Remark:
1.Normaly single phase motor has 2 capacitors, one is start capacitor, use only start, another is run capacitor, using all the time when motor runs
2.As 220v or 230v single phase motor, run capacitor can be estimated Approximately as C = 0.03* Power(watts) uF
3.As 110v or 125v single phase motor, run capacitor can be estimated Approximately as C = 0.1* Power(watts) uF
4.As start capacitor estimated Approximately, C(start) = (1 - 4)*C(run)
5.Best methods is that just replace with the same size of the origial
6.Normally with same vollume the high withstand voltage capacitor body is bigger than the low one
