FLASH HOBBY King 2004 Brushless Motor 1750KV RC Electric Motor 2~6S for RC Racing Models Multicopter FPV Drone Quadcopter
Availability: Pre-Order, Inquiry Price
About this product

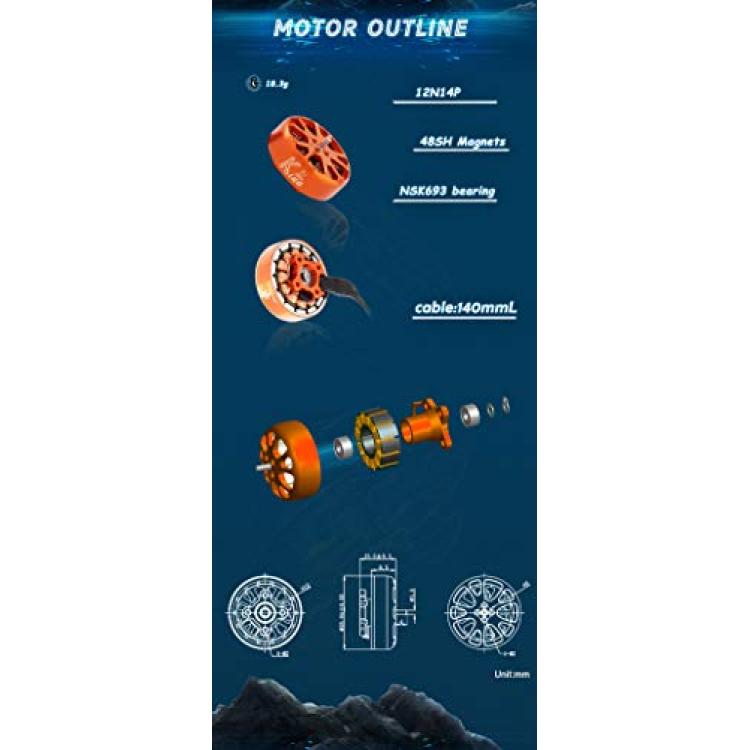

*The King 2004 motor features uni-bell design and adopt NSK bearing, 48SH magnets, motor wire length 24#AWG 113mm
*The stator diameter is 20mm, shaft diameter is 3mm, mounting screw pattern is 12 x 12mm (M2*4), which is compatible with 4~6 inch prop
*1750KV brushless motor is a 2~6S FPV motor, 12N14P high torque motor design, which is widely applied with FPV drone, multicopter, quadcopter and so on
*Each motor has been dynamic balanced, crush-resistant damping bearing, eliminate vibration effectively, very lightweight and durable
*The King 2004 electric motor is a very strong and powerful FPV motor for FPV racing, a great value choice with well known FLASH HOBBY performance
Description
Specification:
weight: 17.4g (including the cables)
Motor Size: 25.64 x 12.5mm
stator Diameter: 20mm
Stator Height: 4mm
Shaft Diameter: 3mm
Mounting Screw Pattern: 12 x 12mm(M2*4)
Configuration: 12N14P
Motor Cable: 24#AWG 113mm
NSK Bearing
6082 Aluminum bell
K2004-1750KV Motor
Max pull : 772g(6S/HQ5030)
lnput Voltage : DC7.4-24V(2-6S)
current:11.08A
suggested ESC: 20A~30A
Maximum Power : 266.8w
suggested Prop:4~6 inch prop
K2004-2100KV Motor
Max pull : 847g(6S/HQ5030)
Input Voltage : DC7.4-24V(2-6S)
current:17.36A
suggested ESC: 20A~30A
Maximum Power : 419.4w
suggested Prop: 4~6 inch prop
