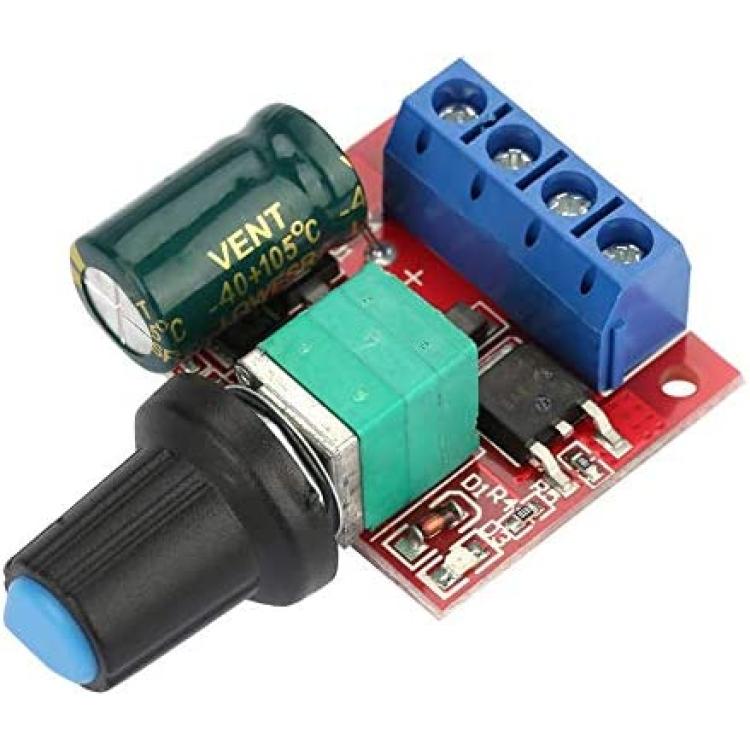

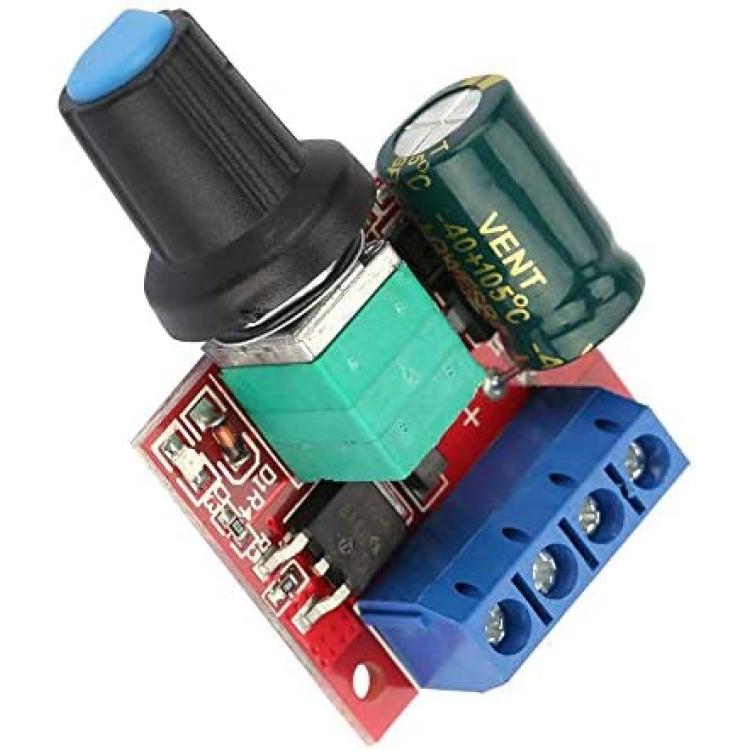

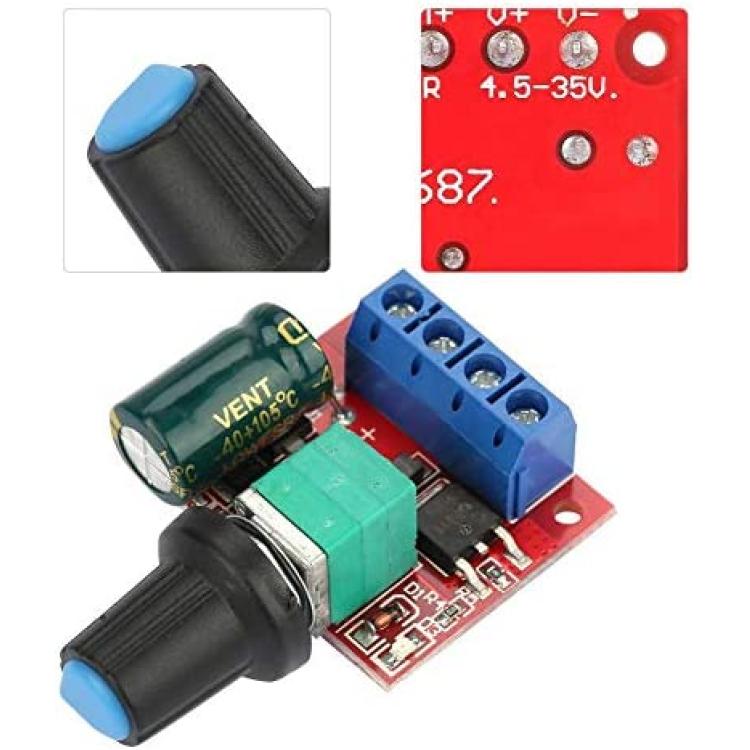

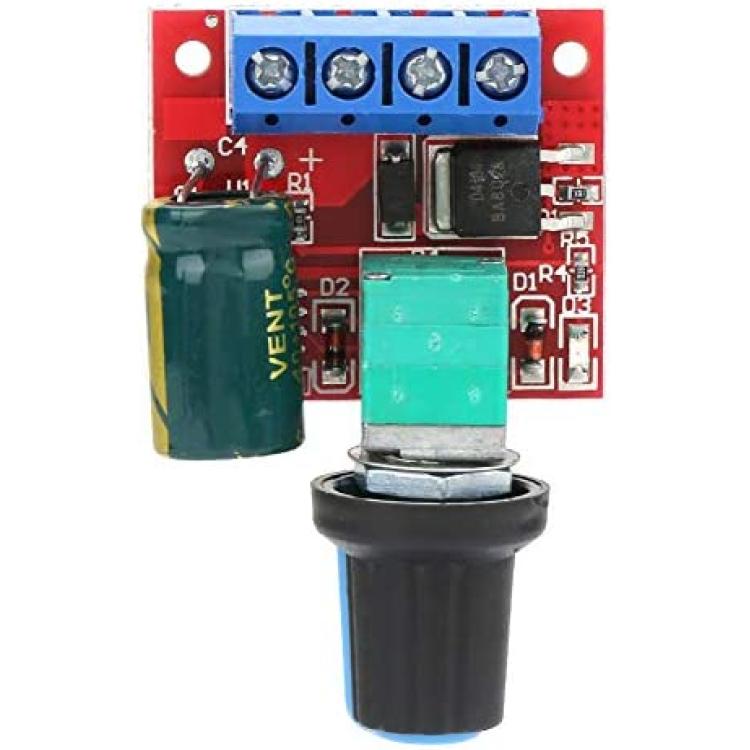

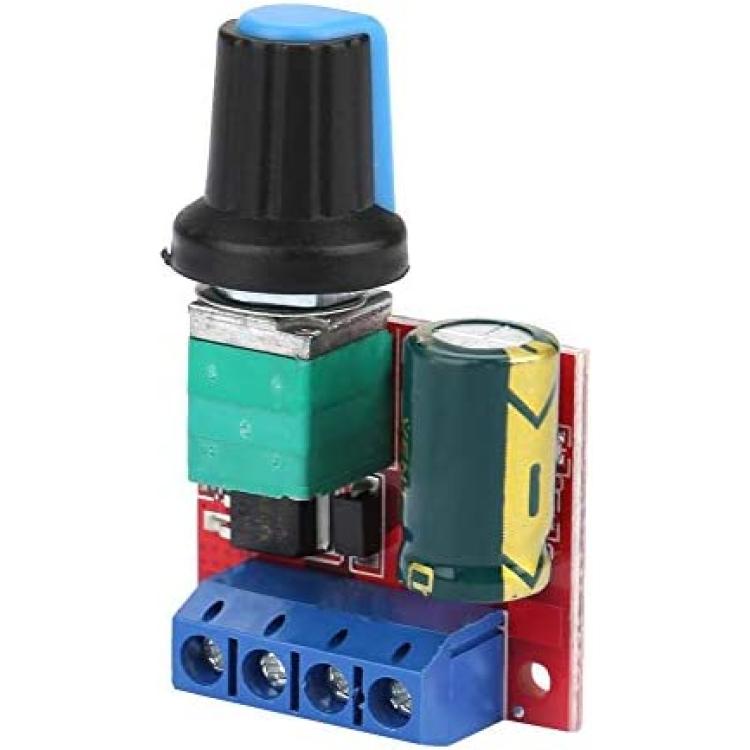

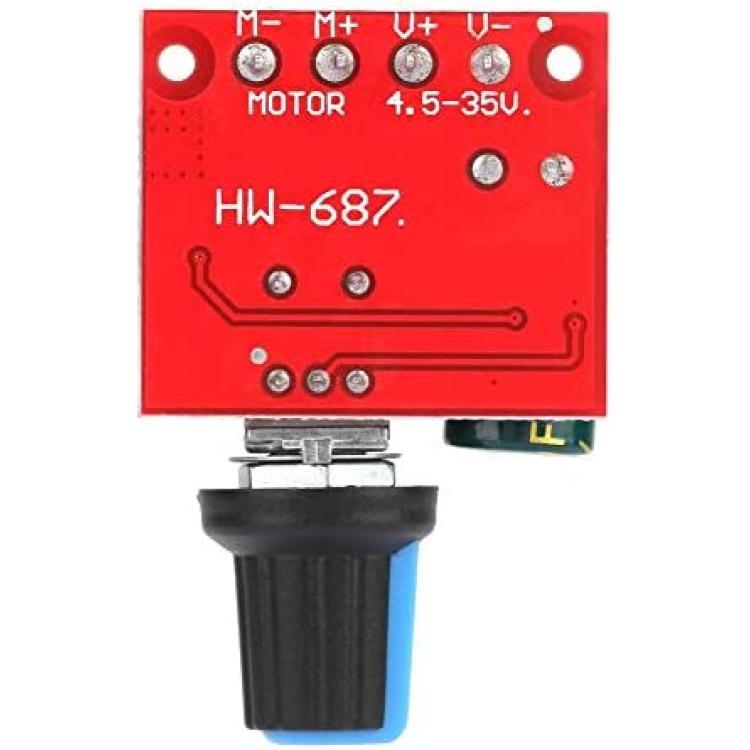

5V-28V Dc Motor Pwm Speed Controller Governor Speed LED Switch Dimmer Speed Control Module Volt Regulator
About this product

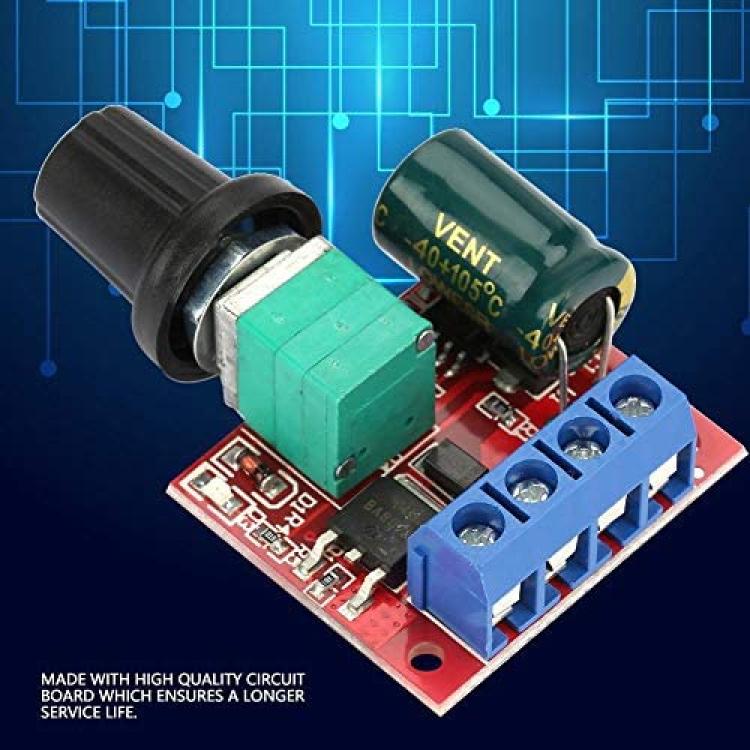

*[High quality] Made with high quality circuit board which ensures a longer service life.
*[Control] Controls the speed of a DC motor with this controller High efficiency, high torque and low heat generation.
*[Safe] Equipped with fuse tube to protect the speed controller from burning out that short circuit causes.
*[Protect] With reverse polarity protection, high current protection Operating.
*[Adjustable] Adjusting the potentiometer knob changes the governor output duty cycle and the motor speed changes.
Description
Specification:
Item Type: PWM Motor Speed Control Switch
Material: Electronic Components
Working Voltage: DC 4.5V-28V
Output current: 0-5A
Output power: 90W (maximum)
Quiescent current: 7uA (standby state)
PWM duty cycle: 1%-100%
PWM frequency: 20khz
Weight: Approx. 16g
Package list:
1 x Motor Speed Controller Switch
Notes:
- The input of the DC motor governor is DC power, and it is not directly connected to AC power (for example: household 220V AC), otherwise it will burn out! ! !
- Do not reverse the positive and negative terminals of the DC power supply, otherwise the governor may be damaged.
- The motor can be positive or negative. When the running direction is inconsistent with the expectation, the direction can be changed by adjusting the line sequence.
- Adjusting the potentiometer knob changes the governor output duty cycle and the motor speed changes.
