CHANCS 60KTYZ 110V 8-10RPM Metal Geared for Rotisserie Turntable with Gear Reduction Motor Holder Bracket and Power Cord Switch Plug

CHANCS 60KTYZ 110V 8-10RPM Metal Geared for Rotisserie Turntable with Gear Reduction Motor Holder Bracket and Power Cord Switch Plug

Name: CHANCS 60KTYZ 110V 8-10RPM Metal Geared for Rotisserie Turntable with Gear Reduction Motor Holder Bracket and Power Cord Switch Plug
Brand: ‎CHANCS
SKU: MM5212
Availability: InStock

Brand: ‎CHANCS
Product Code: MM5212
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

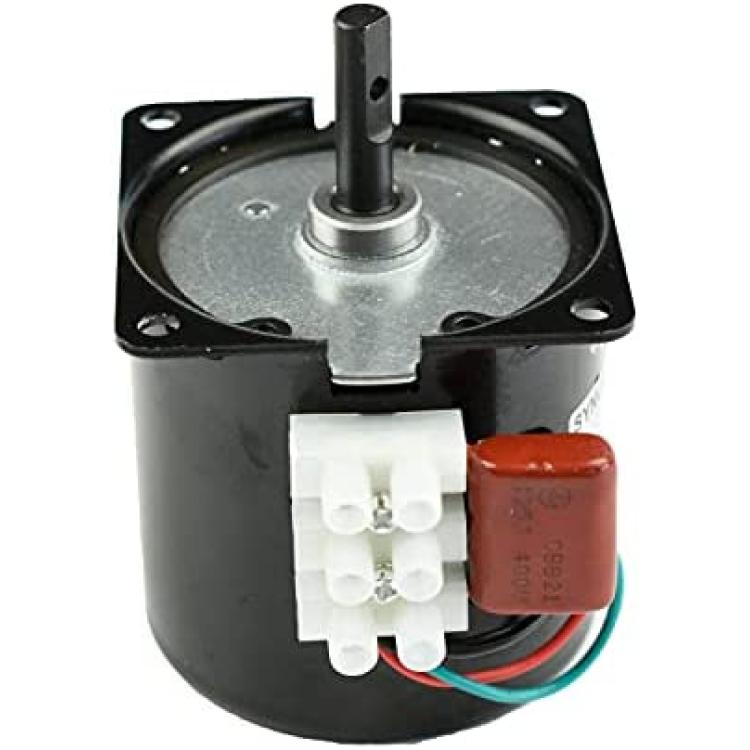

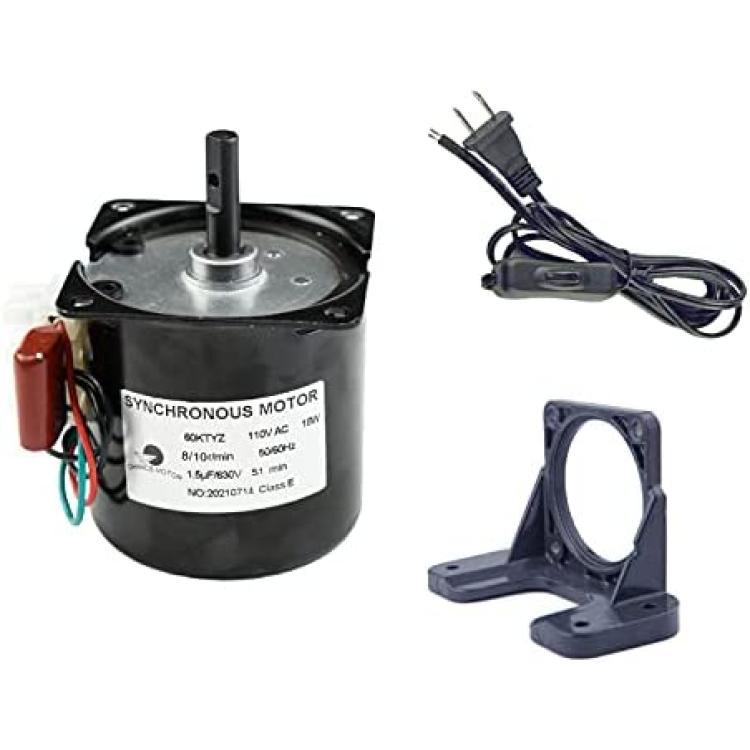

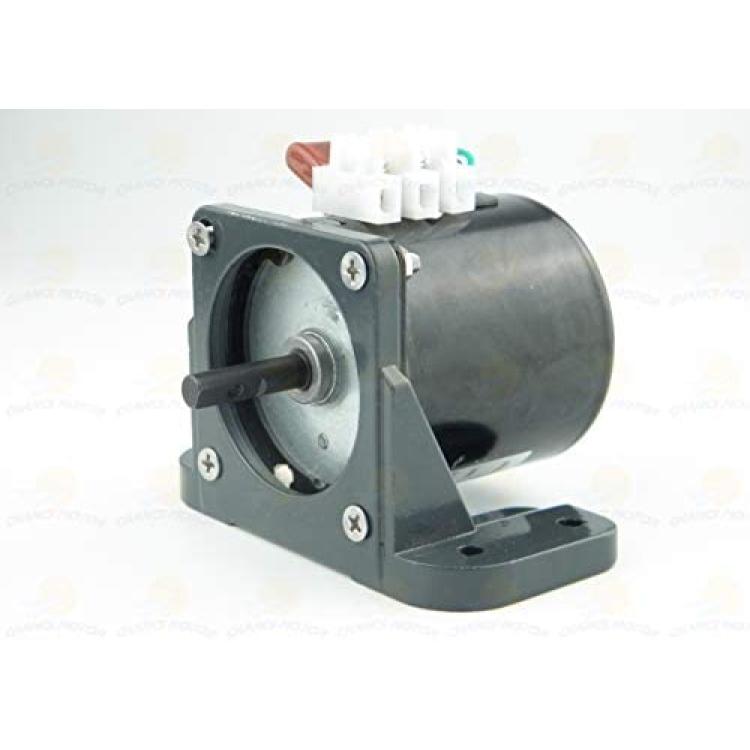

**This is a 60KTYZ motor with power cable and bracket. The 60KTYZ synchronous motor adopts high quality material for long lifespan, wear resistant and durable. This motor has simple construction and compact size, easy to install and use.

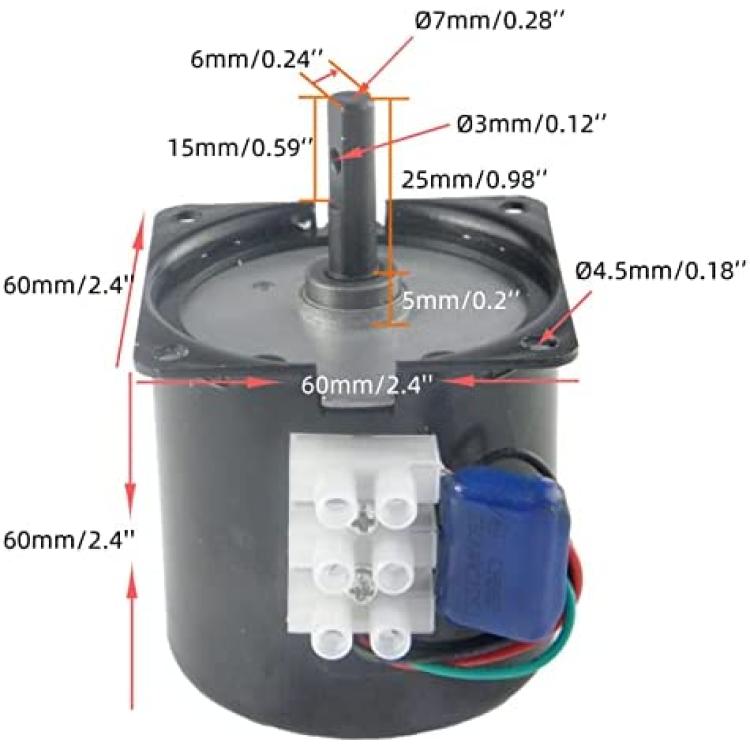

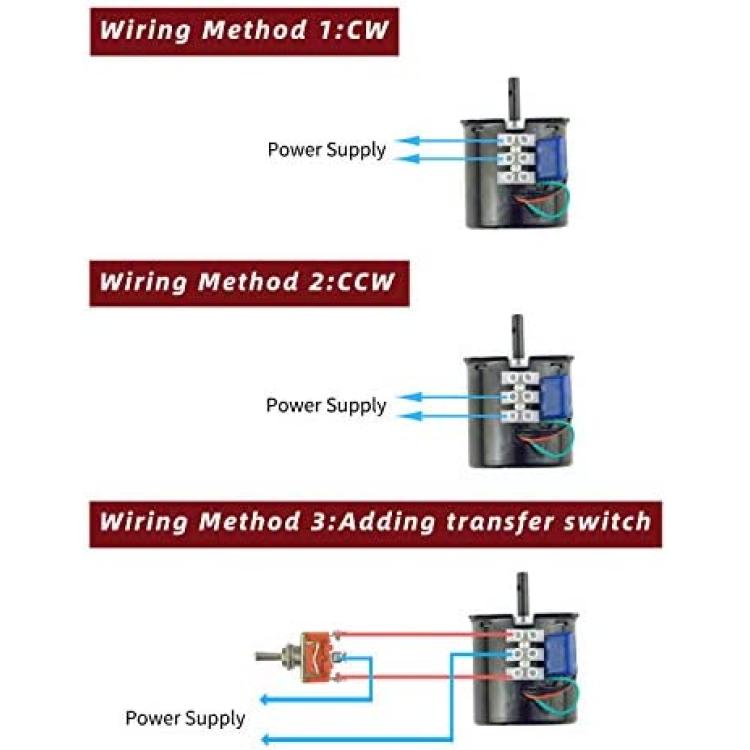

**The specification of motor: Shaft Diameter: 7mm , Shaft Length: 19mm, Working Voltage: AC 110V, Speed: 8-10RPM, Torque: ≤23Kg.cm, CW/CCW (Controllable)

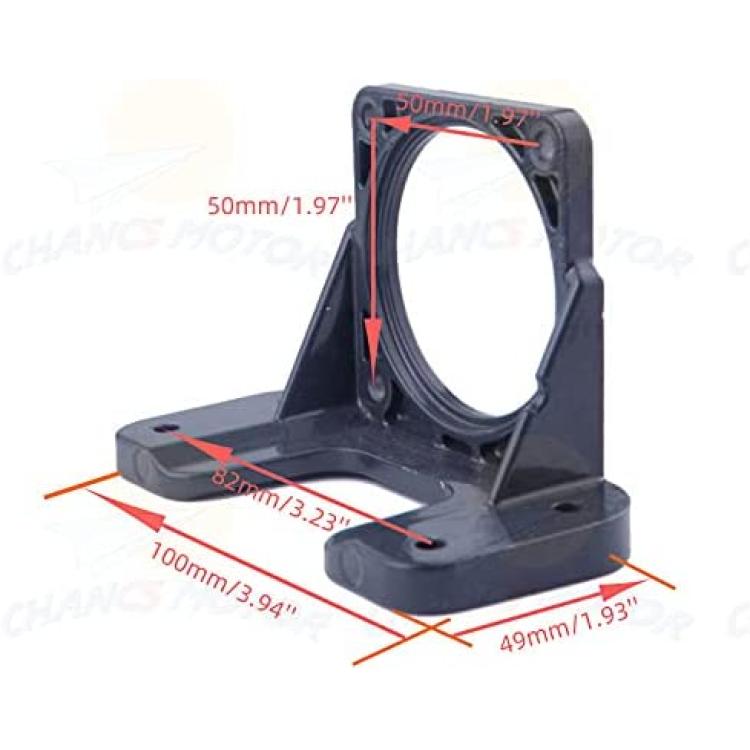

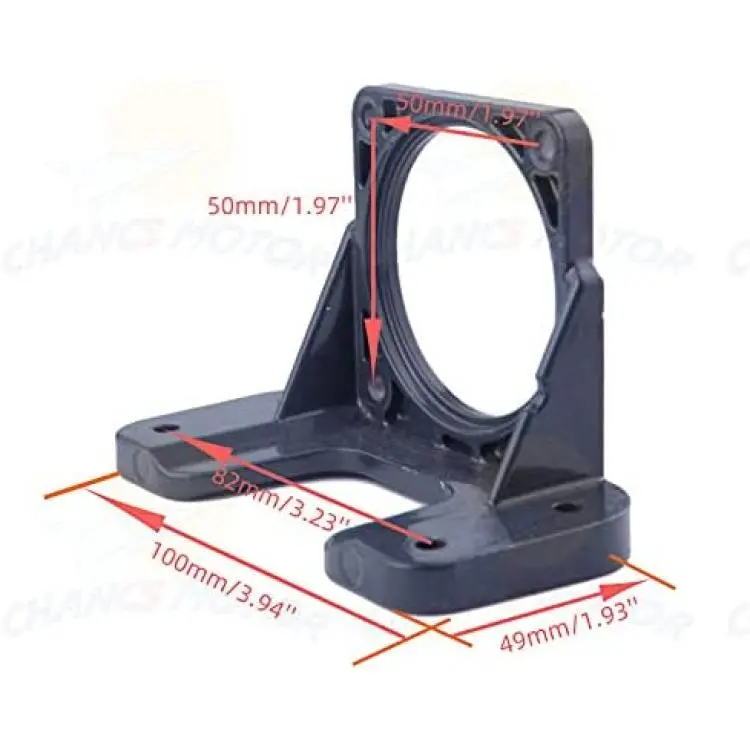

**The size of bracket: Base Width: 49mm, Base Length:100mm, Mounting hole distance: 50mm.

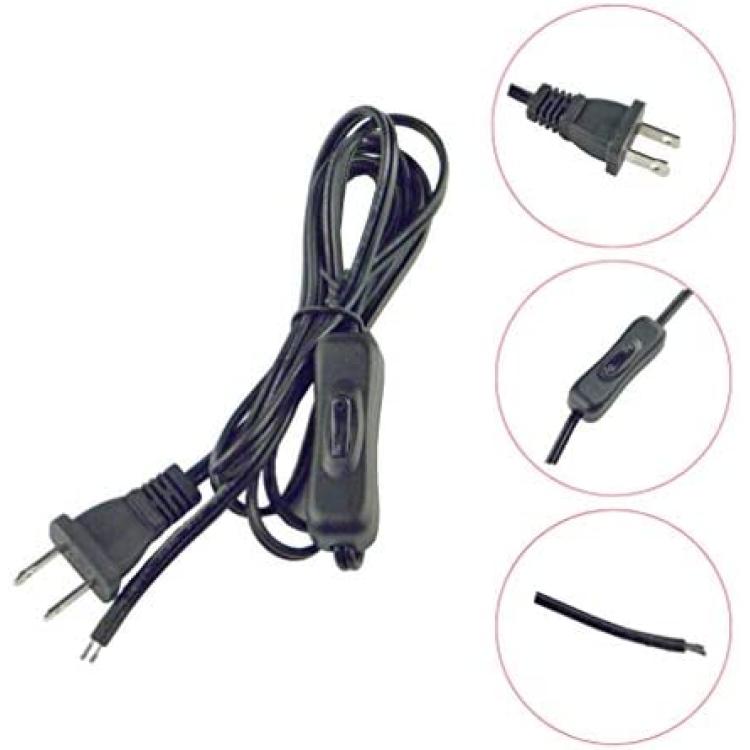

**The specification of the power cable: Wire Length：1.5m,Voltage:110V, Rated Power:500W, US standard two-pin plug.

**Application: The product is used for general industrial machine drive, household, hand-made,barbecue equipment, school project, model, including monitor platform, electric apparatus, electric advertisement, etc.

Description

1 x Synchronous Motor1 x Capacitor1 x Power Cabe1 x Motor Bracket4 x Nuts4 x ScrewsVoltage: AC 110V;Shaft Style: in center;Shaft Diameter: 7mm;Shaft Length: 25mm;CW/CCW (Controllable);Power: 18W;Frequency: ~50/60Hz;Materials: High Strength Steel?Thickness 3mm?Height 65mm?Baseboard: 65mmx65mm?Motor mounting hole: 5.3mm,4.0mm?Type: 303 switch?Rated Power: 500W?Maximum current?6A?Wire Length?1.8m?Voltage: 110V?Wire Diameter: 0.75mm square?Plug Type: US standard plug?

Tags: rotisserie turntable motor, 60KTYZ motor, metal geared motor, barbecue rotisserie motor, AC 110V motor, rotisserie turntable parts, motor holder bracket, 8-10RPM motor, industrial motor, model building motor
