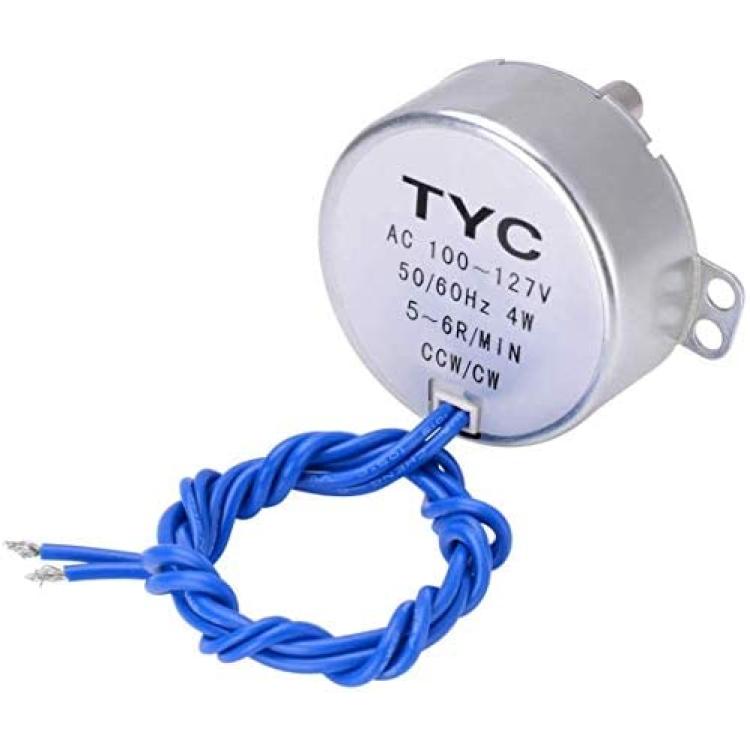

6PCS Cup turner motor Synchronous Synchron Motor Turntable Motor 50/60Hz AC100~127V 4W CCW/CW Direction with 6ft Power Cord Switch Plug For Cup Turner,Cuptisserie,Hand-Made or Motor (5-6RPM)
About this product
*Model Name:6 Pieces Cup turner motor Synchronous Synchron Motor Turntable Motor Electric Cuptisserie Motor Cup Turner Motor Power: 4 watts; AC voltage range: 100-127 V; Frequency: 50/ 60 Hz; Rotating speed: 5-6 R per minute; Manner of working: CCW/ CW
*Size: motor is 1.9 inch/ 4.8 cm in diameter, 1.57 inch/ 4 cm in height; Cable is 0.08 inch/ 2 mm in diameter, 15.7 inch/ 40 cm in length
*6PCS 6ft switch plug cord:The external of this switch plug cord made up of PVC Plastic, and the Internal is Copper Core
*6 Quick Connector Terminal The shell is made of high quality PVC insulation fireproof material, safe, non-toxic and corrosion resistant.it is easy to operate, saving time and effort.The surface has obvious markings.These can be used for motors, electrical controls, power supplies, household appliances, lighting, machinery and other electrical connections.
*Wide uses: good electric synchron motor for hand-made, school project, model such as heater machine, air conditioner, electric fan, Christmas tree, dynamic visualizer, popcorn machine, arts and crafts lighting, etc.
Description
6 Pieces Synchronous Synchron Motor Turntable Motor Electric Cuptisserie Motor Cup Turner Motor 100-127 VAC 50/60 Hz 4W 5-6RPM/MIN CCW/CW Direction for Hand-Made, School Project, Model or Guide Motor
Description:
Synchronous motor is a kind of common AC motor.
Exciting winding use the DC excitation current, the establishment of magnetic field.
The armature winding of three-phase symmetrical action use as the power winding.
The armature winding and the main magnetic field is doing the cutting movement.
Specification:
Rated power: 4 watts
Voltage: AC 100-127 V
Frequency: 50/ 60 Hz
Rated speed: 5-6 R/ Min
Manner of working: CCW/ CW

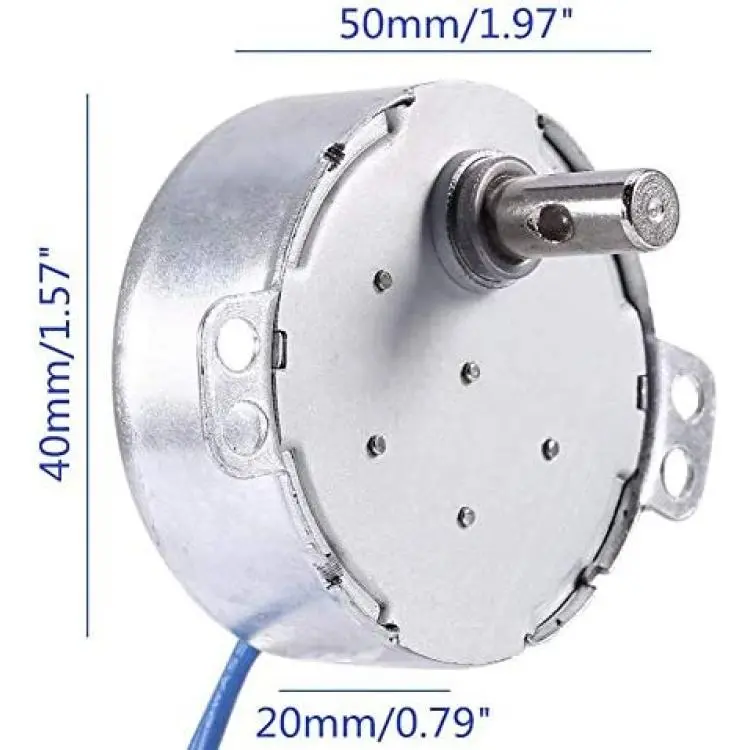

Motor size: 1.9 inch/ 4.8 cm in diameter, 1.57 inch/ 4 cm in height
Cable size: 0.08 inch/ 2 mm in diameter, 15.7 inch/ 40 cm in length
Shaft diameter: 7 mm
Shaft length: 30 mm
Color: silver

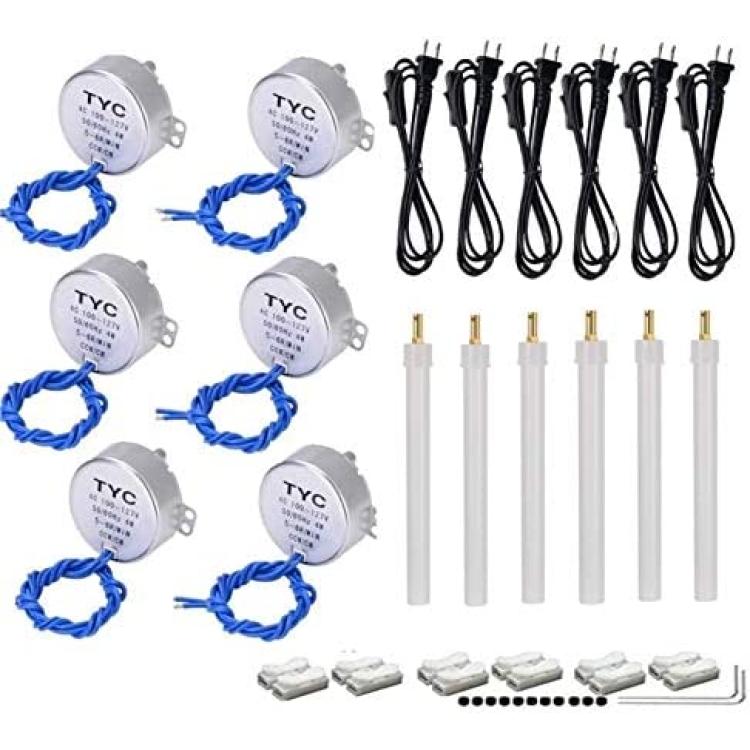

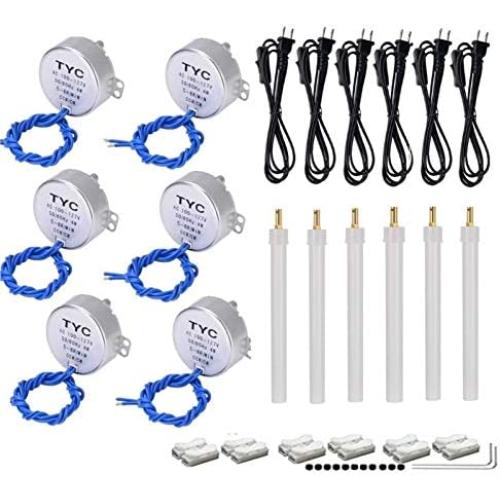

Package includes:
6 x Turnable synchronous motor

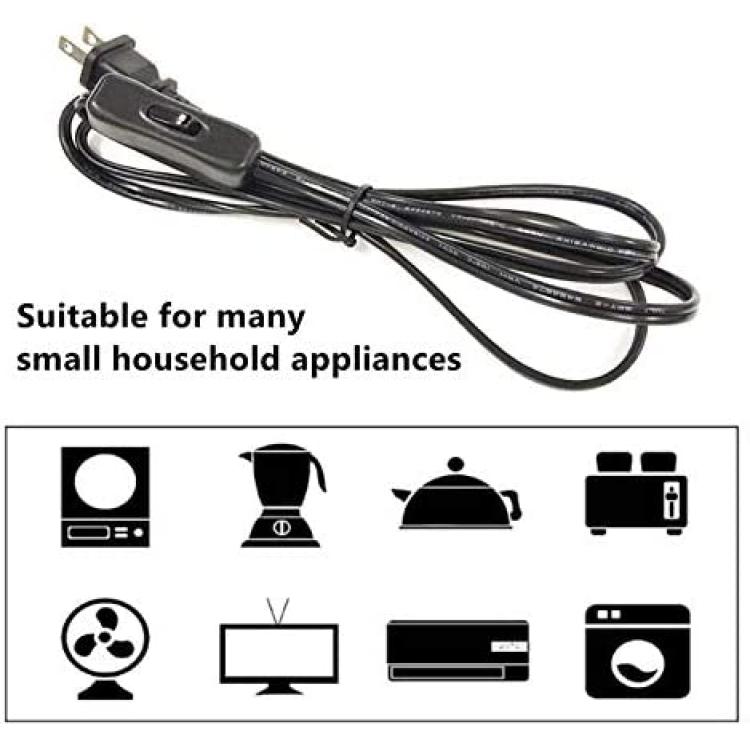

6x 6ft power cord with switch plug
6PCS X Quick connection anti-shock terminal block
6XDN20 PVC ARM
