Reversible High Torque Worm Geared Motor, DC 12V CW CCW Reduction Motor for Windows, Miniature Winch, 5RPM 6RPM 20RPM 40RPM 62RPM(62RPM)
Availability: Pre-Order, Inquiry Price
About this product
*【Scope of Application】Geared motor is very suitable for windows, door openers, miniature winches and other occasions. It is also suitable for boats, cars, fans, household appliances, etc.
*【No Self-locking Function】 Gear box has no self-locking function, and it works well.
*【Five No-load Speeds】 Electric motor has five no-load speed options: 5RPM, 6RPM, 20RPM, 40RPM and 62RPM, you can choose according to your needs.
*【Vertical Arrangement】 The gearbox of the motor shaft of the Motor is arranged perpendicular to the direction of the output shaft.

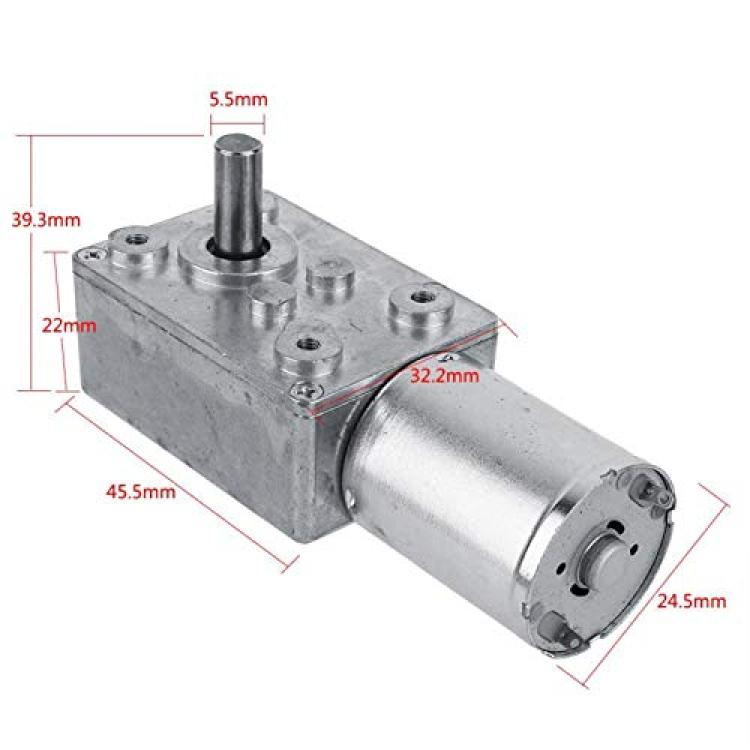

*【Installation Size】 The entire main body of the motor output shaft can be widely adapted to some installation sizes in this regard.
Description
Description:
The entire body of the motor output shaft relative to the general direction of gear motor short, widely adapted to some of the installation dimensions of this aspect is required.
Specifications:
Voltage: DC12V
Load torque: 10KG.CM
No-load speed choice : 5rpm / 6rpm / 20rpm / 40rpm / 62rpm(optional)
Speed(RPM): 5
Stall Torque(kg.cm): 36.4
Stall Current(A): 0.82
No-load Current(A): 0.12
Reduction Ratio: 1:972
Speed(RPM): 6
Stall Torque(kg.cm): 36.4
Stall Current(A): 0.82
No-load Current(A): 0.12
Reduction Ratio: 1:972
Speed(RPM): 20
Stall Torque(kg.cm): 28.2
Stall Current(A): 1.14
No-load Current(A): 0.22
Reduction Ratio: 1:400
Speed(RPM): 40
Stall Torque(kg.cm): 15
Stall Current(A): 1.15
No-load Current(A): 0.31
Reduction Ratio: 1:224
Speed(RPM): 62
Stall Torque(kg.cm): 16
Stall Current(A): 2.52
No-load Current(A): 0.41
Reduction Ratio: 1:224
Package contain:
1 x Geared Motor

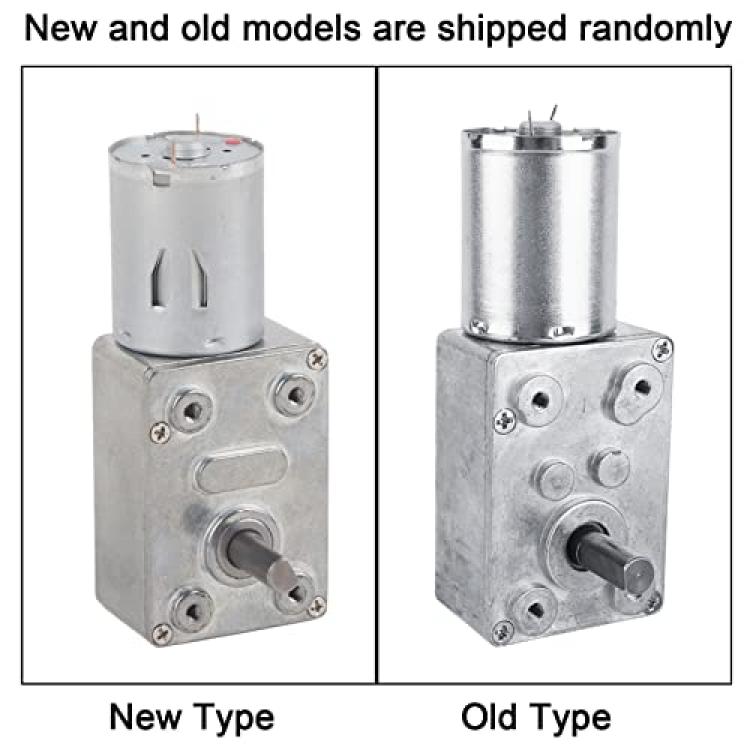

Note:Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
