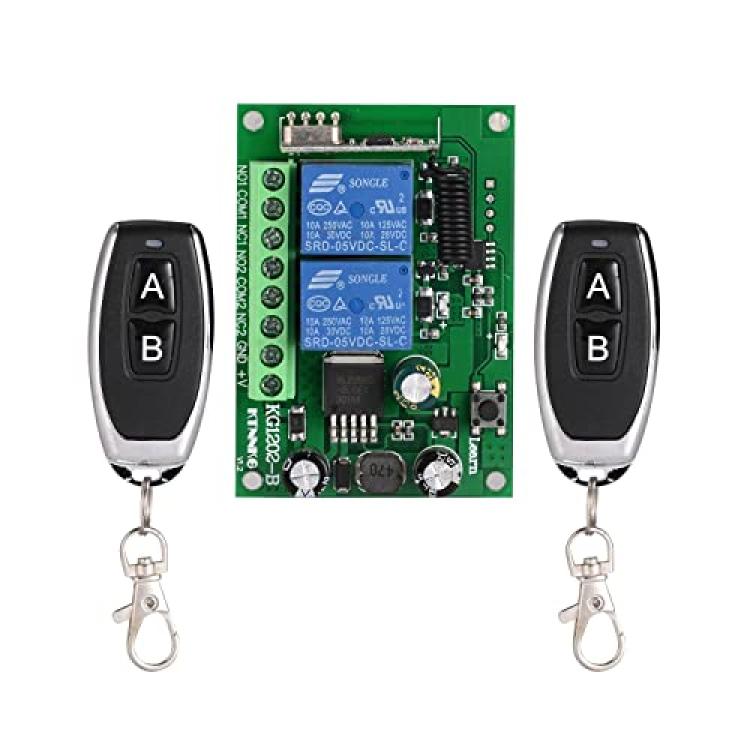

433MHz Universal Wireless Remote Control DC 12V 10A 2CH RF Relay Receiver Transmitter for Garage/Gate/Motor/LED/Light/Smart Room
Availability: Pre-Order, Inquiry Price
About this product
*Stability and easy operation：Using remote relay RF technology, the learning code of 433mhz wireless transmission module has low repetition rate and re-learning mode, with high security, can delete the old code and re-learn the new code when the remote control is lost, So you can always control it.
*High Sensitivity and Anti-jamming: The receiving module provides high signal sensitivity and super anti-jamming, the remote control distance is long and the signal is stable. Using non-directional wireless coding technology, it can be controlled independently without interfering with each other.
*Multiple Modes: CHAOSEND wireless relay has 3 operating modes, namely jog, self-locking, interlocking mode. The default is self-locking mode. Programmable RF transmitters and receivers can be flexibly configured in quantity and operating mode to meet almost any application requirement.
*Small size and easy to install: For those hobbyists who have home automation DIY projects or commercial industrial electrical, it is a very easy to install remote switch.
*Scope of application: This RF remote control relay is widely used in industrial control and security fields, such as short-distance and long-distance switch equipment, lights, motors, remote controls, wireless security alarms, wireless access alarms, wireless controllers, etc.
Description
Technical parameters:
1?Working voltage: DC12VÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
2?Static current: 8mA
3?Working frequency: 433MHzÂ
4?Load power: 10A / road 2
5?Reception sensitivity: -105dbm
6?Frequency deviation: ±0.2 MHz
7?coding mode : learning type

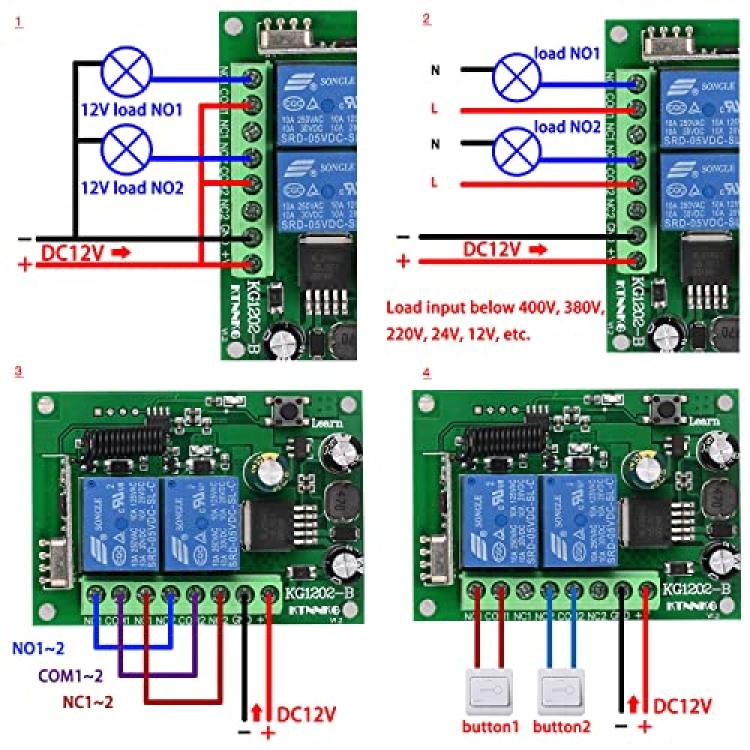

8?Working mode: click, self-lock, interlock
9?Modulation: ASK
10?Telecontrol distance: 100M (open space without interference)

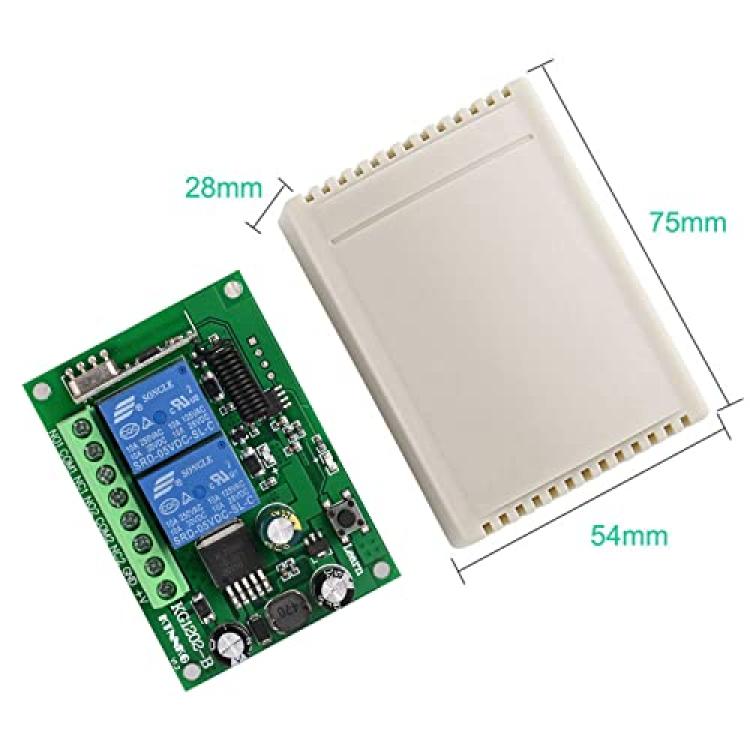

11?PCBA size: 68mm / 48mm / 18mm
12?Housing size: 76mm, 56mm, 30mm
