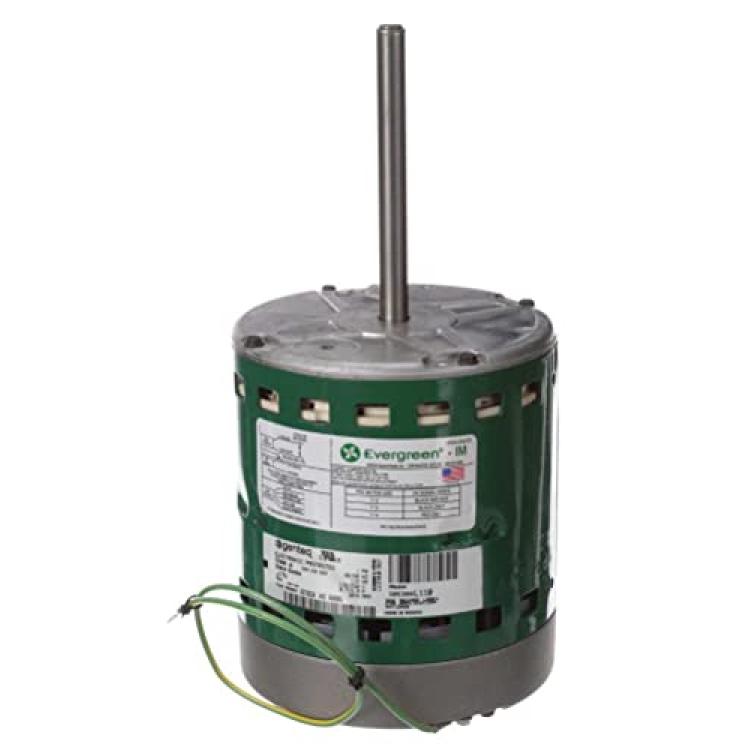

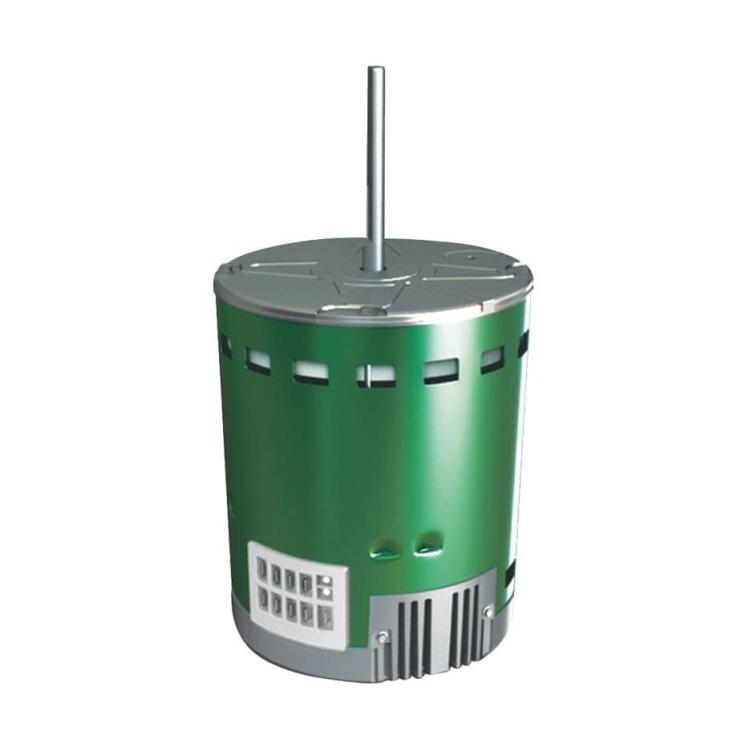

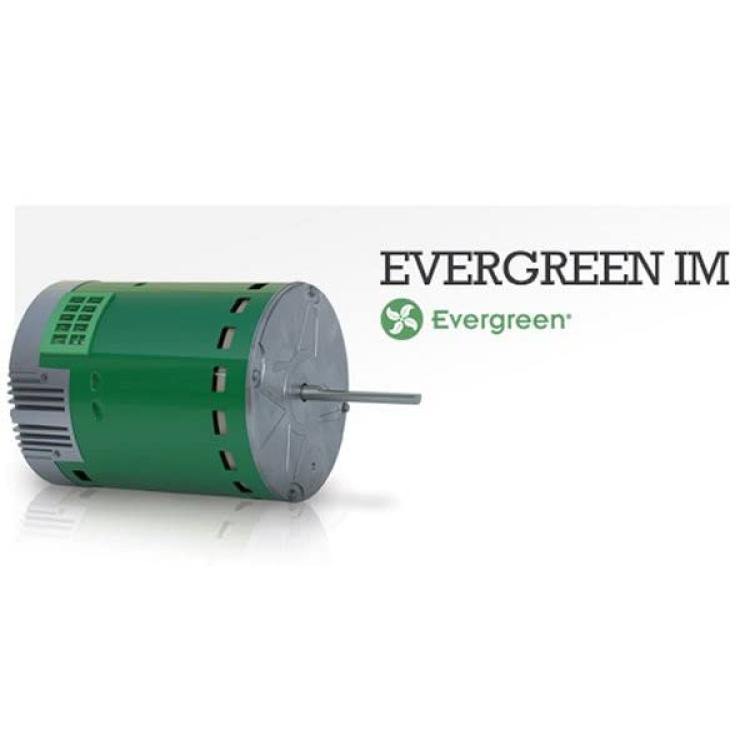

Brushless Direct Drive Blower, ECM, 1/2 HP
Availability: Pre-Order, Inquiry Price
About this product
*Price For: Each Motor Shaft Design: Flat Motor Service Factor: 1.00 Frame: 48 Motor Bearings: Ball Motor Enclosure Design: Open Air-Over Phase: 1 Ins. Class: B Motor Mounting Type: Band Capacitor Required: No Motor Sub Application: Direct Dr Fan/Blower Motor Application: HVAC/R Item: ECM Direct Drive Blower Motor Motor Design: ECM Shaft Dia.: 1/2"
*Duty: Continuous Voltage Compatibility: 115, 120, 230, 240, 115/230, 120/240 Includes: 115VAC White Jumper and HVAC System ID Label Application: HP PSC Motors in Residential or Light Commercial HVAC Systems Standards: UL Recognized (1004) Shaft Length: 4-15/16" Motor Shaft Rotation: CW/CCW Overall Length: 11-1/4" Motor Thermal Protection: Auto Nameplate RPM: 1070 Motor Mounting Position: All Angle
*No. of Speeds: 1 HP: 1/2 Max. Ambient Temp.: 40 Degrees C Full Load Amps: 6.7/4.0 Ambient Temperature: -40 to 40 Degrees C Body Dia.: 5-5/8" Frame Material: Aluminum Voltage: 115/230 Country of Origin (subject to change): Mexico
*Price For: Each Motor Shaft Design: Flat Motor Service Factor: 1.00 Frame: 48 Motor Bearings: Ball Motor Enclosure Design: Open Air-Over Phase: 1 Ins. Class: B Motor Mounting Type: Band Capacitor Required: No Motor Sub Application: Direct Dr Fan/Blower Motor Application: HVAC/R Item: ECM Direct Drive Blower Motor Motor Design: ECM Shaft Dia.: 1/2"
*Duty: Continuous Voltage Compatibility: 115, 120, 230, 240, 115/230, 120/240 Includes: 115VAC White Jumper and HVAC System ID Label Application: HP PSC Motors in Residential or Light Commercial HVAC Systems Standards: UL Recognized (1004) Shaft Length: 4-15/16" Motor Shaft Rotation: CW/CCW Overall Length: 11-1/4" Motor Thermal Protection: Auto Nameplate RPM: 1070 Motor Mounting Position: All Angle
Description
' ECM Direct Drive Blower Motor, ECM, Motor Enclosure Design Open Air-Over, 1/2 HP, 1070 Nameplate RPM, 48 Frame, Voltage 115/230, Hz 60/50, 1 Phase, Full Load Amps 6.7/4.0, Motor Mounting Type Band, Auto Motor Thermal Protection, Ins. Class B, Motor Shaft Rotation CW/CCW, Ball Motor Bearings, Motor Service Factor 1.00, Ambient Temperature -40 to 40 Degrees C, Max. Ambient Temp. 40 Degrees C, Frame Material Aluminum, Overall Length 11-1/4 In., Motor Shaft Design Flat, Shaft Dia. 1/2 In. '
