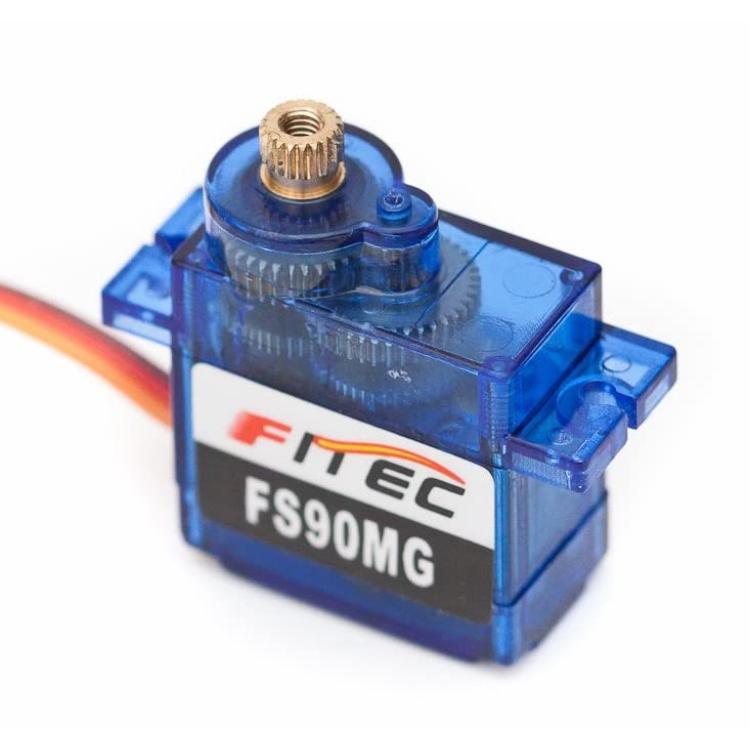

Mini Servo Motor with Metal Gears, 1.5kg.cm at 4V or 1.8kg.cm at 6V, Includes Four Horns by Electronix Express
Availability: Pre-Order, Inquiry Price
About this product
*Mini servo motor ideal for robotic projects, includes a variety of servo horns. Features metal gears to maximize power and durability.
*Operating Speed: 0.12sec/60degree (at 4.8V), 0.10sec/60degree (at 6V)
*Stall Torque: 1.5kg.cm/20.87oz.in (at 4.8V), 1.8kg.cm/25.04oz.in (at 6V)
*Weight: 14 g
*Dimensions: 23.2 × 12.5 × 22 mm
Description
Mini Servo Motor ideal for robotic projects, includes a variety of servo horns. Features metal gears to maximize power and durability.
Dimensions: 23.2 × 12.5 × 22 mm
Weight: 14 g
Operating Speed: 0.12sec/60degree (4.8V) 0.10sec/60degree (6V)
Stall Torque: 1.5kg.cm/20.87oz.in (4.8V) 1.8kg.cm/25.04oz.in (6V)
Operating Voltage: 4.8V~6V
Control System: Analog
Direction: CCW
Operating Angle: 120degree
Required Pulse: 900us-2100us
Bearing Type: None
Gear Type: Metal
Motor Type: Metal
Connector Wire Length: 20 cm
