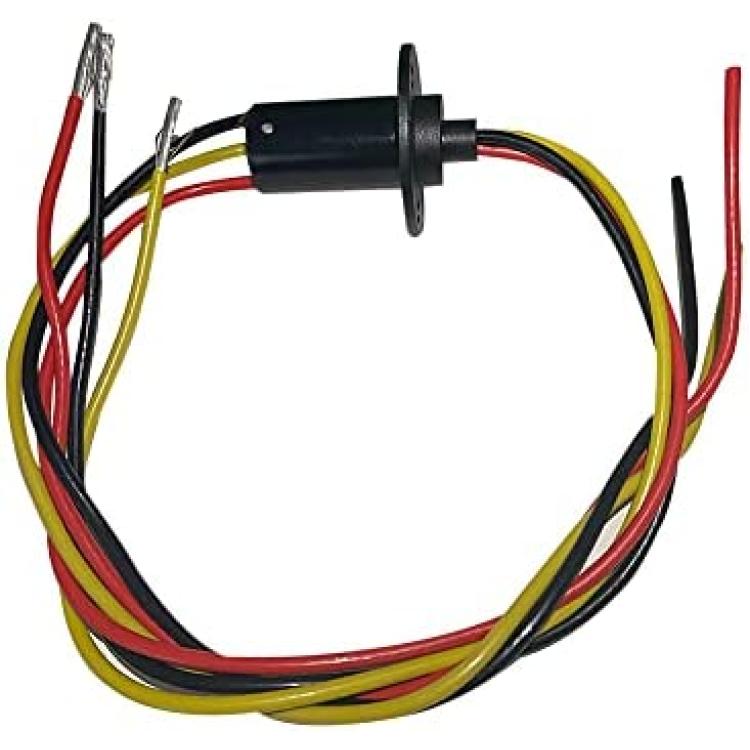

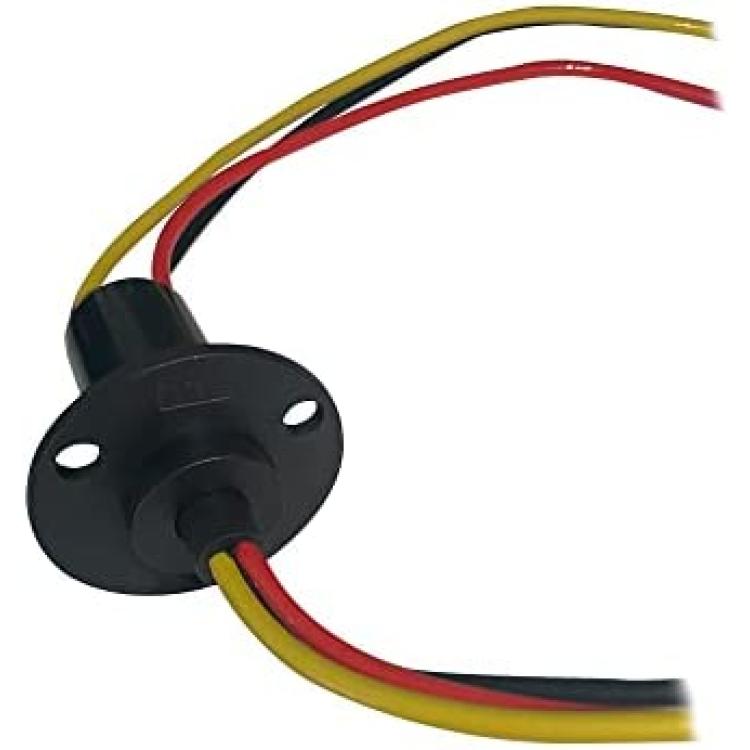

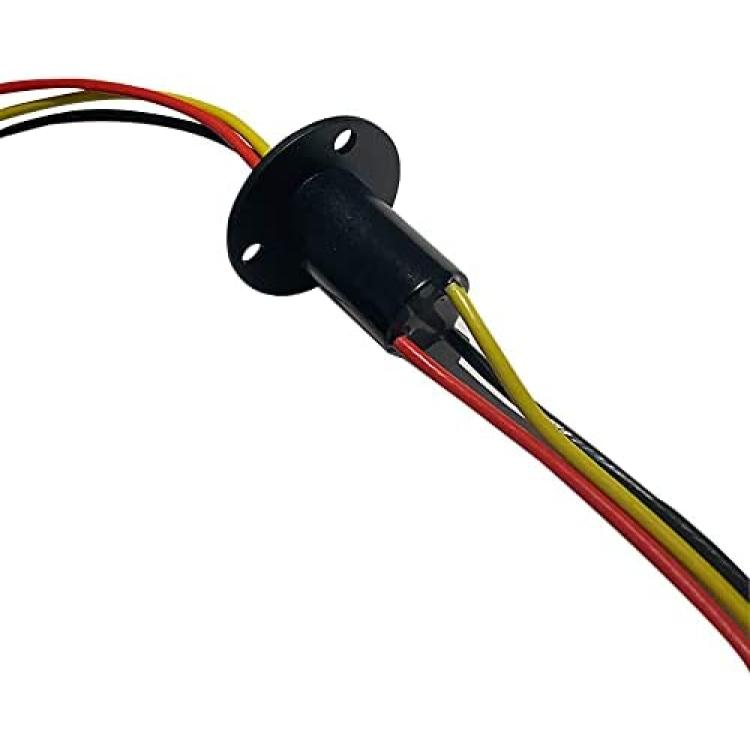

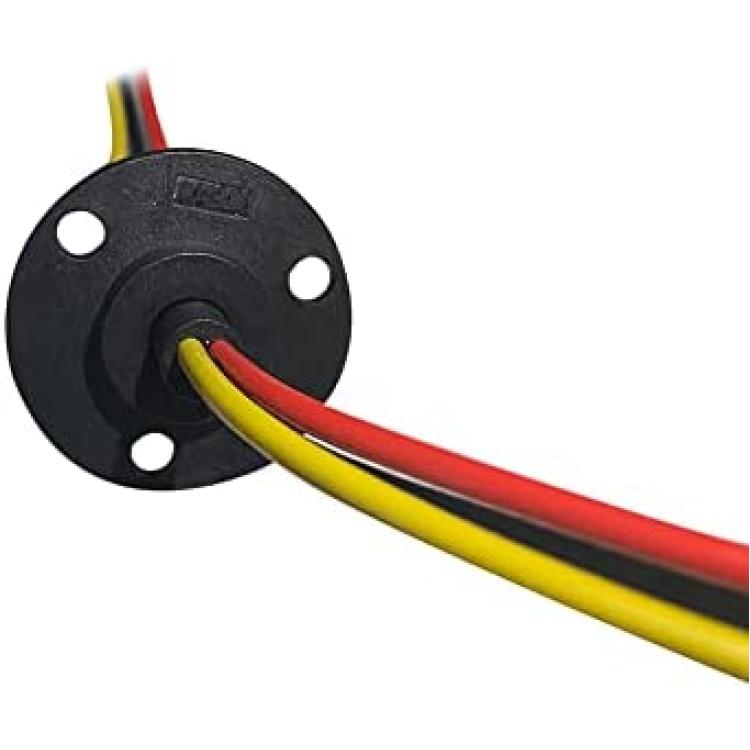

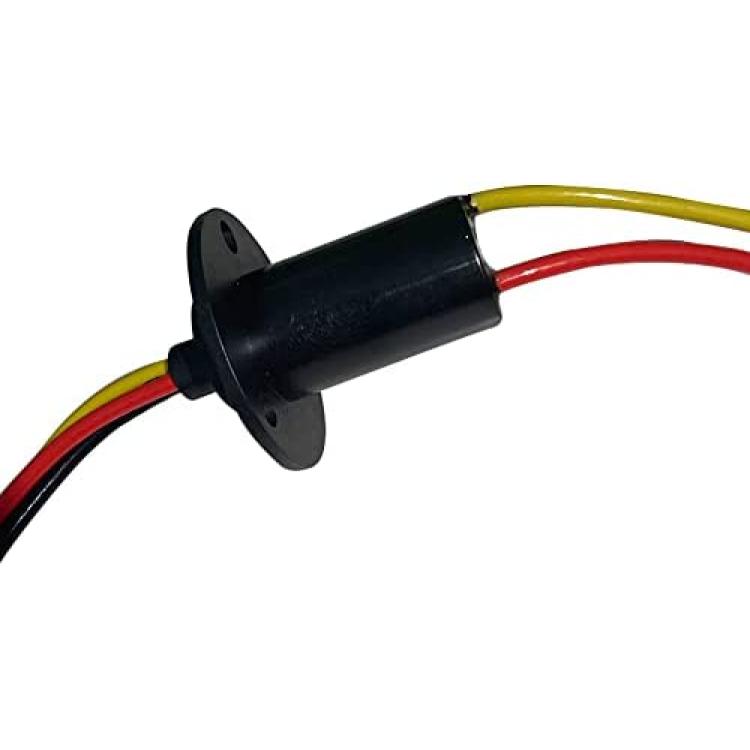

Healcity Slip Ring Collector Ring Rotary Electrical Contact Electrical Slip Ring Joint Rotary Connector (3 Wires 30A Diameter 22mm)
About this product
*This slip ring adopts domestic leading military-grade high-standard surface treatment technology, the internal structure is more precise and compact.
*Conductive ring adopts 90 degree angle V line groove design, with smooth rotation, low torque and low electrical noise.

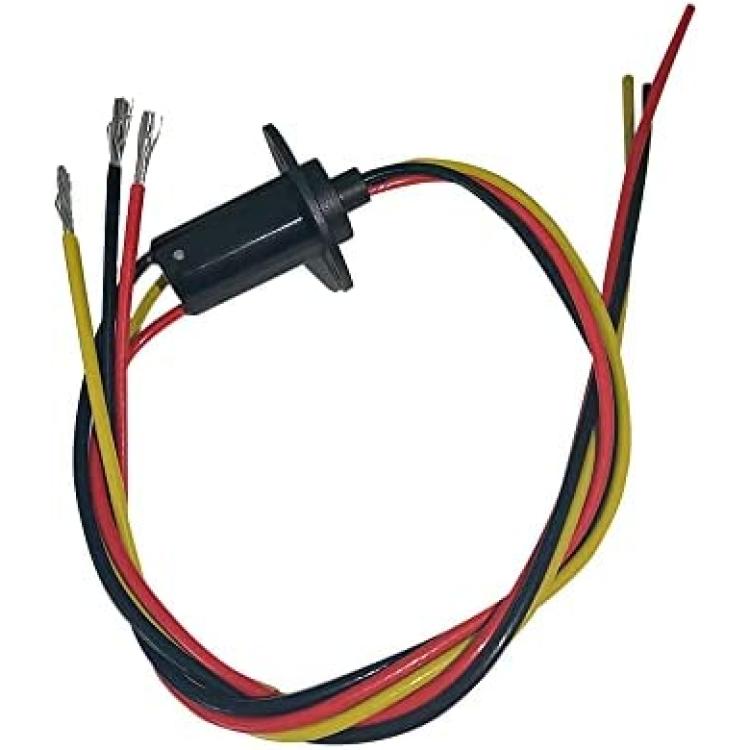

*The stator wire and the rotor wire use colored wires to simplify the circuit connection.
*The Capsule slip ring is a standard, off-the-shelf series product, that uses gold contacts at the rotary interface to ensure stability and service life, mainly used in civil and commercial fields.
*360° smooth and unlimited rotation fully meets image and data transmission.
Description
Specifications:
Voltage: 0~600VAC/VDC
Current: 30A per circuits
Speed: 0-150 Rpm
Circuits: 3
Housing Material: Engineering Plastics
Work Humidity: 0~85% RH
Work Temp.: -30?~80?
Contact material: Gold plated ring-Gold plated brush
Insulation resistance: ?1000M?/500VDC
Lead size: 300mm 30A=AWG#12;
Dielectric strength: Between each circuit and all other circuits,? 500 VAC @ 50Hz, 60s
Electrical noise: ?10m?
Work life: Depending on speed and working environment, ?10,000,000 runs
Application:Suitable for PTZ, electrical test equipment, rotary table, medical equipment, CCTV security monitoring equipment, robot , exhibition / display equipment, manufacturing and processing control equipment, small wind turbines, radar antennas and so on.
Package Includes: 1Pc
