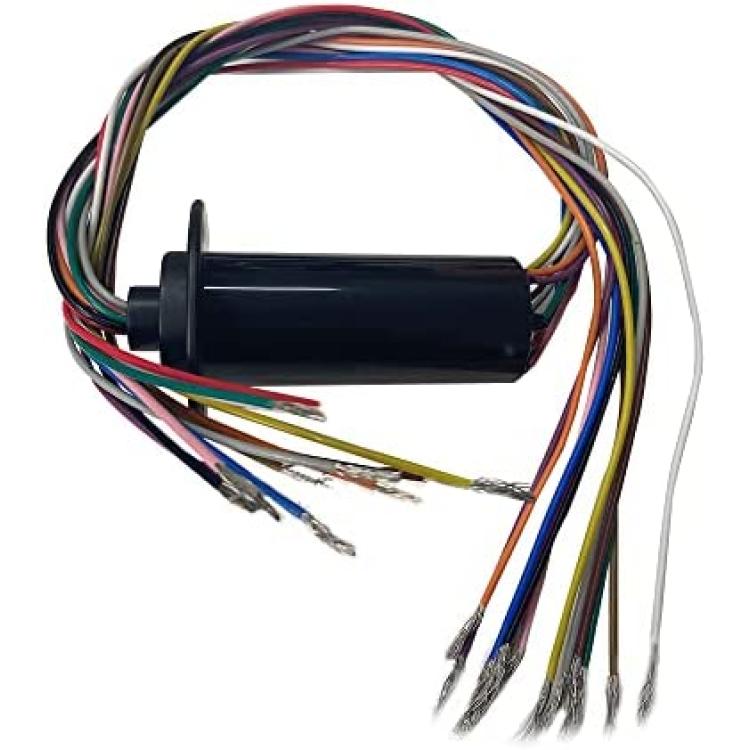

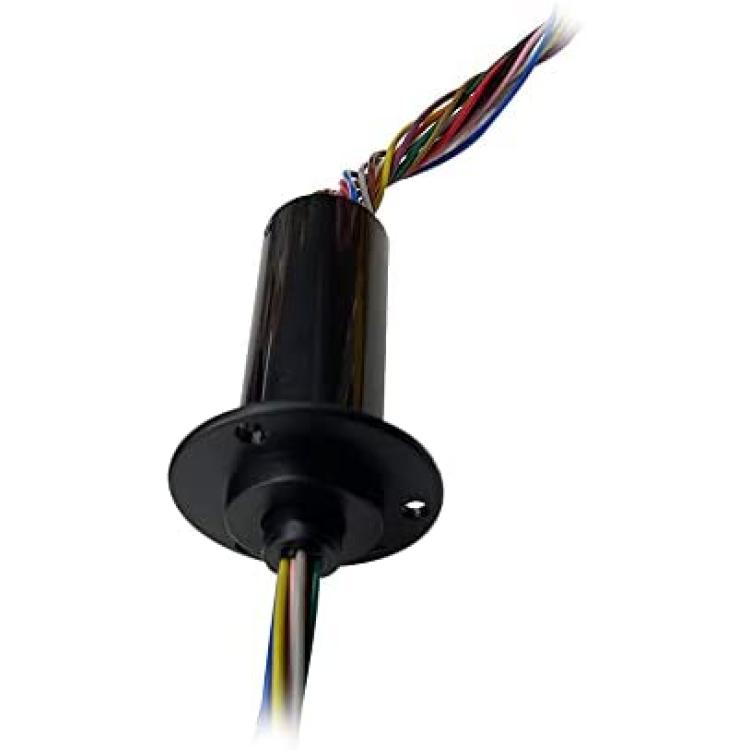

Vitaciti Slip Ring Collector Ring Rotary Electrical Slip Ring Electrical Contact Joint Rotary Connector Capsule for Wind Turbine Power Generator (12 Wires 10A Diameter 30mm)

Application

Suitable for PTZ, electrical test equipment, rotary table, medical equipment, CCTV security monitoring equipment, robot , exhibition / display equipment, manufacturing and processing control equipment,Small wind turbines, electroplating equipment, heating rolling and other application equipment that require high power and high current are also widely used in other industrial control fields, such as shock absorber high-current slip ring, sewage treatment equipment slip ring, high-strength oil logging instrument conductive slip ring, robot welding equipment slip ring, high-current conductive slip ring, dust explosion-proof slip ring for clearing machine, high-temperature electric slip ring, heating rotary shaft slip ring yo dryer, frying machine, heating and stirring mechanical slip ring, etc.

Specifications:

Material of shell: PBT
Rated voltage: 0~600VAC/VDC
Insulation resistance: ? 1000m?/500VDC
Dynamic resistance change value: <0.01?
Path: 12 wires
Rated current per ring: 10A
Insulation strength: 500VAC@50Hz, 60s
Electrical noise: 20M
Operating speed: 150 rpm
Working temperature: -30?~80?
Working humidity: 0-85% RH
Working life: 10 million rpm
Contact material: precious metal
Wire length: standard length 300mm
Wire specification: 10A=AWG#16; 20A=AWG#14; 30A=AWG#12
Protection level: IP51,IP68,IP68
Rotational torque of 0.1N·m; +0.03 n m/6 road
Package Included:
1 x Slip Ring
