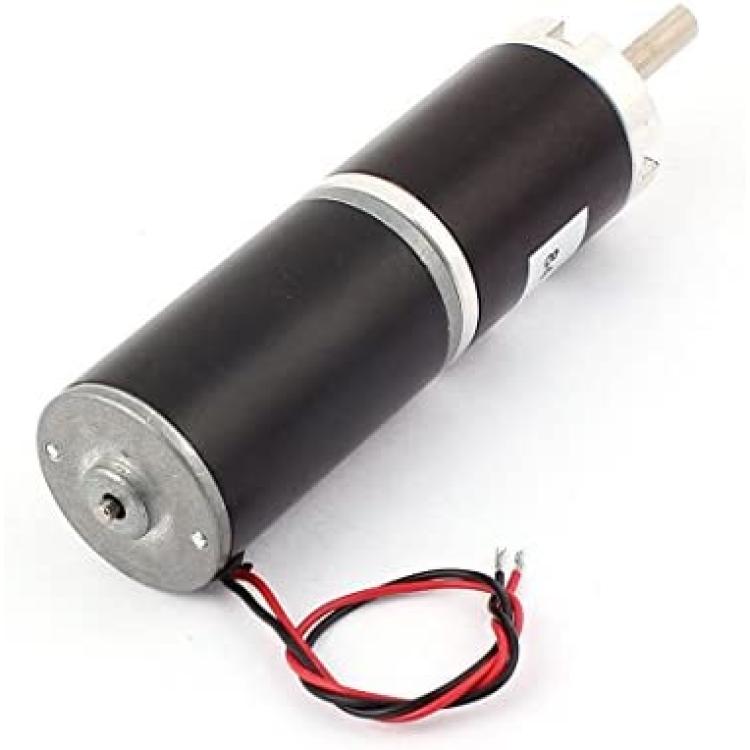

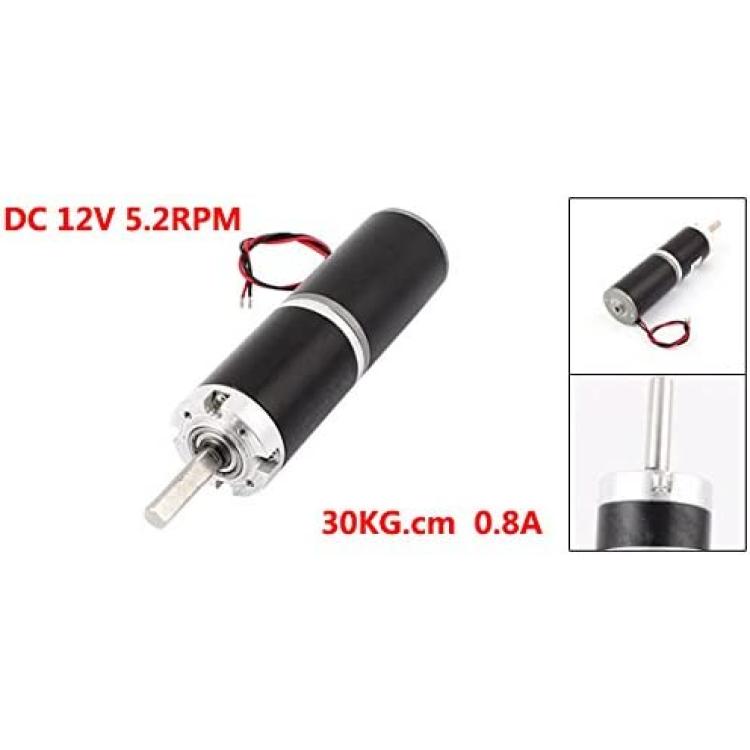

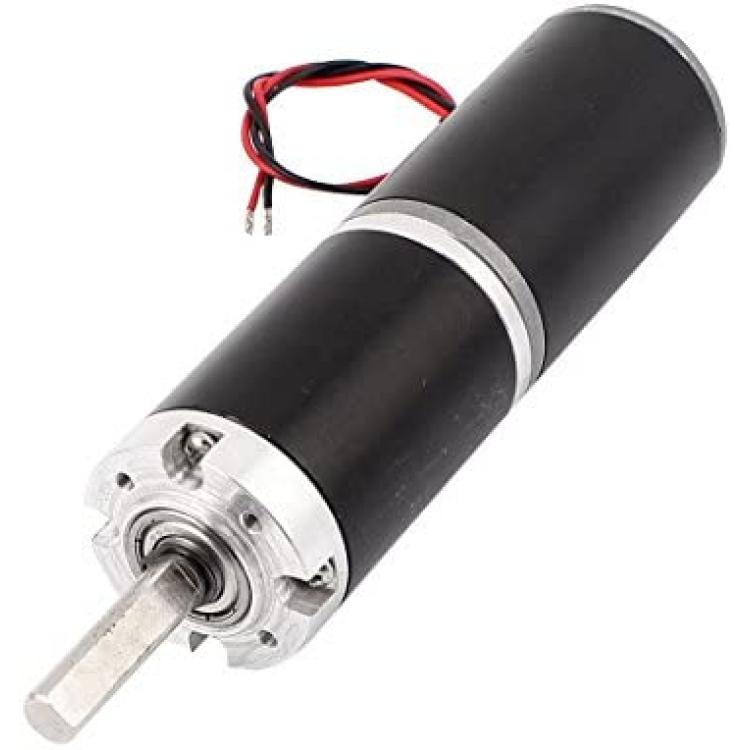

DC 12V 5.2RPM 0.8A 30KG.cm High Torque 36mm Diameter Planetary DC Gear Box Motor Speed Reducer
About this product
*Compact DC Gear Box Motor Combination with 36mm diameter and has two 19cm long wires for convenient connection.
*Small size DC Gear Motor with low speed and high torque. D shaped shaft with 8mm diameter, 30mm Long.
*Motors have carbon brushes for high performance. Compatible with many other planetary geared motors.
*Great replacement for the rusty or damaged DC motor on the machine.
*Typical applications: Vending equipments, pan camera, slot machine, money detector, coin refund devices, automatic doors, peritoneal machine, toys motor etc.
Description
Product Name: DC Gear Box Motor Rated Voltage: DC 12V No-load Speed: 5.2RPM Rated Speed: 4RPM Rated Torque: 30Kg.cm(3N.m) Rated Current: 0.8A Shaft Size: 8mm x 30mm(0.31" x 1.18")(D*L) Gearbox Size: 106 x 36mm(4.17" x 1.42")(L*D) Wire Length: 19cm(7.48") Total Length: 140mm(5.51") Material: Metal, Electronic Parts Net Weight: 389g Package Content: 1 x Gear Box Motor
