DC 6V 12V Gear Motor 1024GA20 Thread Flip N20 Gear Motor M4 x 55mm Shaft(6V 100RPM)
Availability: Pre-Order, Inquiry Price
About this product

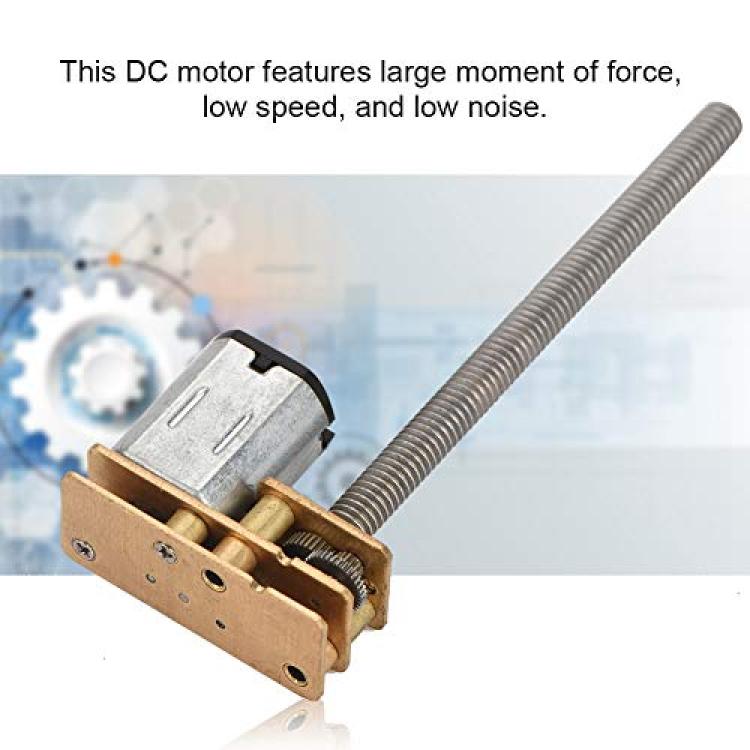

*【LOW SPEED AND LOW NOISE】This DC motor features large moment of force, low speed, and low noise
*【LONG SERVING LIFE】The brush motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life
*【USEFUL AND PRACTICAL】This electronic gear motor is good replacement for old or worn electronic deceleration motor, useful and practical
*【WIDELY USED】This electronic gear motor is suitable for lifts, landing gear, mechanical arms ,electronic toys and many other devices

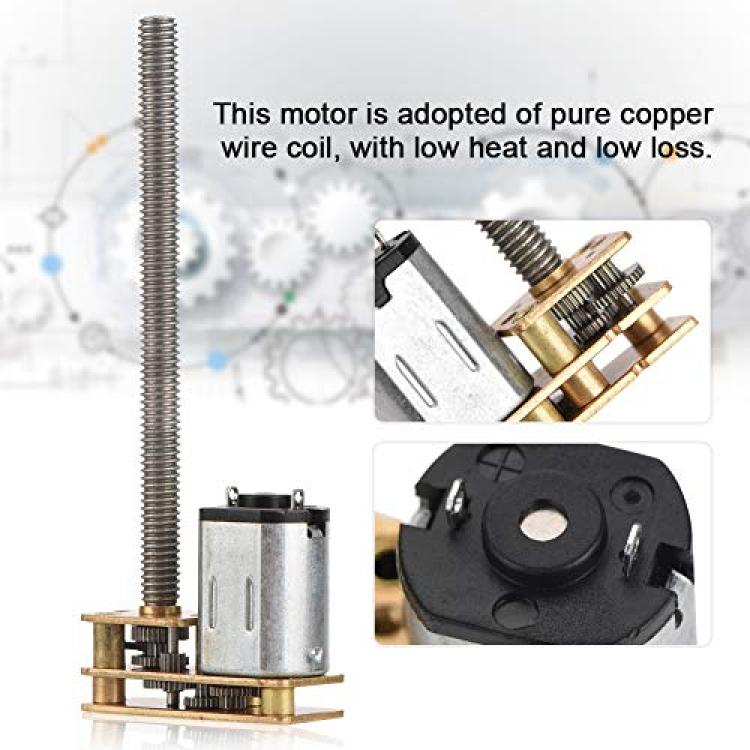

*【LOW HEAT AND LOW LOSS】This DC brush motor is adopted of pure copper wire coil, with low heat and low loss
Description
Specification:
Rated power: 2W
Optional type: 6V 30RPM, 6V 60RPM, 6V 100RPM, 6V 150RPM, 6V 200RPM, 6V 1000RPM, 12V 60RPM, 12V 100RPM, 12V 200RPM
3C rated voltage range: < DC 36V
Tread type: M4

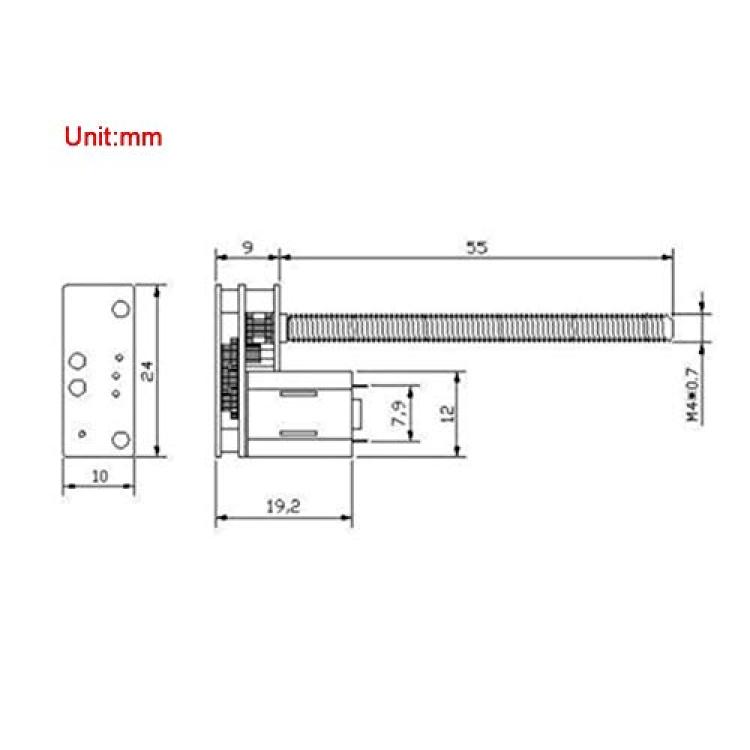

Output shaft length: 55mm / 2.2inch
Size: Approx. 6.5*2.5cm/2.6*1in
Weight: Approx. 18g/0.6oz
Voltage Gear Ratio No Load Load Torsion Stall Speed Current Speed Current Torsion Current Torsion 6V 1:298 30RPM 20mA 23RPM 40mA 440gf.cm 1.1A 3.3kgf.cm 6V 1:298 60RPM 40mA 50RPM 40mA 560gf.cm 1.1A 3.6kgf.cm 6V 1:100 100RPM 30mA 83RPM 45mA 320gf.cm 1.1A 2.25kgf.cm 6V 1:100 150RPM 50mA 130RPM 45mA 260gf.cm 1.1A 2.50kgf.cm 6V 1:50 200RPM 50mA 180RPM 45mA 160gf.cm 1.1A 1.60kgf.cm 6V 1:10 1000RPM 30mA 830RPM 50mA 25gf.cm 1.1A 0.65kgf.cm 12V 1:298 60RPM 40mA 45RPM 50mA 720gf.cm 1.1A 4.6kgf.cm 12V 1:298 120RPM 60mA 100RPM 60mA 880gf.cm 1.1A 4.8kgf.cm 12V 1:100 200RPM 50mA 160RPM 60mA 550gf.cm 1.1A 3.5kgf.cm
Package List:
1 x Gear Motor
Note:
Please allow small size error due to manual measurement. Thanks for your understanding.
