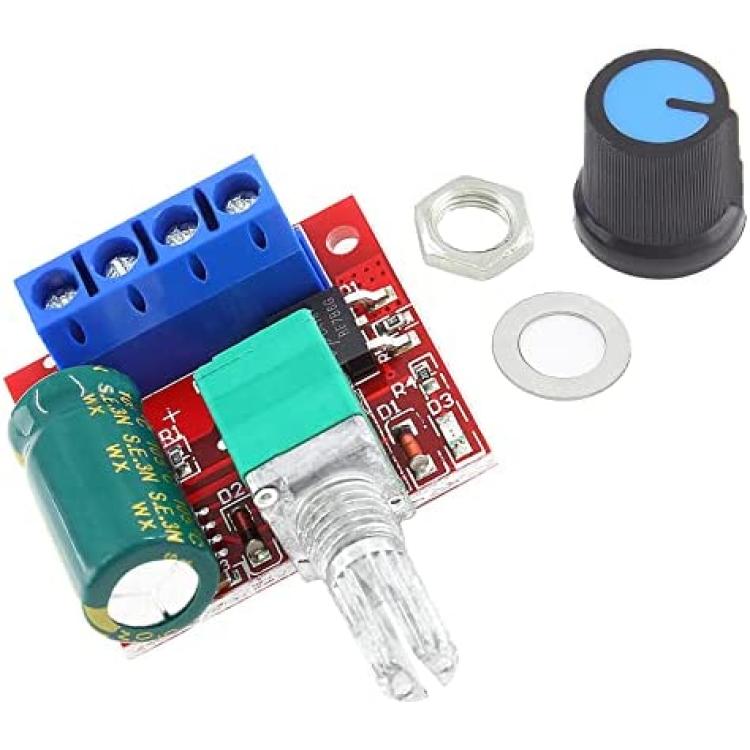

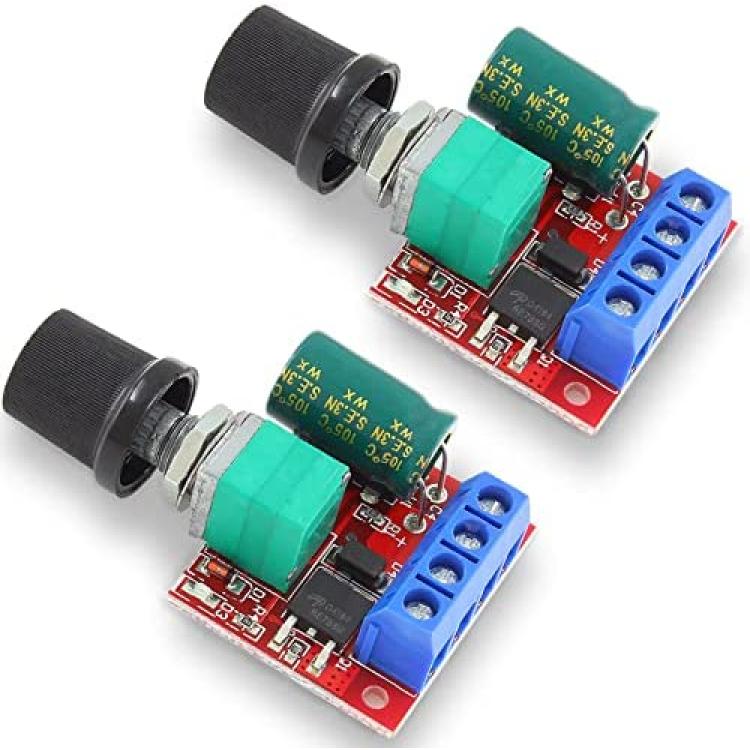

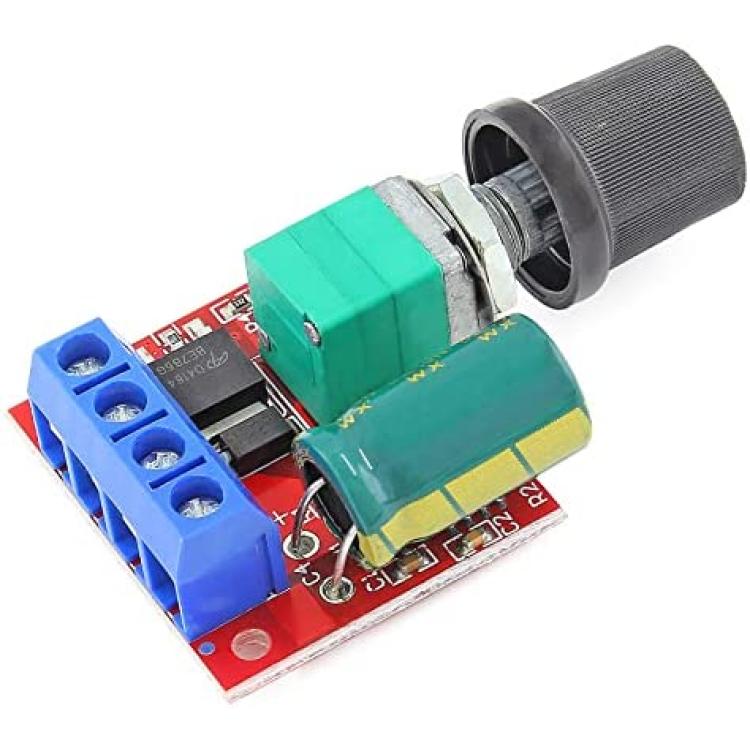

Eilumduo 5 Pcs PWM DC Motor Governor, 5V 6V 12V 24V 35V 5A Speed Regulating Switch

Eilumduo 5 Pcs PWM DC Motor Governor, 5V 6V 12V 24V 35V 5A Speed Regulating Switch

Brand: Eilumduo
Product Code: MM3773
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*The input of our DC motor governor is DC, and it cannot be directly connected to ac. for example, if it is connected to household 200V AC, the governor will be burnt out.

*Please do not connect the positive and negative poles of the DC power supply incorrectly. The governor may be damaged.

*The motor can be connected regardless of the positive and negative poles. If the running direction is inconsistent with the expectation, the direction can be changed by adjusting the line sequence. Adjusting the potentiometer knob can change the governor output duty cycle and the motor speed.

*High quality materials, quality assurance, long service life, self-contained 5A automatic recovery fuse. When the current is too large, it will automatically power off. After the temperature drops, it can automatically resume operation. It is equipped with an ultra-small led dimmer.

*Hassle-Free Warranty: Eilumduo guarantee high quality and good service. Here with our 30-day money back risk-free purchase guarantee, order now! If you are not satisfied in any way, Refund or Replacement for any quality problem.

Description

About Us:
Eilumduo focus on retail and wholesale hardware items and other accessories, all of the products we sell are strictly selected, we provide high quality, the most popular, affordable price products to worldwide.

Eilumduo 5 Pcs PWM DC Motor Governor, 5V 6V 12V 24V 35V 5A Speed Regulating Switch

Features:
It is equipped with 5A automatic recovery fuse. When the current is too large, it will automatically cut off power. After the temperature drops, it can automatically resume operation.
Specification:
Working voltage: dc4.5v-35v
Output current: 0-5A
Output power: 90W
Quiescent current: 70 ? A (Standby mode)
PWM duty cycle: 1%-100%
PWM frequency: 20KHz
Module size: 30x26mm
Notes:
All dimensions are measured manually and may be 1 - 2mm deviated.
There may be some color aberration due to lighting problems. Please understand.
