T-Motor Velox V50A 6S 4IN1 32BIT ESC, Adopt QN3109 1.5mΩ MOS, Cost- Effective Choice Enjoy The Flight
Availability: Pre-Order, Inquiry Price
About this product
*1. Each time ESC is connected to the system, input throttle signal will be detected automatically when powered on and execute corresponding throttle mode;
*2. When BLDC motor is connected to the system for the first time, or RC equipment is changed, throttle calibration is required. Please skip throttle range calibration when input signal is Dshot mode.
*3. Dont flash any other firmware to avoid ESC damage.

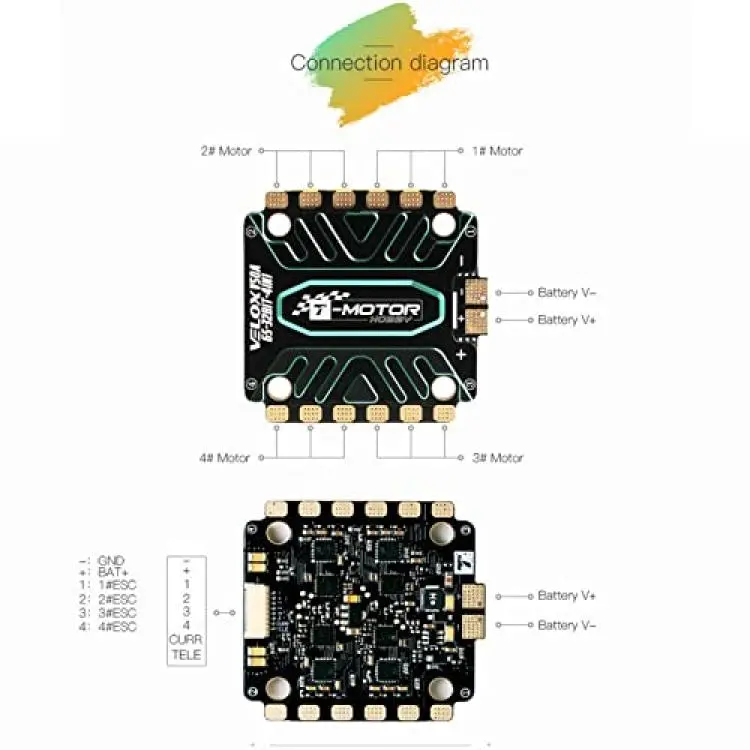

*4. Please repeatedly check if the polarity and connection sequence are correct before power up. Wrong connection would damage the equipment.
*5. Please power off first when pluging or making any connections.
Description
SPEC?
Model? V50A
Current? 50A
Peak current? 55A
Input Voltage? DC10V-27V(3-6S Lipo)
Weight? 18.5g
Size? 45.4×43.8×8mm
Mounting Hole? 30.5×30.5,M3
Parameter Tuning Software? BLHeliSulte32
ESC Firmware? TMOTOR T4 02
Welding tips:
1. Don't add tin wire too much and too fast in welding process in case solder ball spilling out.Â
2. Stick a layer of electrical tape above cooling fn before welding in case tin or other pollutes spotting on fin.
3. Please carefully check if there are any tin ball or bonded soldering joint before power up in case equipment damage caused by short-circuit.
4. Please use 95% or higher purity alcohol or water when cleaning PCB and don't squeeze com- ponents and wires much.
Remedies after water:
1. Please power off at first once ESC, FC or other PCBs (including motors) meet walr damage, and don't power on again.
2. Clean all clutter and dry with hairdryer.
3. Please don't power on again before making sure there is no water inslde any more. Please contact our after -sals service center ASAP.
4. If you can see solder jolnts or bunt traces on components, which means this power section has burned out. Please don't power on again then load to further damage.
