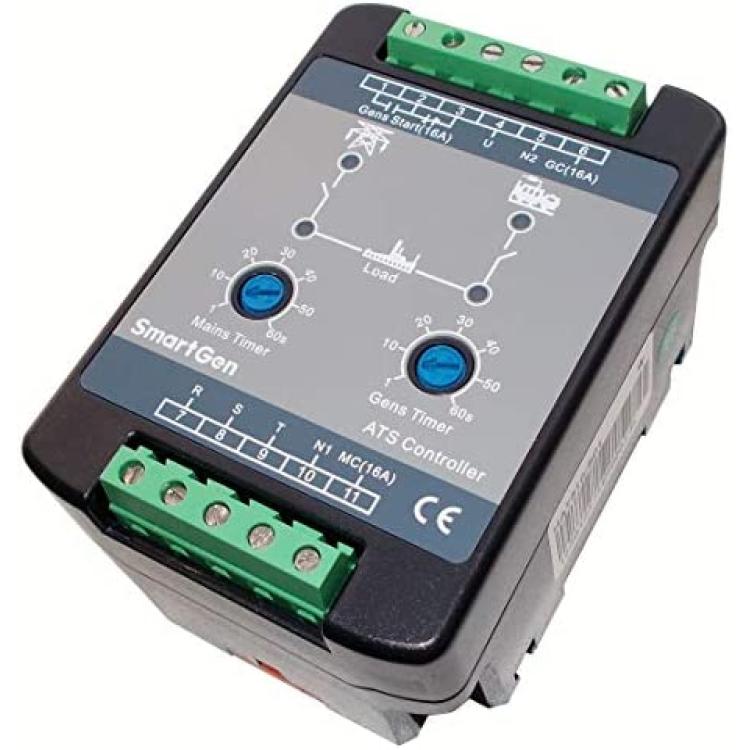

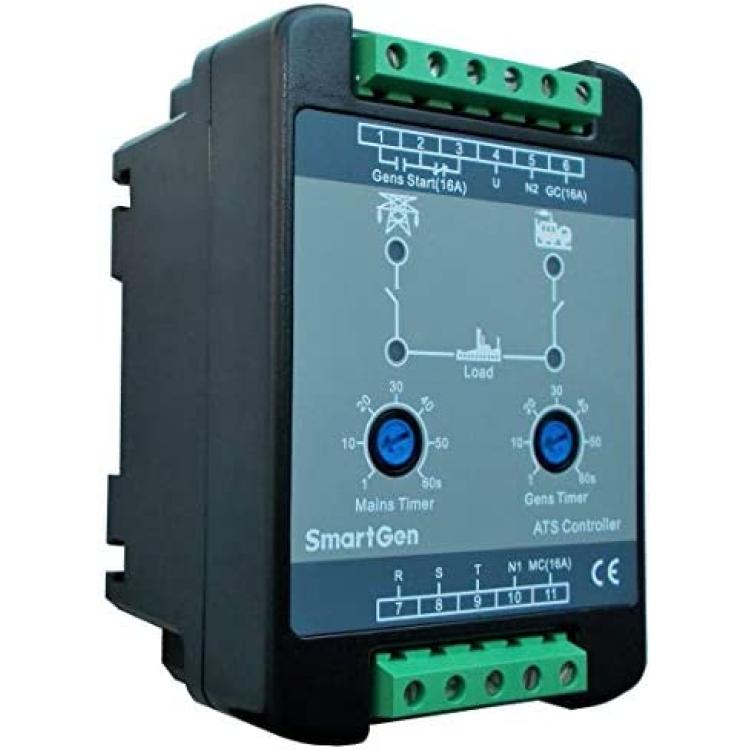

SMARTGEN HAT310-S01 ATS Controller 120/240VAC, 50-60Hz, 1-3 phase version

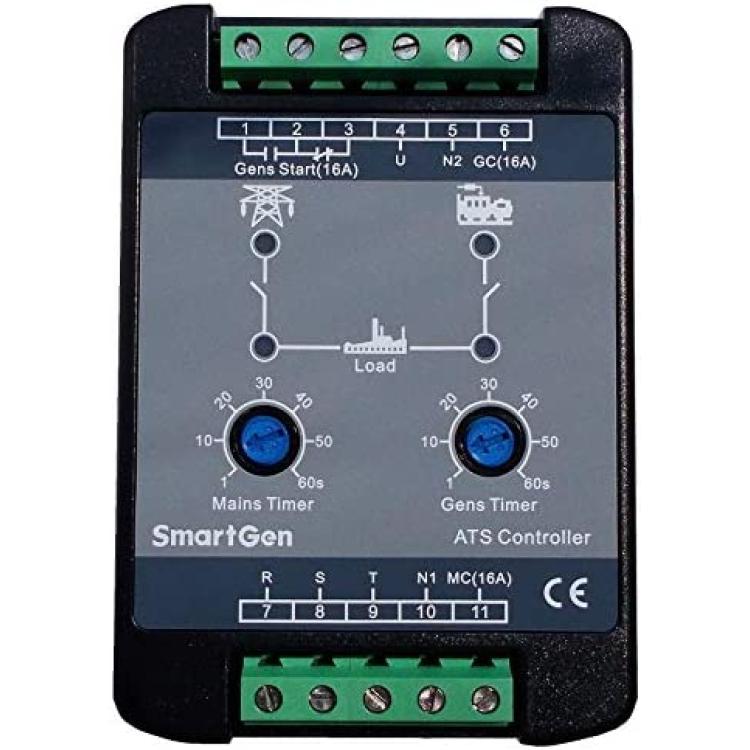

OVERVIEWHAT310-120V ATS Controller is suitable for 2-stage of PC, and ATS of CC class (close signal isconstant output). It can accurately detect 3-phase 4-wire mains voltage and generator single phase voltage. When mains under voltage and loss of phase occurred, HAT310-120V will control ATS transferafter delay. If mains are unavailable, the controller has the function to initiate signals to start gen-set. PERFORMANCE AND CHARACTERISTICSHAT310-120V controller can detect 3-phase 4-wire mains voltage/generator single phase voltage and control ATS. Main characteristics are as follows, 1) With automatic charge and automatic recovery function.2) With under voltage and loss of phase detection function.3) LED indicators on the panel can show working status of controller clearly.4) Applicable for 2 isolated neutral line.5) Mains normal delay configured via potentiometer (range: 1~60s), and generator normal delay via potentiometer (range: 1~60s)6) Mians is unavailable, if any phase voltage belows minimum working voltage or phase loss occurred gen-set will be started.7) Output contact capacity of mains and generator transfer relay is 16A AC120V, which can directly used to drive switch conversion.8) Output contact capacity of GENS START relay is 16A AC120V, it is volt free normally-open/normally-closed contact.9) Strong anti-electromagnetic interference performance enable controller to use in the environment with strong electromagnetic interference.10) Modular design, self extinguishing ABS plastic shell, pluggable terminal, compact structure;11) Two installation ways: internal 35mm slide-way and internal screw mounting.SPECIFICATION Operating Voltage - AC power A1N1/A2N2 supply. Rated AC120V (range: AC90~150V)Power Consumption Under rated voltage, power consumption of voltage circuit is not more than 2W AC Voltage Input: - 3-phase 4-wire (120/208 VAC), 2 phase 3-wire (120/240VAC), single-phas
