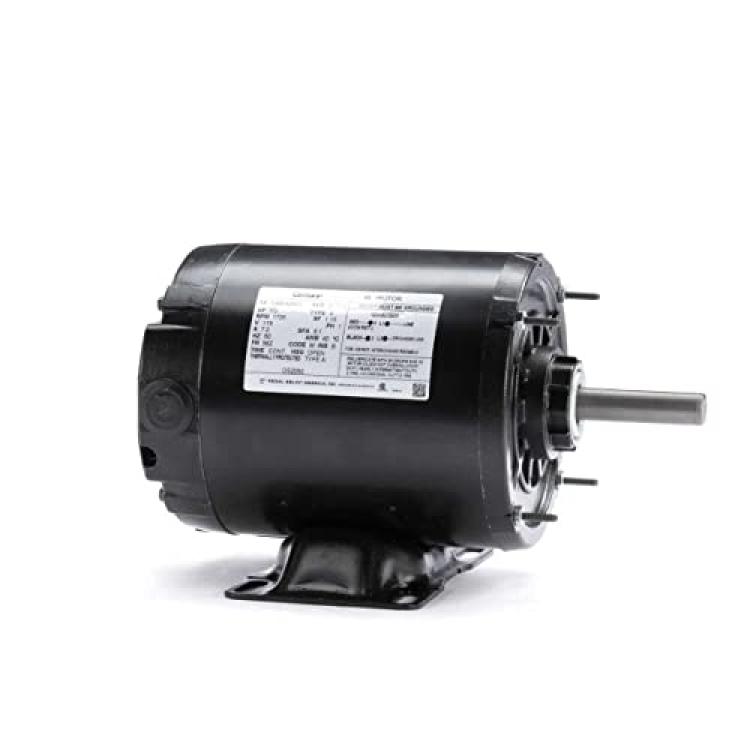

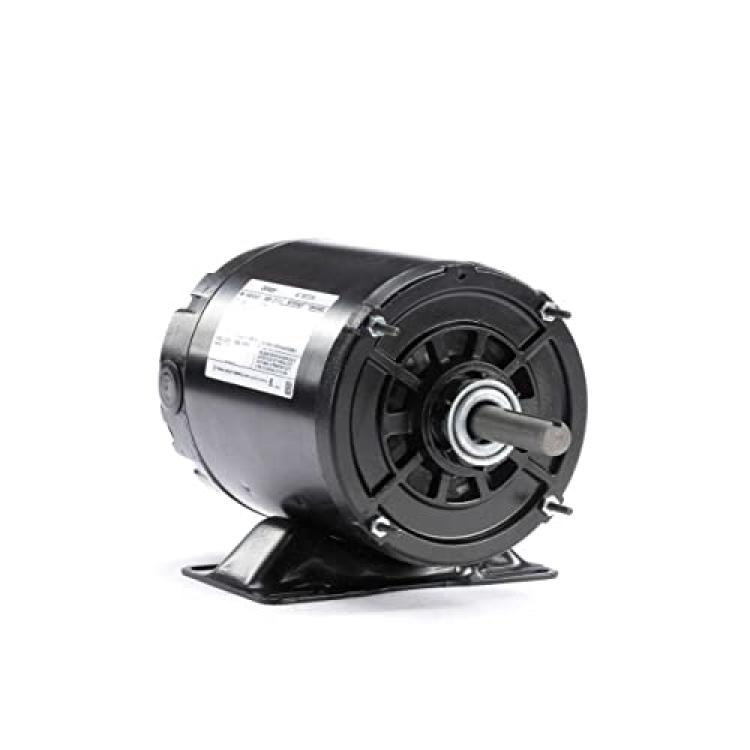

Motor, Split Ph, 1/2 HP, 1725, 115V, 56Z, Open
Availability: Pre-Order, Inquiry Price
About this product
*Price For: Each Hz: 60 Motor Shaft Rotation: CW/CCW Phase: 1 Ins. Class: B Max. Ambient Temp.: 40 Degrees C Motor Sub Application: Belt Dr Fan/Blower Motor Application: HVAC/R Item: Belt Drive Motor Motor Thermal Protection: Auto Motor Design: Split-Phase Duty: Continuous Includes: 5/8" Shaft Adapter/Key Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240
*Standards: CSA Certified Footnotes: 26, 342 Nameplate RPM: 1725 Length Less Shaft: 8-1/4" HP: 1/2 Shaft Dia.: 5/8" Full Load Amps: 8.1 Body Dia.: 5-5/8" Mounting Stud Pattern: 3-5/8" x 3-5/8" Frame: 56Z Motor Service Factor: 1.15 Motor Bearings: Ball Voltage: 115 Motor Enclosure Design: Open Air-Over Shaft Length: 2-3/8" Motor Mounting Type: Rigid Base Overall Length: 10-5/8"
*No. of Speeds: 1 Nominal Efficiency: 63.0% Country of Origin (subject to change): Mexico
*Price For: Each Hz: 60 Motor Shaft Rotation: CW/CCW Phase: 1 Ins. Class: B Max. Ambient Temp.: 40 Degrees C Motor Sub Application: Belt Dr Fan/Blower Motor Application: HVAC/R Item: Belt Drive Motor Motor Thermal Protection: Auto Motor Design: Split-Phase Duty: Continuous Includes: 5/8" Shaft Adapter/Key Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240
*Standards: CSA Certified Footnotes: 26, 342 Nameplate RPM: 1725 Length Less Shaft: 8-1/4" HP: 1/2 Shaft Dia.: 5/8" Full Load Amps: 8.1 Body Dia.: 5-5/8" Mounting Stud Pattern: 3-5/8" x 3-5/8" Frame: 56Z Motor Service Factor: 1.15 Motor Bearings: Ball Voltage: 115 Motor Enclosure Design: Open Air-Over Shaft Length: 2-3/8" Motor Mounting Type: Rigid Base Overall Length: 10-5/8"
Description
' Belt Drive Motor, Split-Phase, 1/2 HP, Nameplate RPM 1725, Voltage 115, 1 Phase, Frame 56Z, Open Air-Over, Full Load Amps 8.1, 60 Hz, Rigid Base Motor Mounting Type, Motor Thermal Protection Auto, Ins. Class B, Motor Service Factor 1.15, Ball Motor Bearings, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Overall Length 10-5/8 In., Shaft Dia. 5/8 In., Shaft Length 2-3/8 In., Includes 5/8 In. Shaft Adapter/Key '
