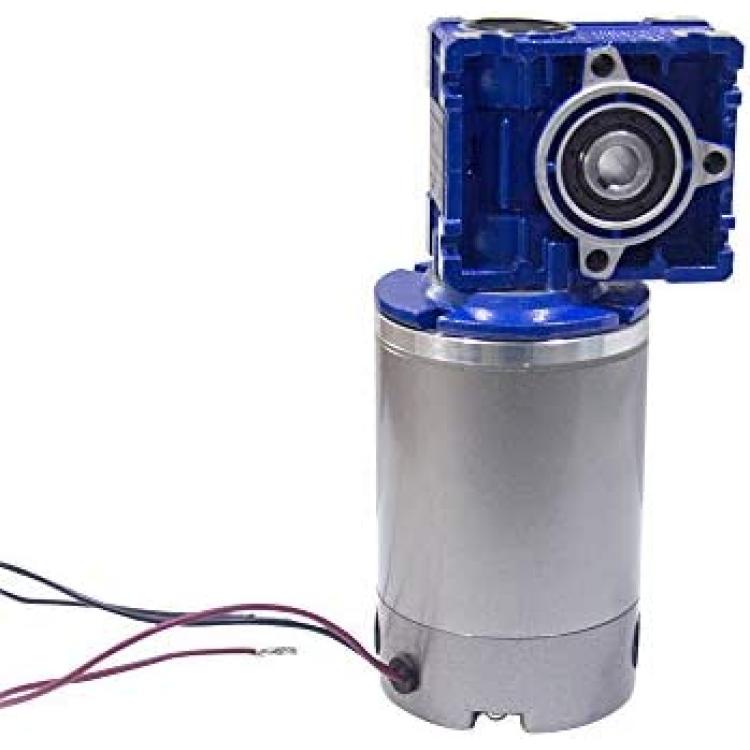

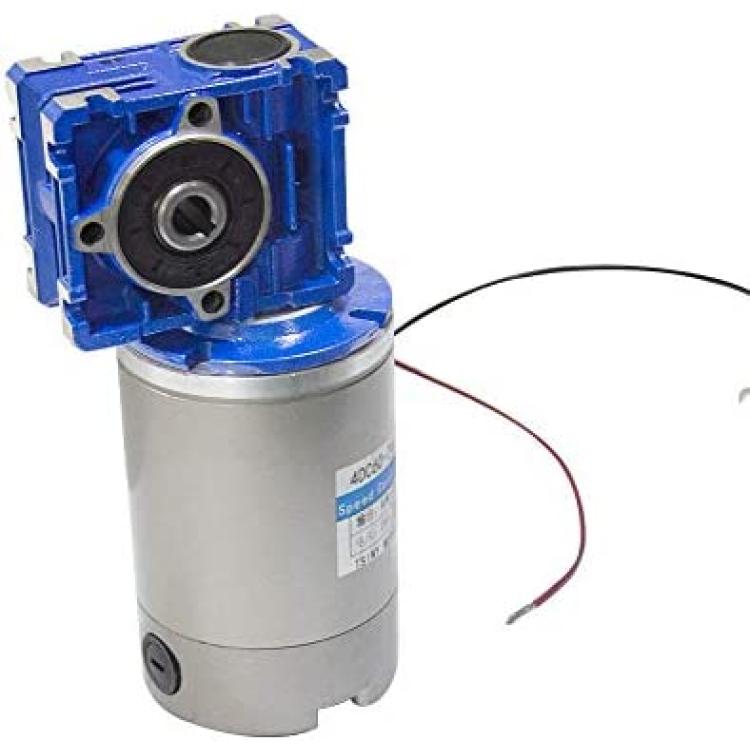

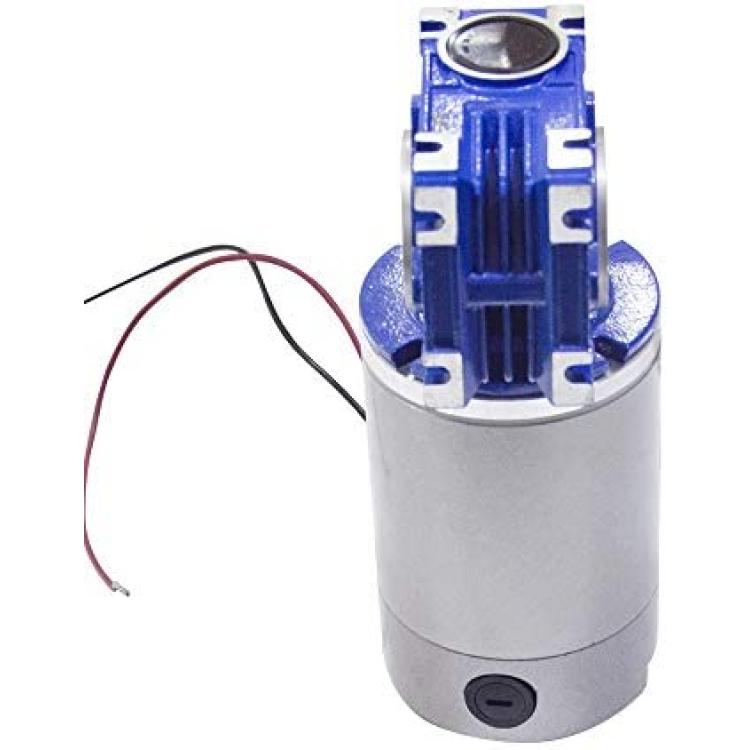

Bemonoc High Torque DC Motor 12V 30RPM Power 60W Turbine Worm Gear Reduce with Gearbox Speed Reducer Ratio 60/1

Bemonoc High Torque DC Motor 12V 30RPM Power 60W Turbine Worm Gear Reduce with Gearbox Speed Reducer Ratio 60/1

Brand: ‎BBQ Driver
Product Code: MM3656
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*✔Rated Voltage: DC 12 V; No-load Speed: 30RPM; Rated Torque: 120KG.CM;Rated Current: 14 A; Rated Power: 60W; Reduction Ratio: 1/60; Protection class: IP54;

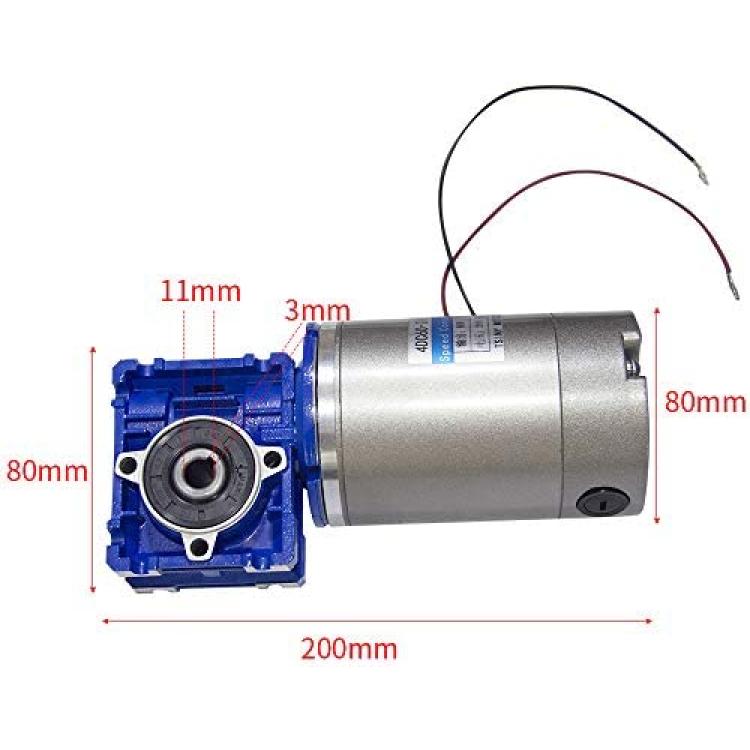

*✔Shaft Bore Diameter: 11mm; CAD Dimension reference picture; Low noise: db

*✔Quality Guarantee: All quality problems, pls send us e-mail firstly, we will give you satisfactory solution, and were concentrating on our constant improvement of product quality and customer service, pls trust our brand "BEMONOC" and give us the chance, thanks!

*✔There are so many different watts, volt and size of the motor that we couldnt write them all, if you need other motor, pls contact us via E-mail freely, thanks!

*✔Application: Worm Gear Motors is widely used in Boat cables pulling, windows and doors opening, mini winch and other occasions.

Description

This type is miniature Worm Gear DC Motor, which can change shaft rotation direction while the wiring positive and negative be changed.It's also have addition two characteristics:
(1)With self-locking, the output shaft can't rotation when switch off, that is self-locking.
(2) Gearbox output shaft and motor shaft are come to be a rectangle, it's widely used in various of occasions that require special install size.

Why don’t motor running?
Your motor if is low speed motor, extra low speed motor should observe carefully. Connection if is correct, and other electric parts if is fine.
All products from our store was test before shipping, and with best package. If also have problem please contact us.

Install and Operate notes:
(1)Don’t store or operate in high temperature or damp environment, and avoid gas environment.
(2)The motor’s shaft axial direction and radial direction bearing stress should not exceed it ability.
(3)When install gears/sprockets/pulleys on the output shaft, don’t unusual strike. When fix motor, screws length should not be too long, or will break the parts inside motor.
About noise: DC high speed motor will produce a little noise, if very care about noise, please kindly contact us.
