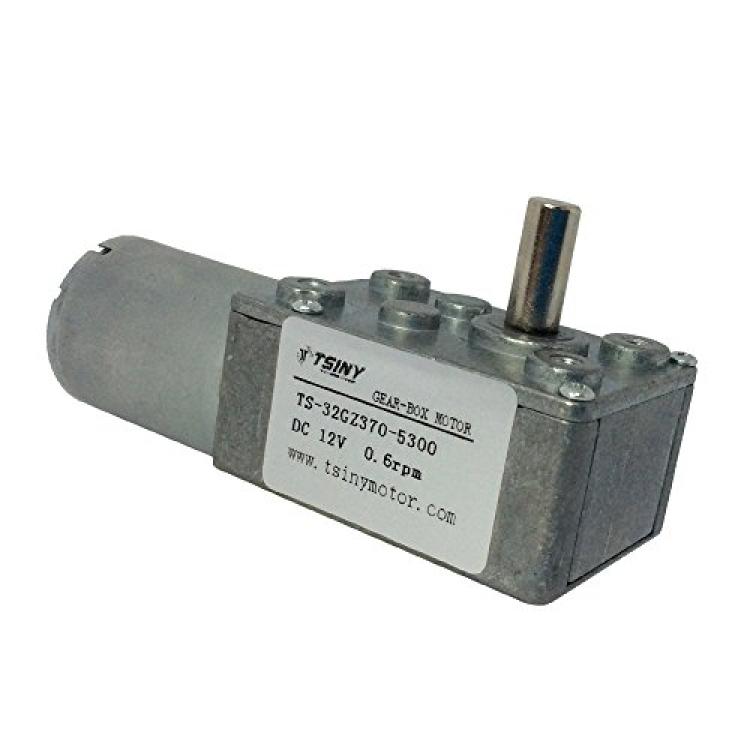

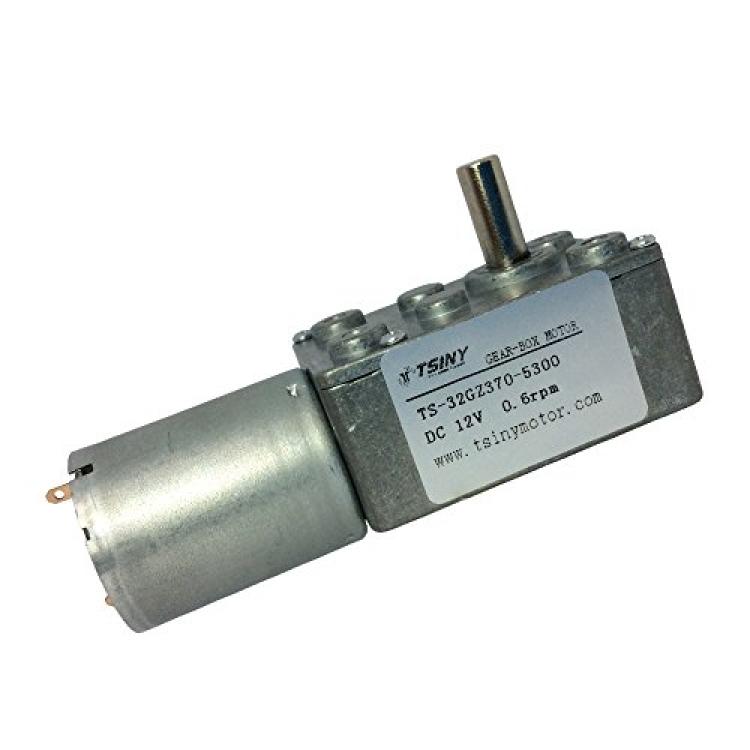

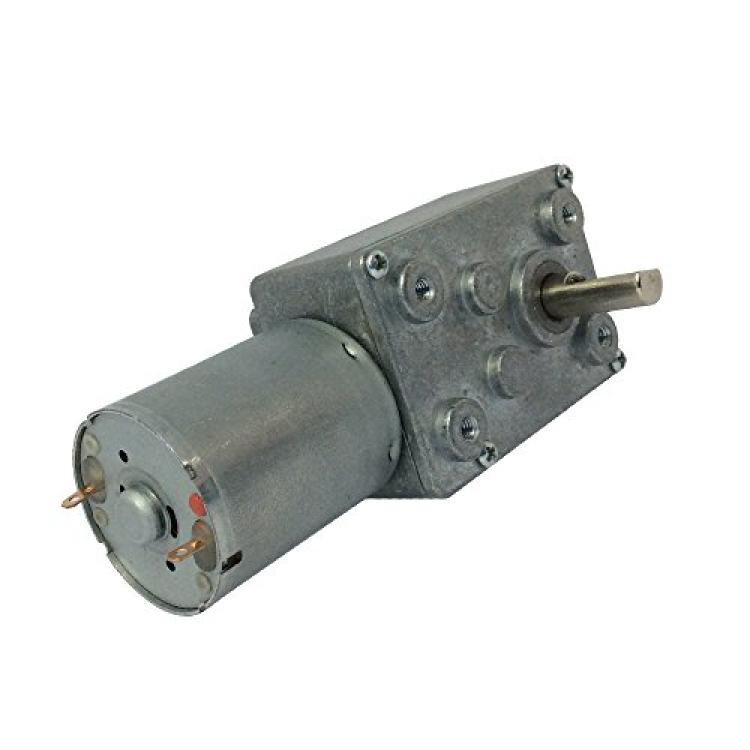

BEMONOC DC 12V 0.6RPM 6mm Shaft Low Speed High Torque Turbine Worm Gear Motor

BEMONOC DC 12V 0.6RPM 6mm Shaft Low Speed High Torque Turbine Worm Gear Motor

Product Code: MM139
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*✔Type: DC Worm Gear Motor; Rated Voltage: DC12V; No-load speed: 0.6RPM; Rated Torque: 25kg.cm; Rated Current: 0.09A;

*✔Reduction Ratio: 1/5300; Material: Metal; Commutation: Brush; Protection Class: IP54; Low Noise: db

*✔Gear Motor Body Dimensions(exculde shaft):3x1.25x1.06inches(L*W*H); Out Shaft Dimensions:0.53*0.23inches(L*D) with 0.047*0.43inches flat cut off;

*✔Usage: windows and doors, household electrical appliances, Car, Boat and Robot model, DIY engine, home automation, mini winch and other occasions;

*✔Package: 1PCS x DC Geared Motor; if you need other voltage and rpm, pls contact us, there are many other models of this motor in store.

Description

This type is miniature Worm Gear DC Motor, which can change shaft rotation direction while the wiring positive and negative be changed.It's also have addition two characteristics:

(1)With self-locking, the output shaft can't rotation when switch off, that is self-locking.

(2) Gearbox output shaft and motor shaft are come to be a rectangle, it's widely used in various of occasions that require special install size.
