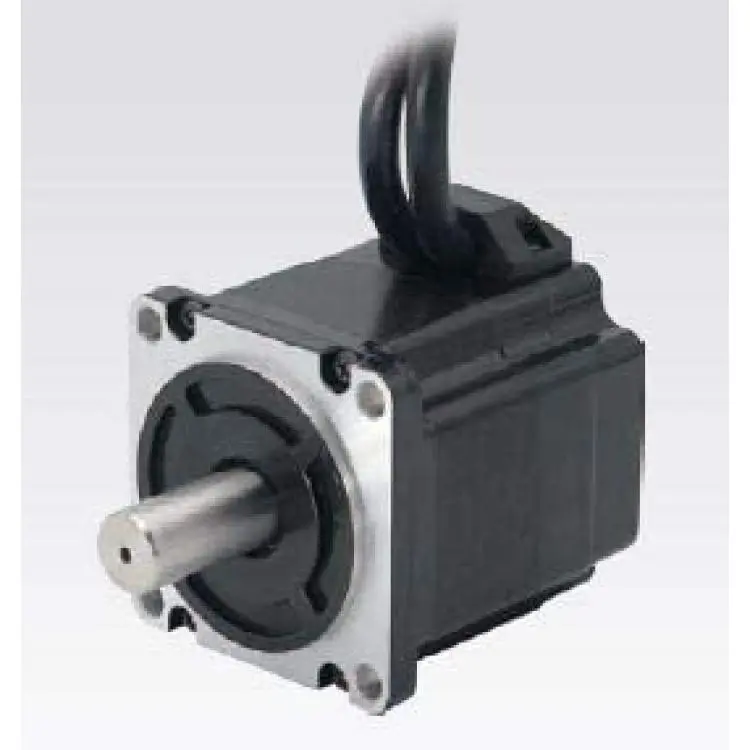

60mm BLDC motor 48 V 3000 rpm (Rated Torque 0.5 N.m)
Description
Performance Parameters:
Rated voltage:48 V
Rated Speed: 3000 rpm
Insulation Class: B
Duty Type: S1
Feed Back Method: Hall Sensor
Commutation Angle: 120°
Dielectrical Strength: 500 VAC / 1 KHz / 1 mA / 1 s
Insulation Resistance:100 Mohms / 500 VDC
Rated Power: 157 W
Rated Torque: 0.5 N.m
Rated Current: 4.7 A
Resistance (line-line): 0.9 ohms
Inductance (line-line): 1.1 mH
Winding Connection type: Star
Pole Pairs: 4

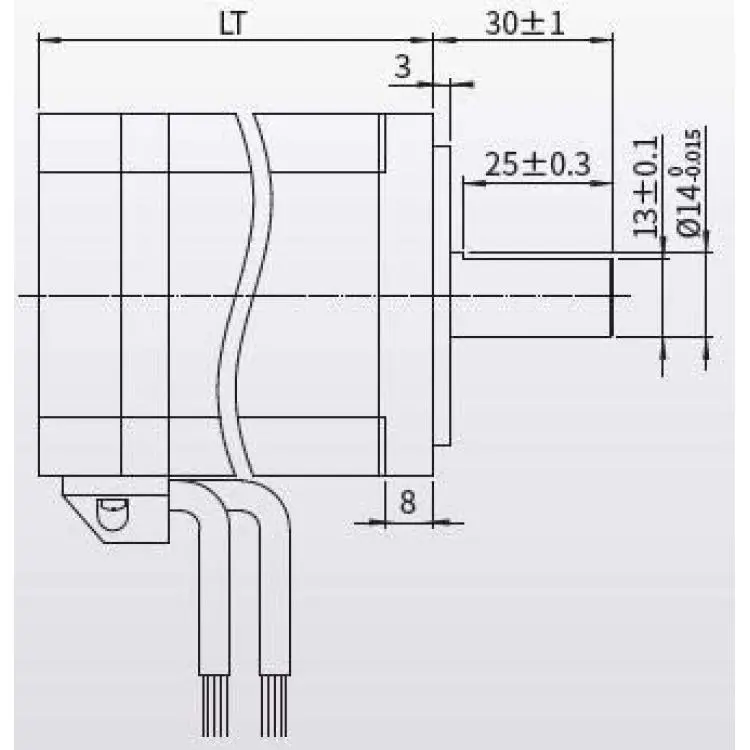

Length (LT): 85mm (refer to picture)
Mass: 1.2kg
Material:
End Cover: Aluminium Alloy
Bearing: Deep Groove Ball Bearings
Magnet: Sinter NdFeB
Shaft: Carbon Steel
