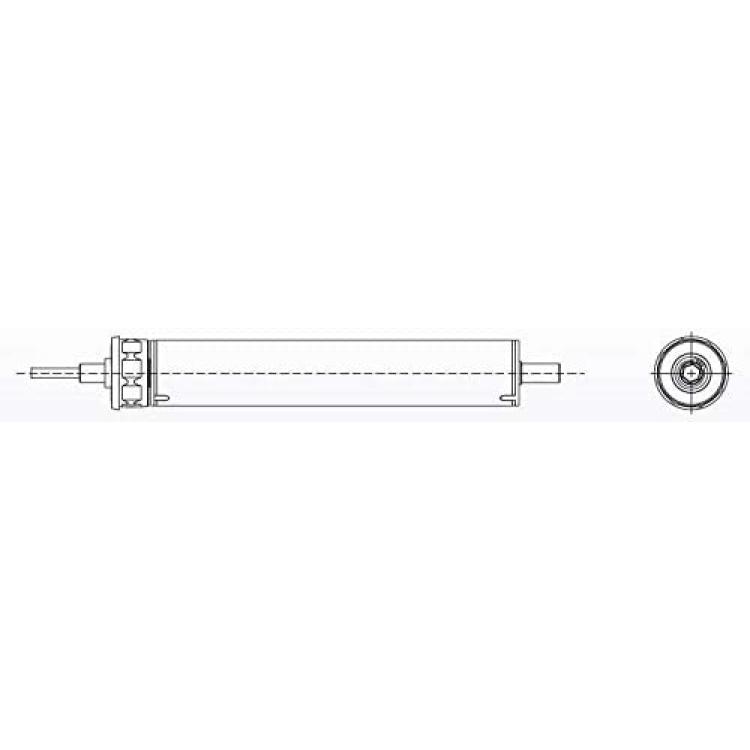

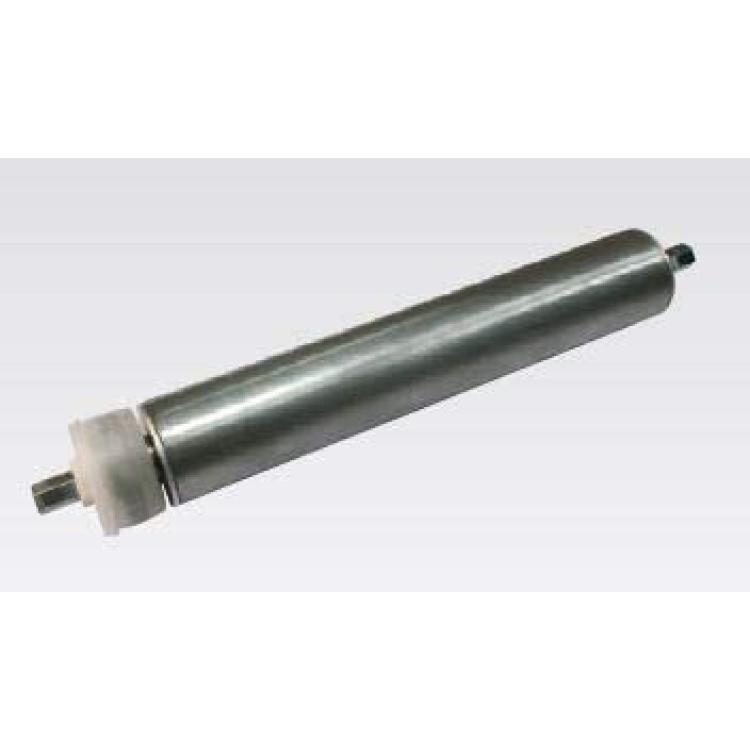

BLDC drum motor 24 V 4 pole 3 phase (5000 RPM 0.06 N.m)
Description
Performance Parameters:
Rated voltage:24 VDC
Phases: 3
Number of Poles: 4
Rated Speed: 5000 rpm
Rated Torque: 0.06 N.m
Rated power: 28 W
Back Emf Coefficient: 6
Insulation class: E
Noise: 45 dba
