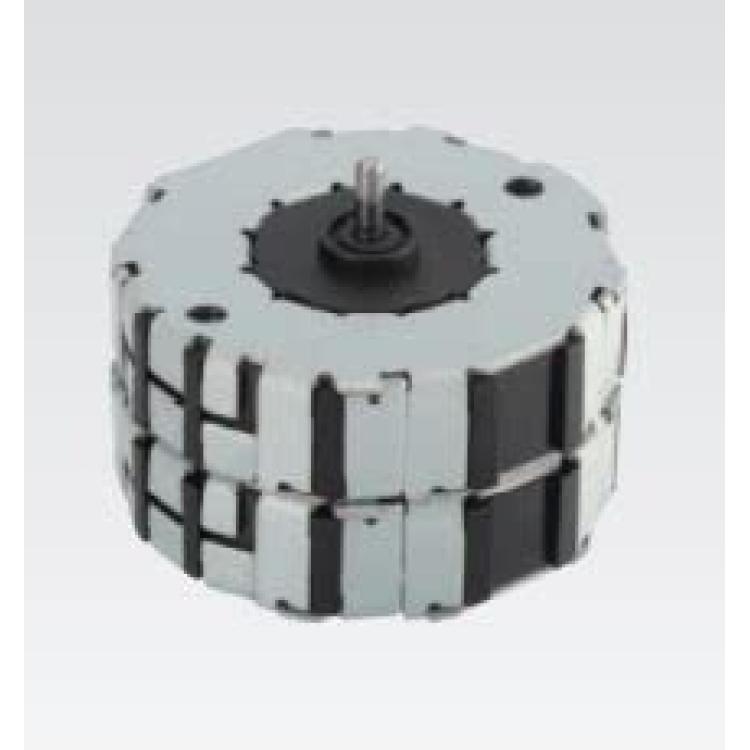

Synchronous Motor 24 VAC 6 Poles Controlled

Performance Parameters:
Insulation Class : 105
Noise dB(a): <55
Rated voltaje: 24 VAC
Rated Frecuency: 50/60 Hz
Input Power: - W
Output Power: <4.6 W
No load Power: <4.6 W
Rated Current: ?190 ?50Hz 10?F?mA
Resistance: 110 Ohms
Rated Speed: 500/600 r/min
Output Torque: 50Hz?, ?0.0255?50Hz??0.0225?60Hz? N.m
Motor Steering: Controlled
No. Poles: 6

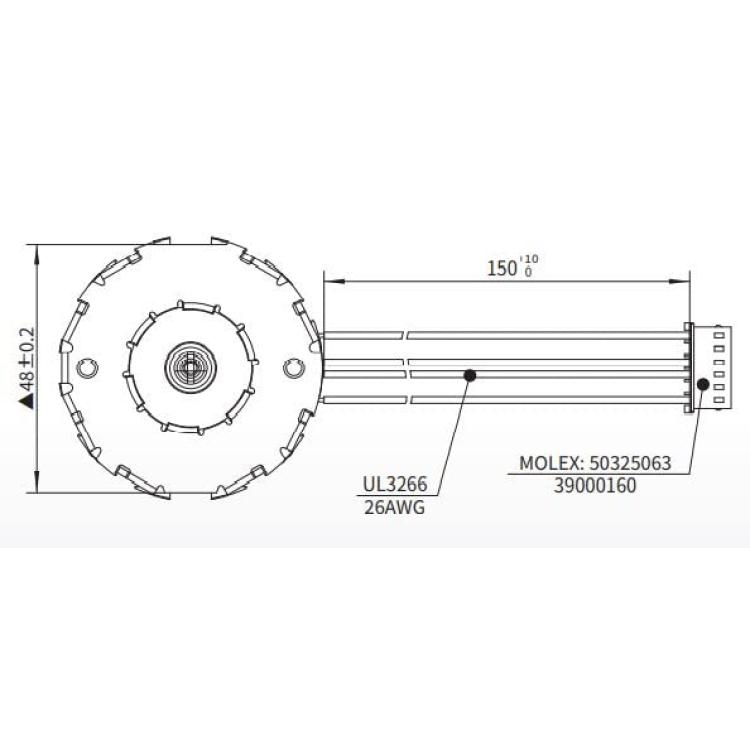

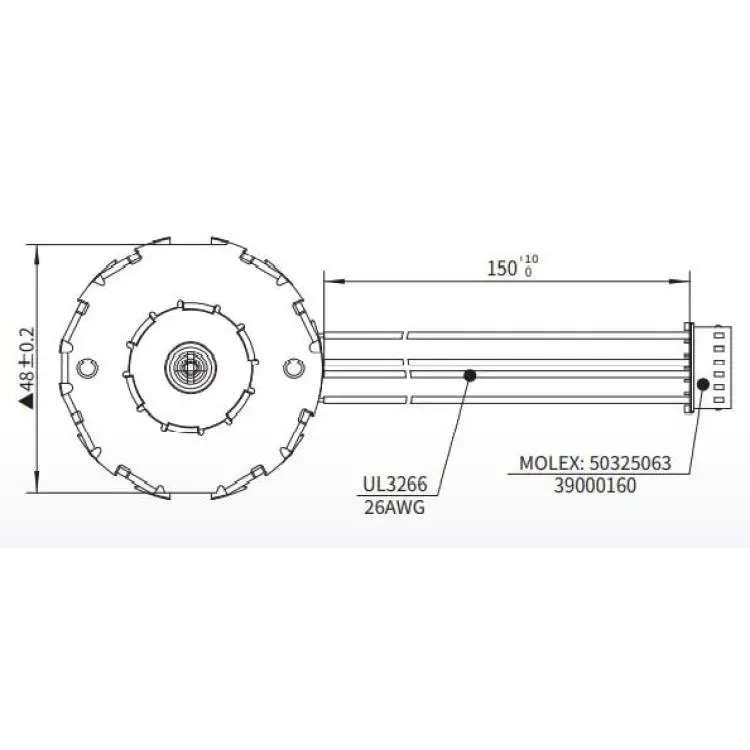

Leading Wire Mode: Leading wire + connector
Exposed Length of lead wire: 150 mm
Operation System: S1
Typical Applications:
Air conditioner
Roaster
Electrical andiron
Microwave oven
Automatic door lock
