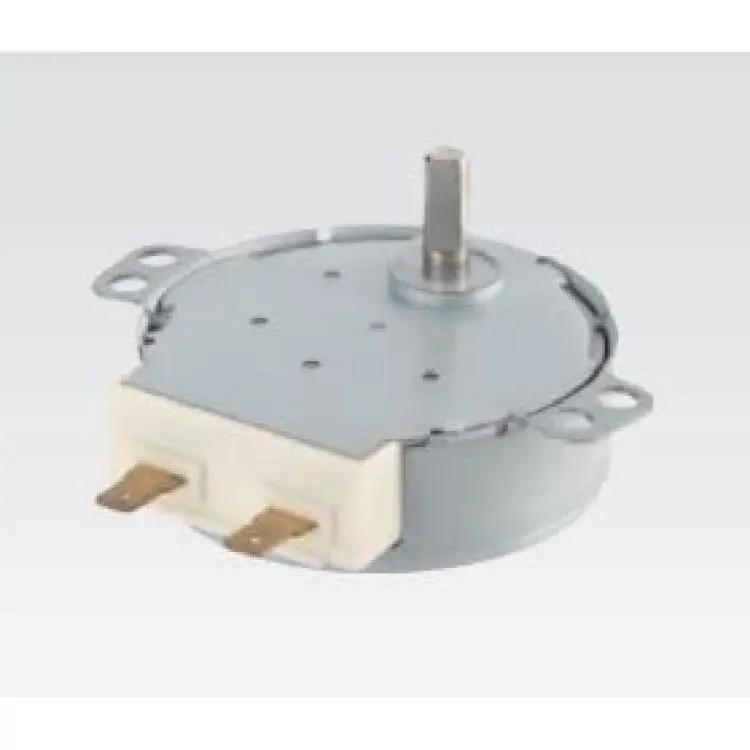

Synchronous Motor 100 VAC 4 Poles CCW (50SM16-492S)

Performance Parameters:
Insulation Class : 120
Noise dB(a): <40
Rated voltaje: 100 VAC
Rated Frecuency: 50/60 Hz
Input Power: 3 W
Output Power: 0.15 W
No load Power: <3 W
Rated Current: <40 mA
Resistance: 3700±260 Ohms
Rated Speed: 2.5/3 r/min
Output Torque: ?0.392?100V/50Hz? N.m
Motor Steering: CCW
No. Poles: 4
Leading Wire Mode: Insert Style
Exposed Length of lead wire: 0 mm
Operation System: S1
Typical Applications:
Air conditioner
Roaster
Electrical andiron
Microwave oven
Automatic door lock
