Xuulan Xianglaa-Motor Precision Micro 10mm Planetary Gear Motor, for Medical Equipment, Mini M10 Reducer Rare Earth Strong Magnetic,
About this product

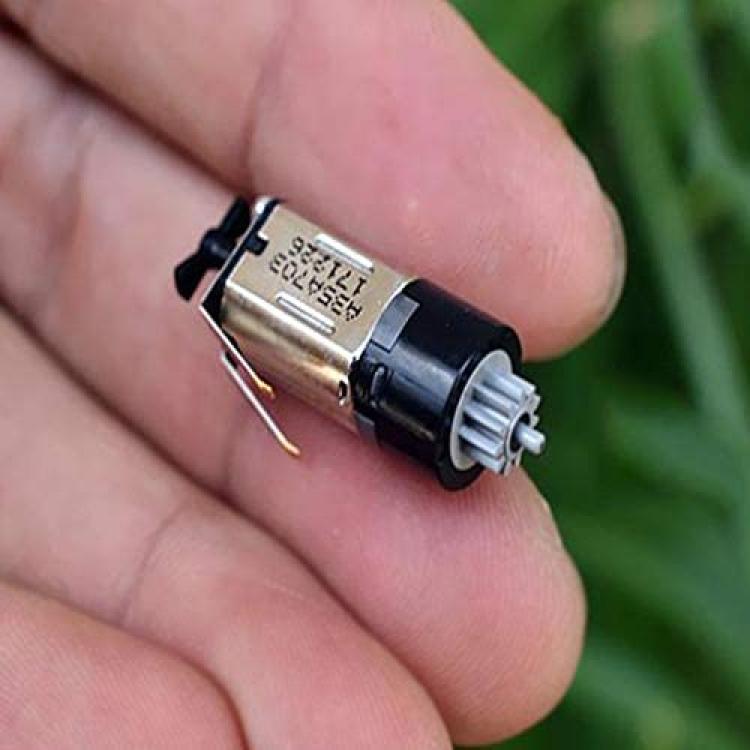

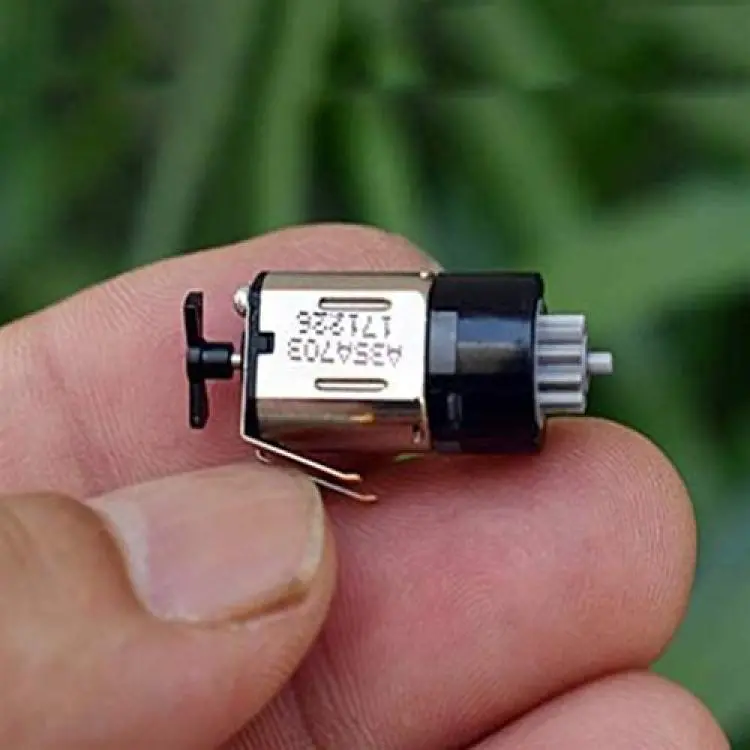

*This geared motor is a precision geared motor used in medical equipment. Its tail also has a plastic leaf that can be equipped with speed feedback.
*The motor is a M10 micro motor with rare earth strong magnets. Its rated voltage is DC 2.5V , But it can also be pressurized to DC 3V, DC 3.7V, DC 4.2V, or even DC 5V.
*Planetary gearbox outer diameter: 9.9 MM
*High temperature resistance, high wear resistance, strong carrying capacity, strong and durable.
*Used in a variety of small equipment and experimental equipment, with a wide range of applications
Description

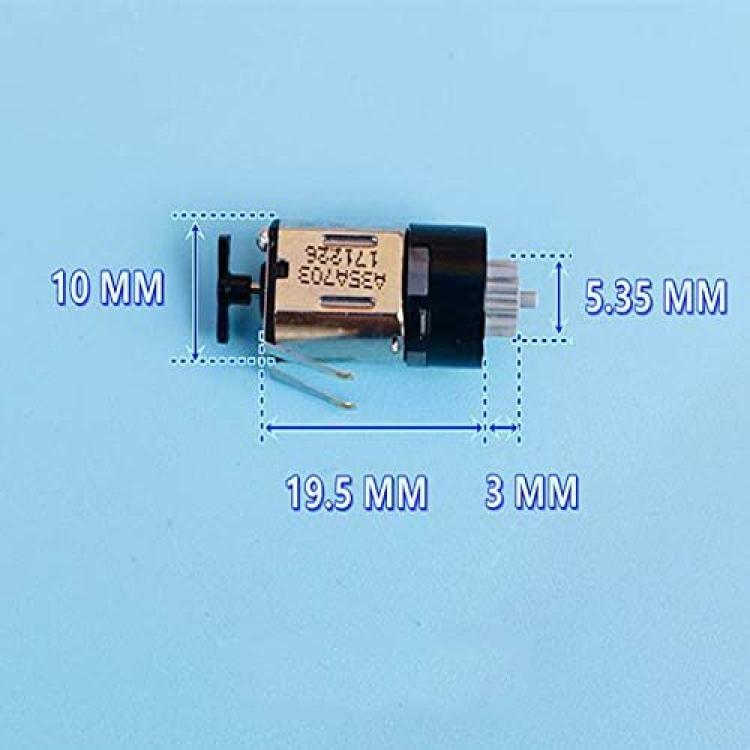

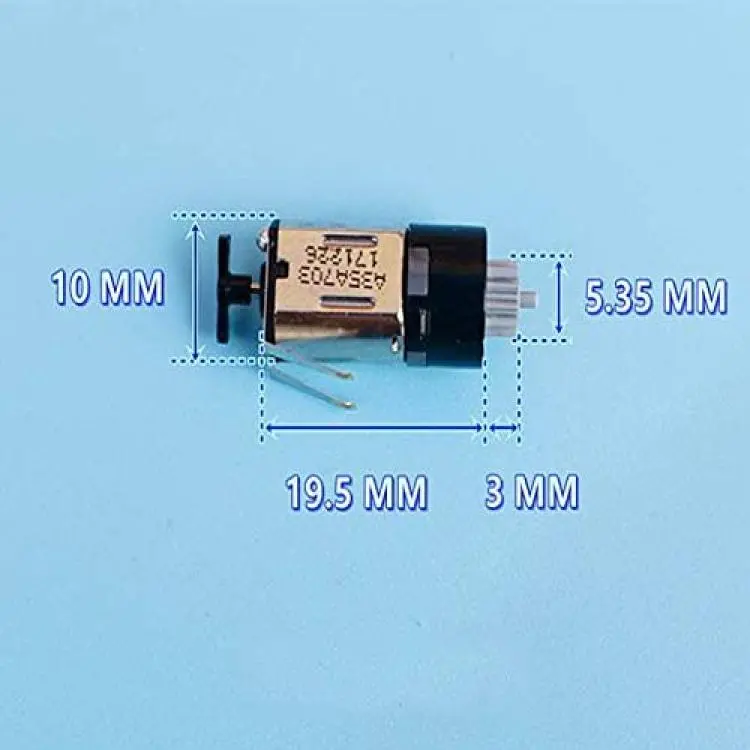

Motor size: 8 *10*12 MM (M10 motor)
Geared motor height: 19.5 MM (motor + gear box)

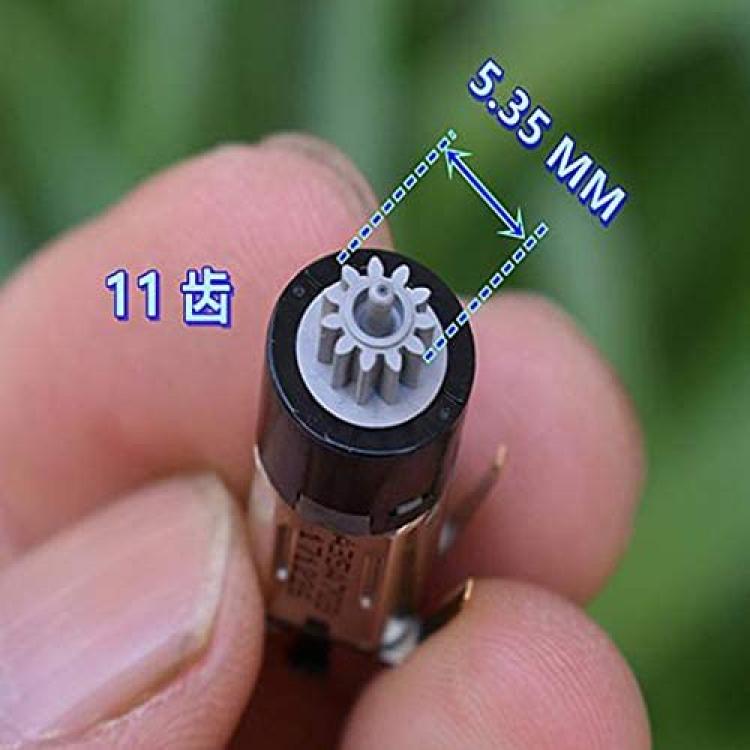

Output shaft: Gear with an outer diameter of 5.35 MM (11 teeth)
Reduction ratio: 1:171
Weight: 4g
Rated voltage: DC 2.5V
No-load current: 40MA
No-load speed: 92RPM
Rated torque: 9.8 mN.m (0.0098 N.m)
Maximum torque: 37.2 mN.m (0.0372N.m)
Power: 0.07 W
----------------------------
Test data:
Voltage: DC3V Current: 42MA Speed: 110RPM
Voltage: DC3.7V Current: 48MA Speed: 135RPM
Voltage: DC4.2V Current: 52MA Speed: 154RPM
Voltage: DC5V Current: 58MA Speed: 180RPM
----------------------------
Package Include:
1PCS * DC Motor
