DC Gear Motor, Electric D Shaped Output Shaft Gear Motor 12V High Conductivity High Torsion for Digital Products(533RPM 1: 22.5)

Feature:

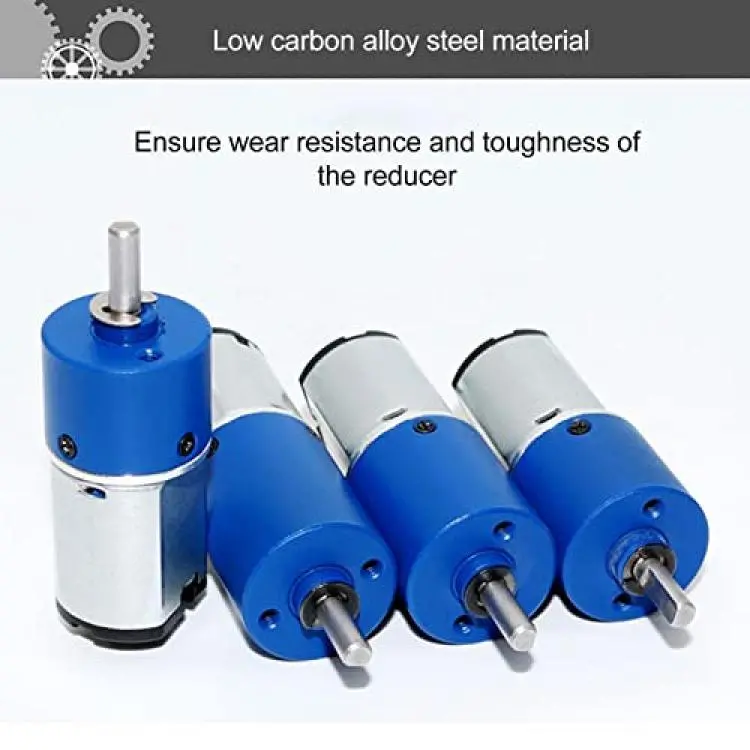

1. ALLOY STEEL: Low carbon alloy steel material ensures the wear resistance and toughness of the reducer

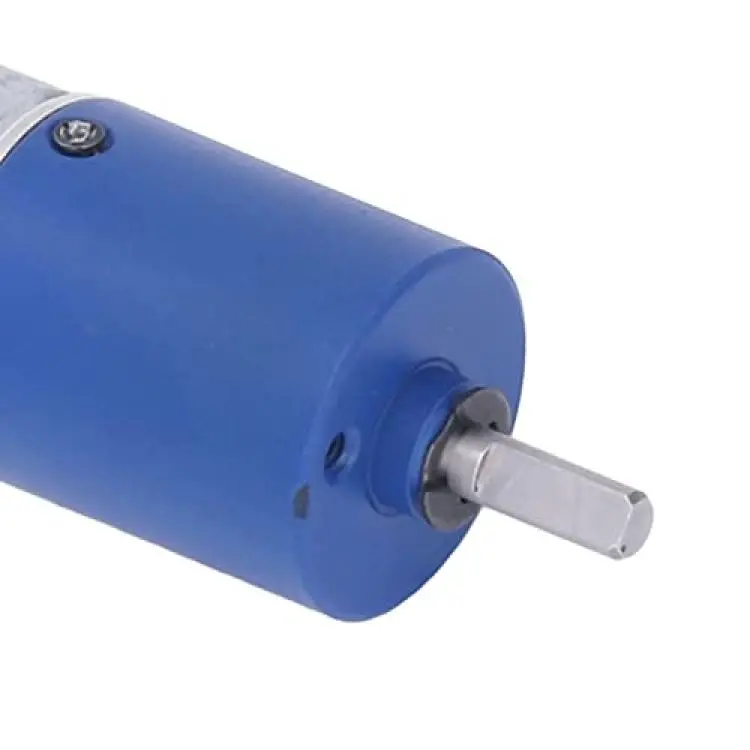

2. EASY TO INSTALL: D shaped shaft is more convenient to install, not easy to slip, save installation time

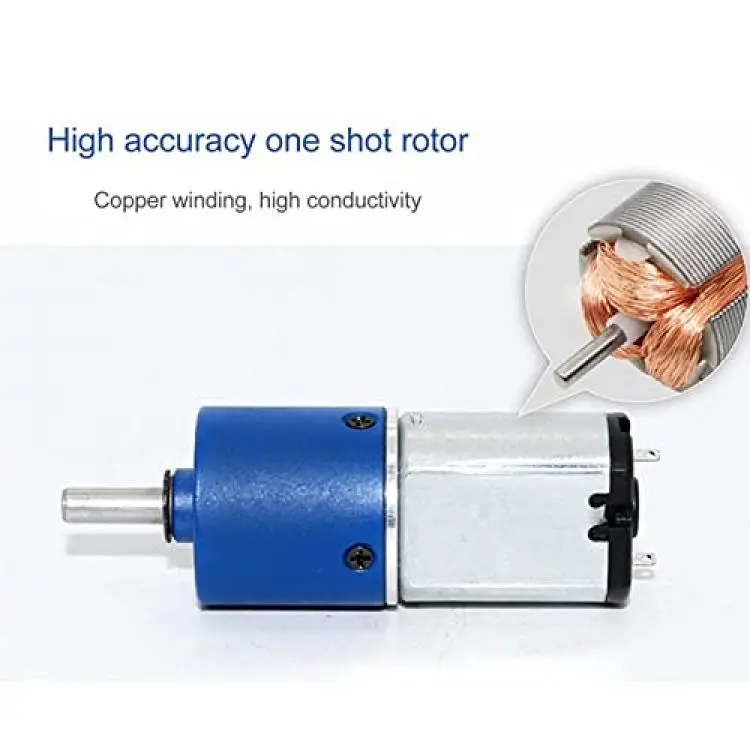

3. HIGH ACCURACY AND CONDUCTIVITY: Come with high accuracy one shot rotor, and copper winding, bring high conductivity
4. SPACE SAVING AND DUSTPROOF: Micro electric motor is light weight, space saving, fully enclosed structure, dustproof
5. WIDE APPLICATION: Planetary gear motor is mainly used in instrumentation, digital products, security monitoring, smart door locks, etc.

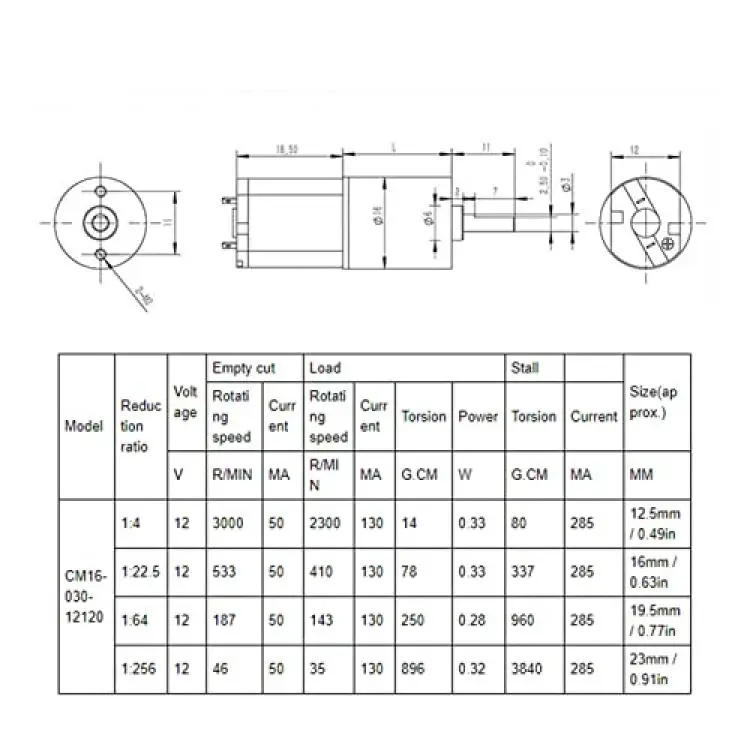

Specification:



Item Type: Planetary Gear Motor
Voltage: 12V
No Load Current: 50MA
Load Current: 130MA






Package List:
1 x Planetary Gear Motor

Note:
1. When you use the motor, there should be no binding things, such as the adhesive should not be injected into the bearing through the rotating bearing, which will hinder the operation of the motor.
2. The rotation of the shaft may have the opposite effect on the life of the motor. In order to prolong the life, please check whether your load is in accordance with the regulations, not overloaded or hanging on the shaft end with objects that hinder the rotation.
3. It is made into an eccentric heavy radiation load, which is harmful to the life of the motor.
4. Do not store in high temperature or extreme humidity, and do not place in corrosive gas, which will reduce the motor effect.
5. Do not run the motor in the surrounding high temperature and humidity.
6. When soldering is required on the motor terminals of the positive and negative poles of the power supply, the temperature of the soldering iron is 340? ± 40?, and the heating time is within 3 seconds, and the plastic cannot be deformed. During the work, let the solder point into the motor or break the end of the wire, which w
