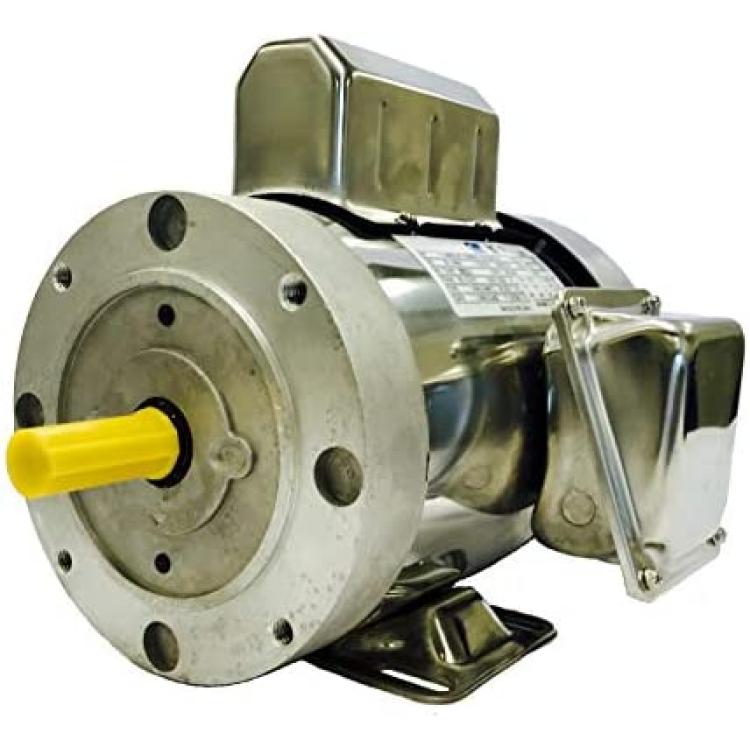

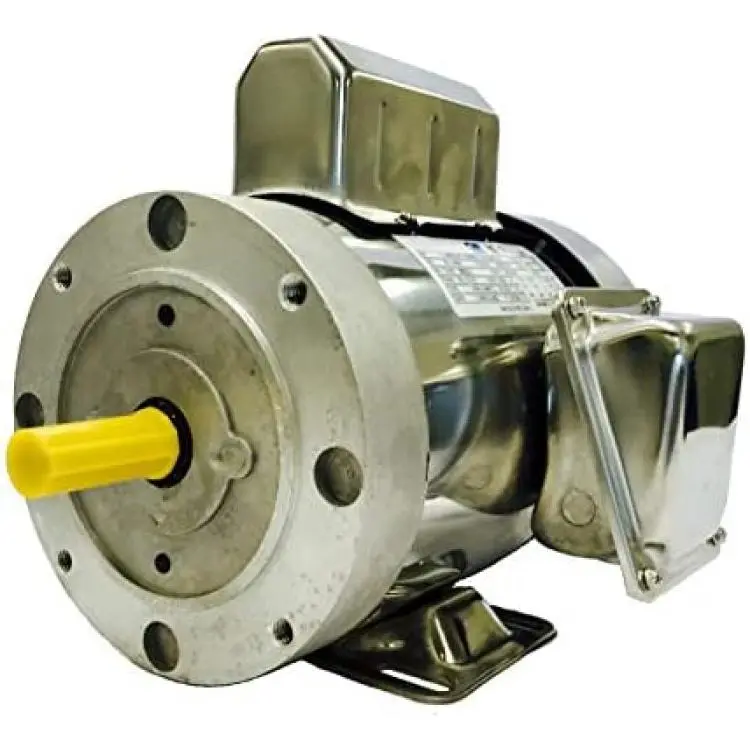

SMC YCN5654BX 1 HP Stainless Steel Boat Lift Motor, 1725RPM, 1.15 Service Factor, 56C Frame, TEFC, 115/230V, SST Boat Hoist Motor
About this product
*Easy wiring access. For most of the Up/Down switches, the connections are (1) 115V, T1+T3 to Orange, T2+T4 to White, T5 to Black, T8 to Red. (2) 230V, T1 to Orange, T4 to White, T8 to Red, T2+T3+T5 no connection, Black no connection.
*High quality and powerful Boat Lift Motor.
*56C face direct mounting.
*UL Listed and Nema Standard
*Direct replacement for any 1HP 56C frame boat lift motor, esp. for YCN5654BX, YCN5644BX, YCN5634BX series boat hoist motors.
Description
Product Description: . 1HP . 1725RPM . SF 1.15 . 56C Frame . TEFC . 115/230V Product Size: 13”x10”x10” G.W: 27 lb
