Mophorn 1 Hp Electric Motor 1725RPM 56C Frame Single Phase Industry AC Motor 11.2-5.6A 115V 230V Air Compressor Motor

Mophorn 1 Hp Electric Motor 1725RPM 56C Frame Single Phase Industry AC Motor 11.2-5.6A 115V 230V Air Compressor Motor

Name: Mophorn 1 Hp Electric Motor 1725RPM 56C Frame Single Phase Industry AC Motor 11.2-5.6A 115V 230V Air Compressor Motor
Brand: ‎Mophorn
SKU: MM2040
Availability: InStock

Brand: ‎Mophorn
Product Code: MM2040
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

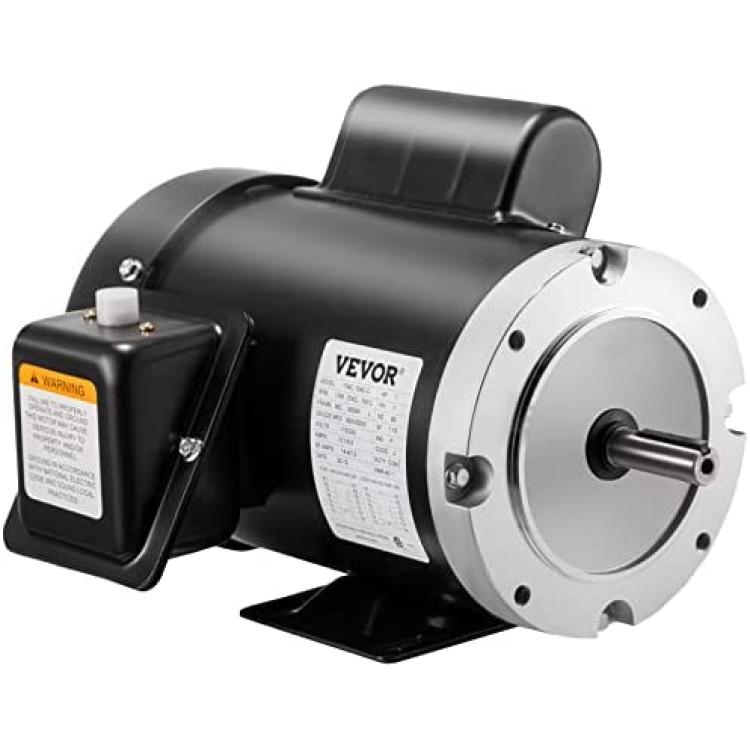

*1 HP Electric Motor: The compact and small-sized AC motors feature output 1 HP, 56C frame, and single phase. Gasketed capacitor housing and conduit boxes protect all environments.

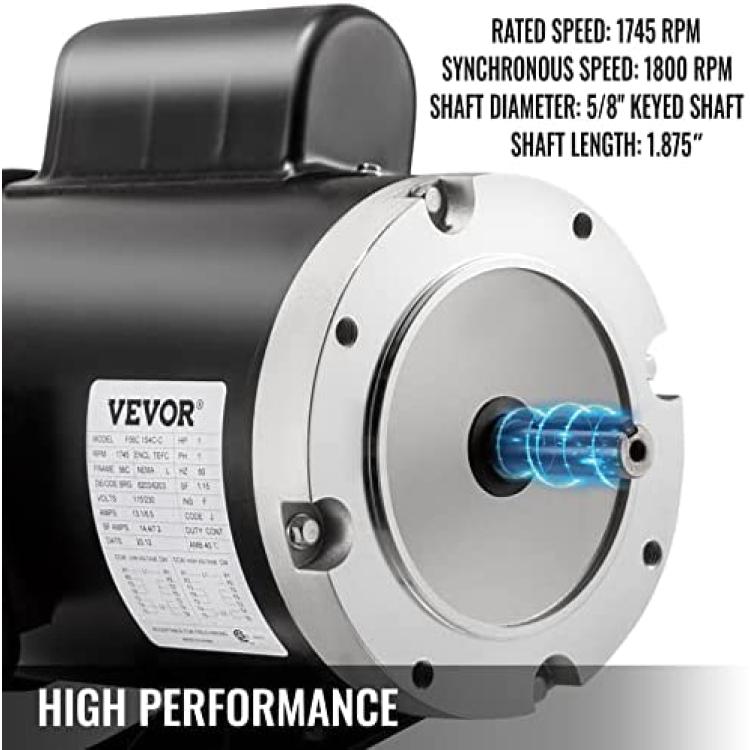

*Working Efficiency: The electric motor 56C can run at the maximum speed 1745 RPM, high working efficiency, Voltage: 115/230V 60 HZ, shaft diameter: 5/8" (1.6 cm), shaft length: 1.875" (4.8 cm). The upper hardness shaft is more durable.

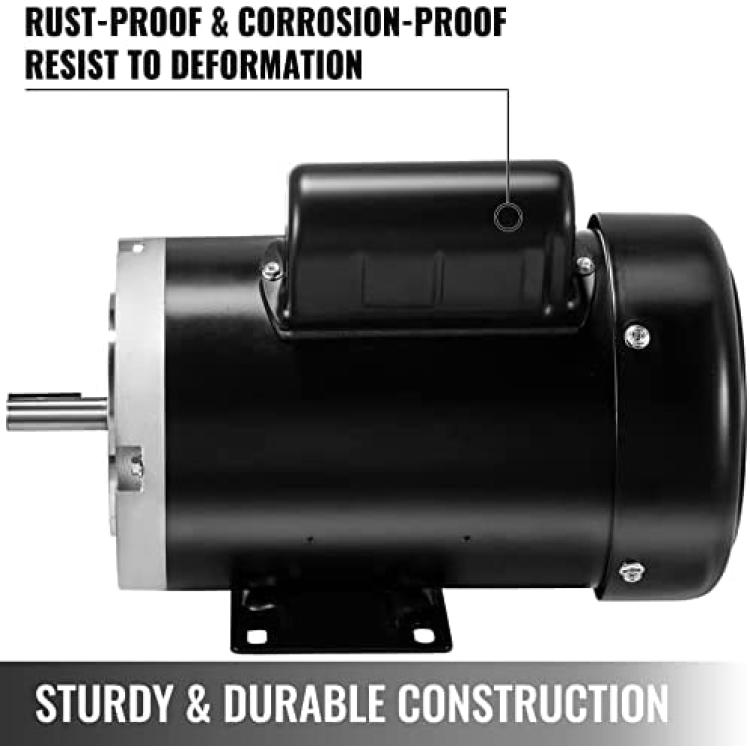

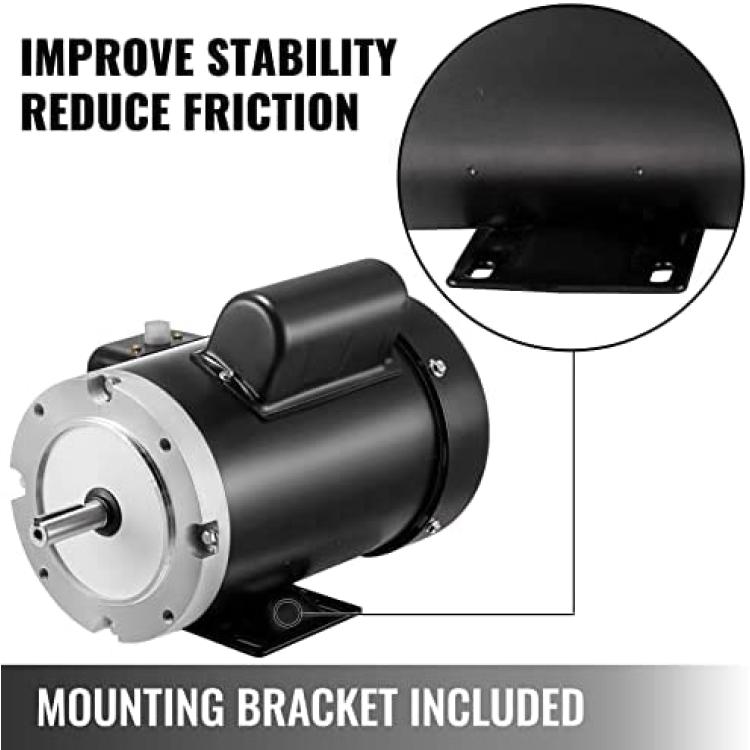

*Steel Housing: The compressor duty motor is made of high-quality steel material. The firm and solid material can protect the engine well, and the smooth appearance is easy to clean; it includes the mounting bracket, and the bracket structure is stable and easy to use.

*Multiple Application: The electric motors are commonly used in industrial and agricultural production, transportation, commercial and household appliances, and other fields. For instance, the matching of water pumps, agricultural machinery, etc.

Description

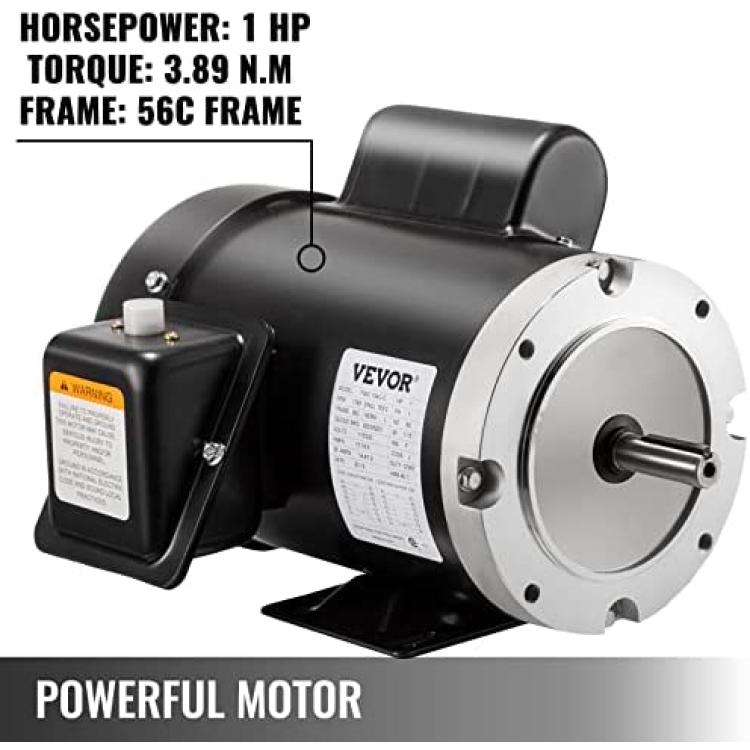

Horsepower: 1 HP, Single PhaseVoltage: 115/230V, 60 HzAmps: 13.1/6.5ARated Speed: 1745 RPMSynchronous Speed: 1800 RPMFrame: 56C FrameRated Torque: 3.89 N.mShaft Diameter: 5/8" / 1.6 cm Keyed shaftRotation: CW - CCW(Reversible) 1 x Electric Motor 1 x Product Manual Working Efficiency Steel Housing High-Speed Cooling Fan Multiple Application

Tags: 1 HP Electric Motor, Single Phase Motor, AC Motor 1725 RPM, 56C Frame Motor, Air Compressor Motor, Industrial Motor, Agricultural Motor, Water Pump Motor, CCW Reversible Motor, High Speed Motor
