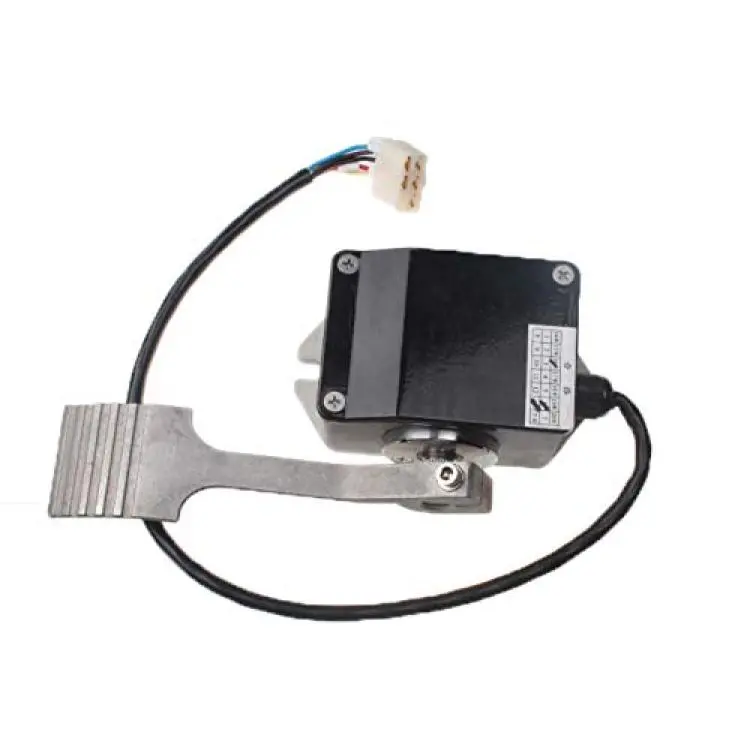

Jeenda Power Throttle Foot Electric Accelerator EFP-005 0-5K EFP713-0502 for EV Curtis Pedal Throttle 0-5K

Part Number:EFP-005 0-5K EFP713-0502

Application:EV Curtis Pedal Throttle 0-5K

 Product Description:

- Potentiometer Throttle (Foot Pedal)

- 0-5K? Speed Signal Device (3-Wire Pot Throttle)

- Model: EFP-005

Key Features:

- Model: EFP-005 (3-wire potentiometer throttle, working with CURTIS 1204M-4201 Series Motor Controller, CURTIS 1268-5403 SepEx Motor Controller and other controllers)

- Signal output: 0-5K?  ± 0.1K? (BI potentiometer P270-033B)

- Switch on/off signal: 0V - power supply voltage

- Operation temperature range: -55? –120?

- Storage temperature range: -40°C - 80°C

- Ingress protection: IP55

- Mechnical lifespan: 1,000,000 times

- Installation kit is included: bolts, nuts and washes

- Mating connector is included

Attention:

- Wires: There are 5 wires, 3 of them are potentiometer wires, and another 2 is switch wires.

- Brown: Potentiometer Wiper

- Black: Potentiometer Low

- Red: Potentiometer High

- Blue: Switch Input (common)

- Yellow & Green: Switch Output (normally open)

- Notice: This is replacement, not original parts, but it can work well for you.
