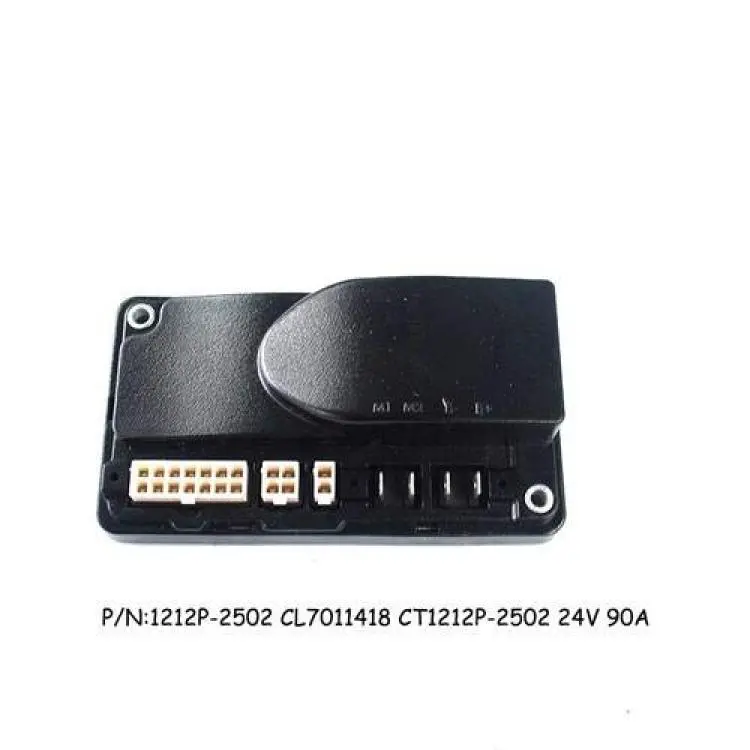

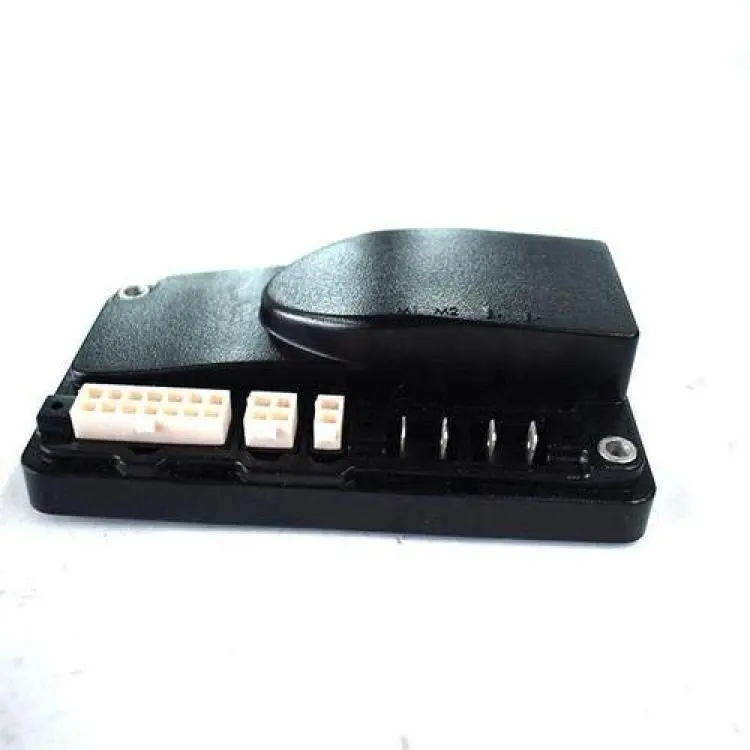

Jeenda Motor Controller for Curtis 1212P-2502 CL7011418 CT1212P-2502 24V 90A
Availability: Pre-Order, Inquiry Price
About this product
*Advanced speed regulation maintains precise speed over varied terrain, obstacles, curbs, and ramps
*Linear cutback of current ensures smooth control, with no sudden loss of power during undervoltage or overtemperature
*Optional speed limit potentiometer provides direct and linear control of the maximum vehicle speed
*Proprietary algorithms help prevent gearbox wear while providing smooth starts and reversals
*The vehicle is brought to a complete stop before the electromagnetic brake is applied, ensuring safe and secure stops under all conditions
Description
Model: 1212P-2502
Cross Reference:
CL7011418, CT1212P-2502, HU4135166R, PHAX00001022, YP550124674R, YP5501246-74R, 7011418, 1212P-2502, 4135166R, AX00001022, 550124674R, 5501246-74R
Nominal Battery Voltage (Volts): 24V
20 Second Current Rating (amps): 90
2 Minute Current Rating (amps): 50
1 Hour Current Rating (amps): 20
Max Boost Current Duration: 10 Second
Minimum motor resistance: 120 m?
B+, B- logic pin current (max.): 9 A (pins 7 and 13 on 14-pin connector)
BDI output voltage, resistance (max.): 0–5 V, 10 k?
LED output current (max.): 15 mA
Undervoltage cutoff: 14 V
Overvoltage cutoff: 34 V
Operating ambient temperature range: -104° F to 122° F
Storage ambient temperature range: -104° F to 185° F
Package environmental rating: ISTA 2A; electronics sealed to IPX5
Dimensions: 2.83 (W) x 5.15 (L) x 1.53 (H) in.
Net Weight: 0.66 lbs
