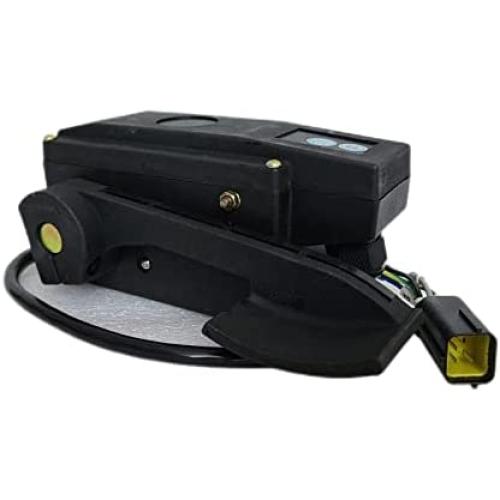

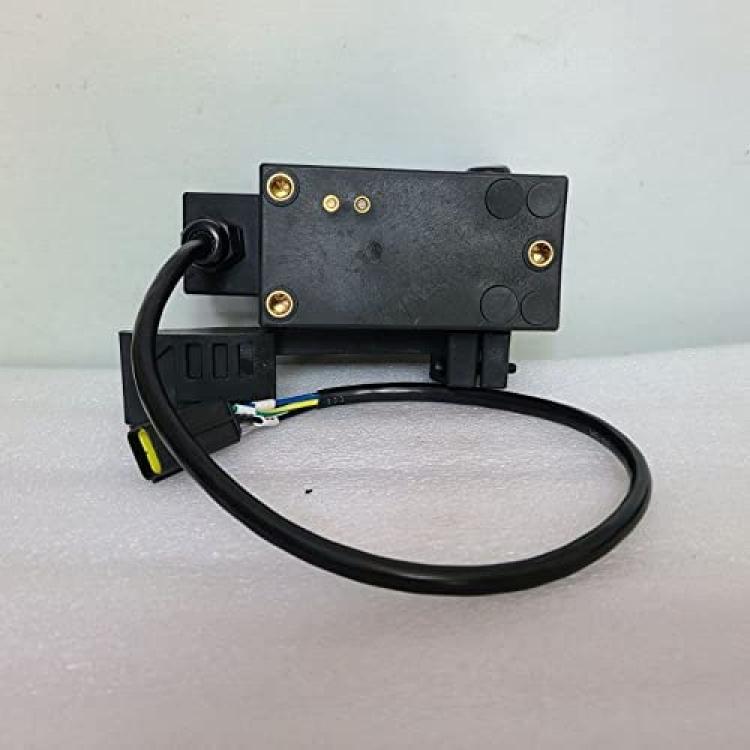

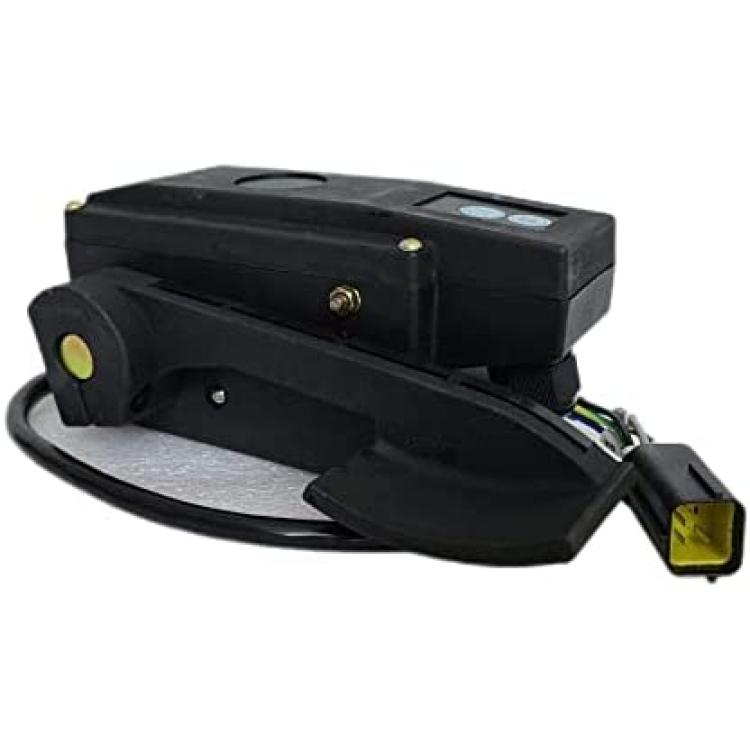

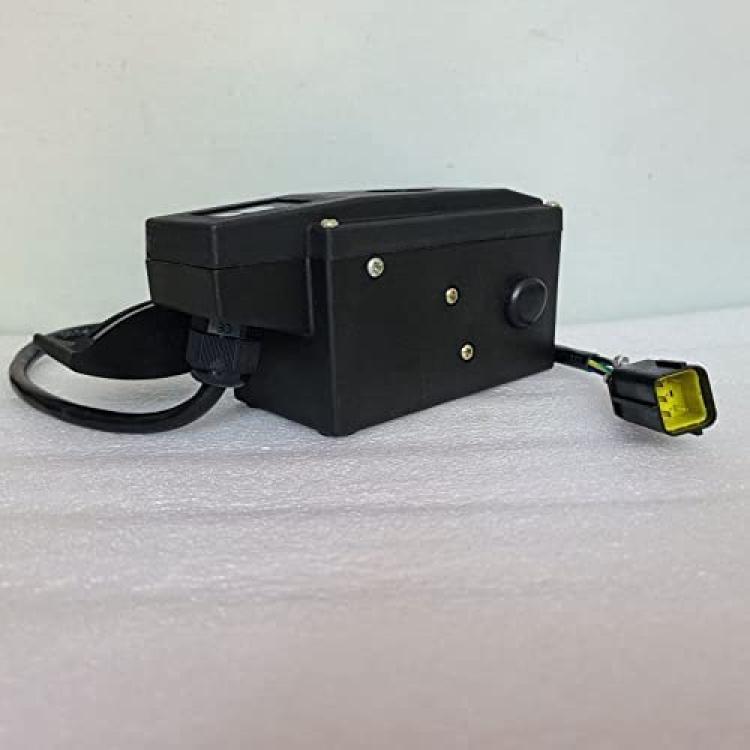

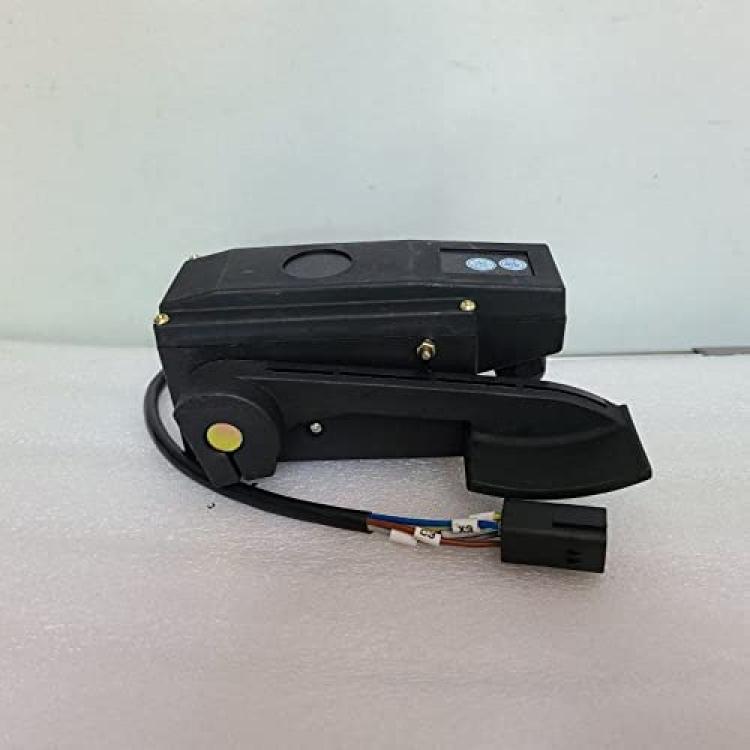

JWDAWN COPP16 COPP-16 0-10V Electronic Throttle Controller Foot Accelerator Pedal Commander Sprint Booster for ZAPI H0 H1DN H2B AC-0 AC-2 AC-3 ACE2 ACE3 Motor Controller
About this product
*Use for: ZAPI Controller H0 H1DN HP H2B AC-0 AC-1 AC-2 AC-3 ACE2 ACE3...Motor controlelr
*Working voltage: DC12V Output voltage (Throttle signal ) : 0-10V
*Wiring Diagram: C1 : Gray Throttle output 0-10V C2: Black Battery Negative(B-) C3: Brown B+ (DC12V) D2: Yellow/Green Interlock Switch input X3 : Blue Interlock switch output
*Operating Temperature: -20°c to +60°c
*After-sales Service :Video technical support, Online support
Description
Electronic Throttle Foot Pedal Accelerator Golf Cart Potentiometer ,EFP-001 EFP713-005 throttle output : 0-5K ohm , ET-126MCU ET-165MCU PB-6 ET-166 BD-126 Input :DC 24V-48 ,Throttle Output 0-5V ,EFP1205 input DC12V output 0-5V ,RJSQ-001 input DC24-80V ,output 0-5V,COPP-16 output 0-10v
