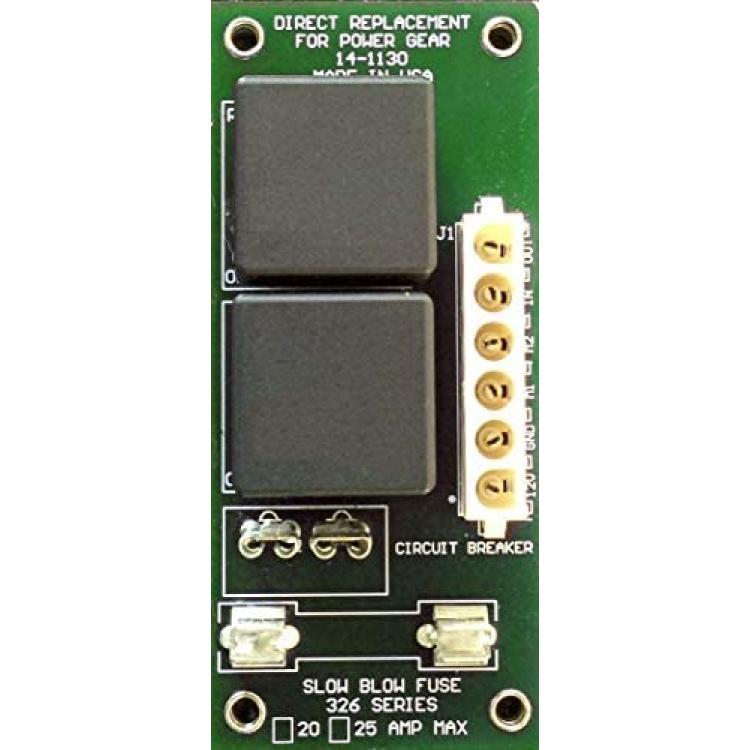

UR0 RV Power Gear 14-1130 or 140-1130 Slide Out Relay Control Board Fleetwood 246063
About this product
*This circuit board replaces Power Gear circuit board model numbers 14-1130, 14-1098 and 14-1086. The same fuse and breaker that is on the old board may be used on the new 140-1130. The 140-1130 controller will need the center wire on the wall switch to be a 12VDC (positive trigger) which on some models of controllers such as the 14-1098 are ground trigger
*This is a drop in solution to the original Power Gear 14-1130 and 140-1130 If you have the older Power Gear 14-1098 board on your RV this wont be a drop in replacement. Its slightly larger (so youll need to have new holes to screw it down) and youll also have to do some changes to your stock wiring. If you do the changes this will function for your system just fine.

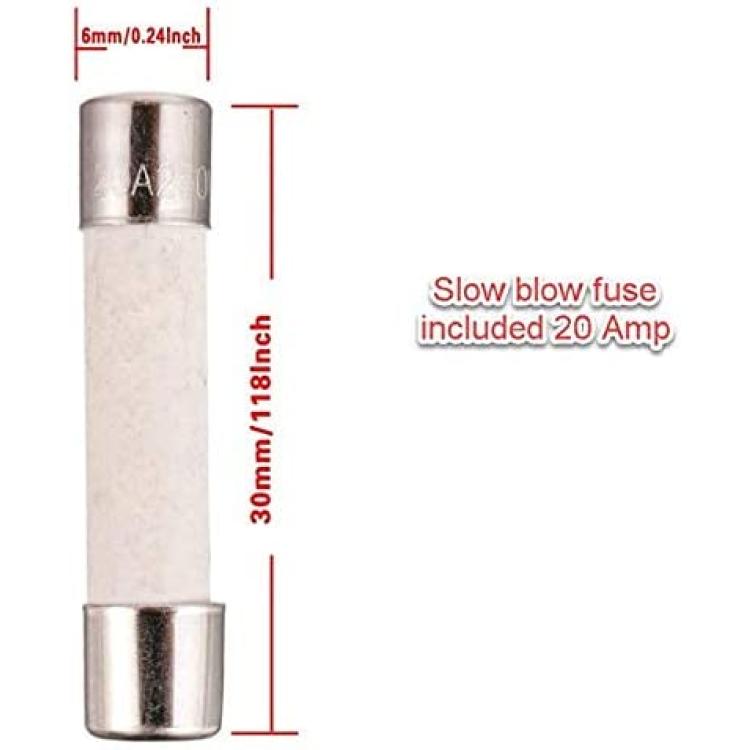

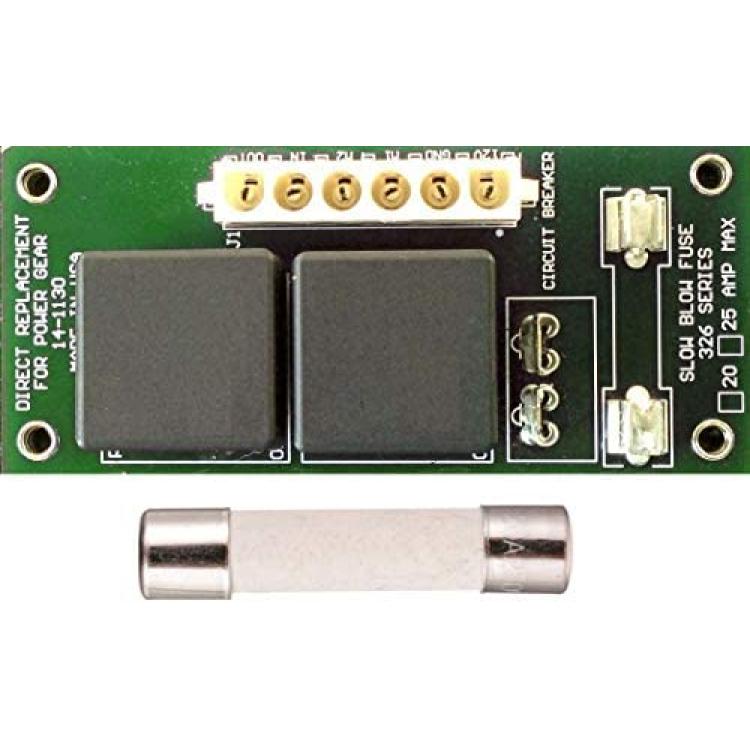

*If the Relay board you took out has the part number 14-1130 or 140-1130 than this board will drop in and you just need to move over your Thermal Circuit Breaker and Glass Fuse from your older board.
*Note: The abbreviations on the board might be slightly different as compare to pictures becasue different vendors use different abbreviations, but the output of this board will be the same.
*This circuit board replaces Power Gear circuit board model numbers 14-1130, 14-1098 and 14-1086. The same fuse and breaker that is on the old board may be used on the new 140-1130. The 140-1130 controller will need the center wire on the wall switch to be a 12VDC (positive trigger) which on some models of controllers such as the 14-1098 are ground trigger
Description

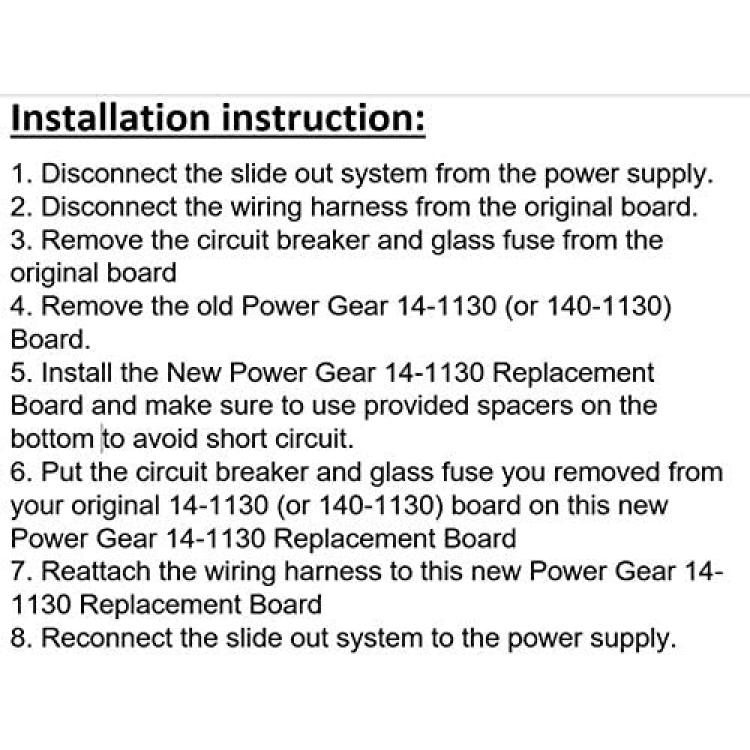

This is a replacement board for Power Gear Slide-Out Controller 14-1130 and 140-1130 The original Power Gear 14-1130 and 140-1130 are relay boards that have high power relays that route the power to the electric motors for your Power Gear Slide Out System. This is a drop in solution to the original Power Gear 14-1130 and 140-1130 If you have the older Power Gear 14-1098 board on your RV this won't be a drop in replacement. It's slightly larger (so you'll need to have new holes to screw it down) and you'll also have to do some changes to your stock wiring. If you do the changes this will function for your system just fine. If you don't want to change your wiring, stick with one of our other items (we have boards that match the OEM SPEC 14-1098 and also have upgraded 14-1098 boards in our other listings) If the Relay board you took out has the part number 14-1130 or 140-1130 than this board will drop in and you just need to move over your Thermal Circuit Breaker and Glass Fuse from your older board. The following instructions are provided as a general reference. Follow at your own risk! and we're not liable (or responsible) for any resulting consequences or damages to following these instructions!! 1. Disconnect the slide out system from the power supply. 2. Disconnect the wiring harness from the original board. 3. Remove the circuit breaker and glass fuse from the original board 4. Remove the old Power Gear 14-1130 (or 140-1130) Board. 5. Install the New Power Gear 14-1130 Replacement Board. 6. Put the circuit breaker and glass fuse you removed from your original 14-1130 (or 140-1130) board on this new Power Gear 14-1130 Replacement Board 7. Reattach the wiring harness to this new Power Gear 14-1130 Replacement Board 8. Reconnect the slide out system to the power supply.
