Description
So that can be widely used for various applications, e.g.solar RV, household system and field monitoring, etc.Advanced MPPT technology & ultra-fast tracking speed, with tracking efficiency no less than 99.5% and will minimize the MPP loss rate and loss time, Maximum DC/DC transfer efficiency is as high as 98.6% , full load efficiency is up to 98%The accuracy of the recognition and tracking at the highest point of multiple-peaks MPP.Auto control system to limit the charging power & current go over the rated value. Battery temperature compensation function and Automatic over-temperature power reduction function will prolong your battery life.Real-time energy recording and statistical function.
One key to zero clearing PV energy function.Error LED indicator tell you whats wrong with your system.Isolated RS485 with 5VDC/200mA to protect output for no power devices with MODBUS protocolTo monitor or set the parameters by using the phone Apps or PC software.
WARNING: Do not reverse the polarity of the batteries. Reverse polarity will damage the charge controller permanently???PV Over Current/powerPV Short CircuitPV Reverse PolarityNight Reverse ChargingBattery Over VoltageBattery Over DischargeBattery OverheatingController OverheatingTVS High Voltage TransientsSGS CertificateSafety:EN/IEC62109-1EMC:EN61000-6-3/EN61000-6-FCC:47 CFR Part 15, Subpart BROHS:IEC62321-3-1Ensure compatibility with any negative ground system, which is the standard and most conventional way of groundingRemote Meter:MT-50Remote Temperature ProbeRemote WIFI Control BoxRemote Bluetooth Control Box( None of the accessories is included in the package.)Nominal System: 12 / 24 / 36 / 48VDC or AutoRated charge current: 60A / Battery Input:8V?68VMax. PV open: 150V / Battery fuse: 80A/58VRated charge Power: 750W (12V) / 1500W (24V) / 2250W (36V) / 3000W (48V)Battery Type: Sealed(Default) / Gel / Flooded / User/ lithiumPV ( Voltage, Current, Kwh ), One key to zero clearing PV energy function.BAT (Voltage, Current, Temperature ), Temp. compensation:-3mV/?/2V(77?) (default)Load (Current, Kwh, Load Limer), Check load timer to ensure if opening load outputTerminals : 6AWG (16mm2)Red wire connect “+” and Black wire connect “-”Ensure tighten wiresExcellent heat dissipation characteristicEnsure great airflow. Remove all the debris around the controller (leaving a space of approx. 5.91in)Net weight: 4.5kg / Dimension: 340×236×119mm

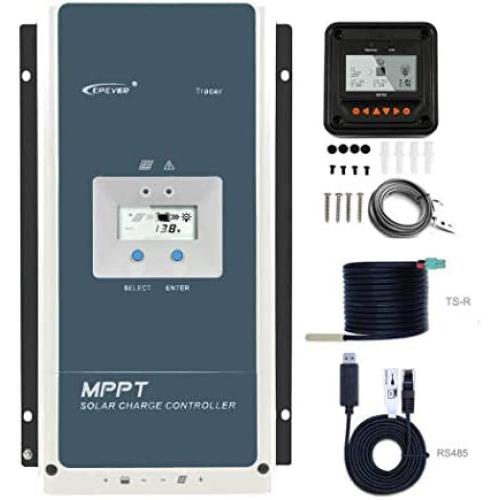

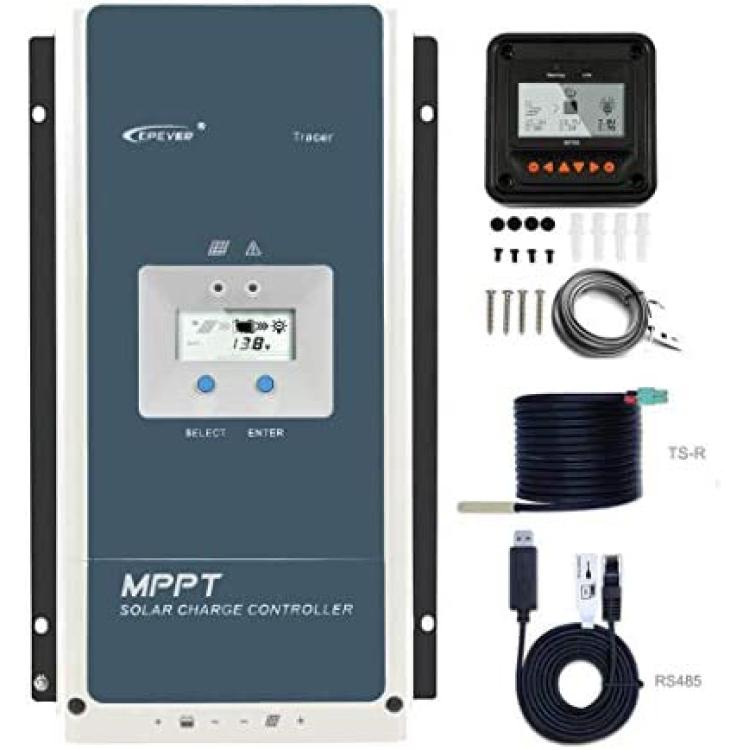

Packing List: < 1X60A mppt charge controller > < 1X Remote Meter MT50 >< 1XTemperate Sensor >< 1X PC cable>< 1X English User manual >Always connect battery first!!! Make sure enough batteries’ voltage let controller recognize the right system voltage.DO NOT connect any Inverter / wind / Alternator or Charger into the charge controller! connect the Inverter directly to the battery.Ensures solar input voltage higher 3V or more than batteries’ voltage and total input power in the range. t
he charging current almost be zero when controller is floating charge.Parameter Setting Rules: Floating voltage > Low voltage reconnect > Low voltage discharge.The solar controller will stop output when the battery under 10.7V (adjustable).The LCD will be blank when the battery under 8V and it will re-output when the battery up to the 12.6V (adjustable).Install the Charger controller to the battery as close as possible to avoid voltage and power dropping caused by overlong wire and affect normal voltage judgment.Remove all the debris around the controller(leaving a space of approx. 5.91in)
WARNING: Do not reverse the polarity of the batteries. Reverse polarity will damage the charge controller permanently???
