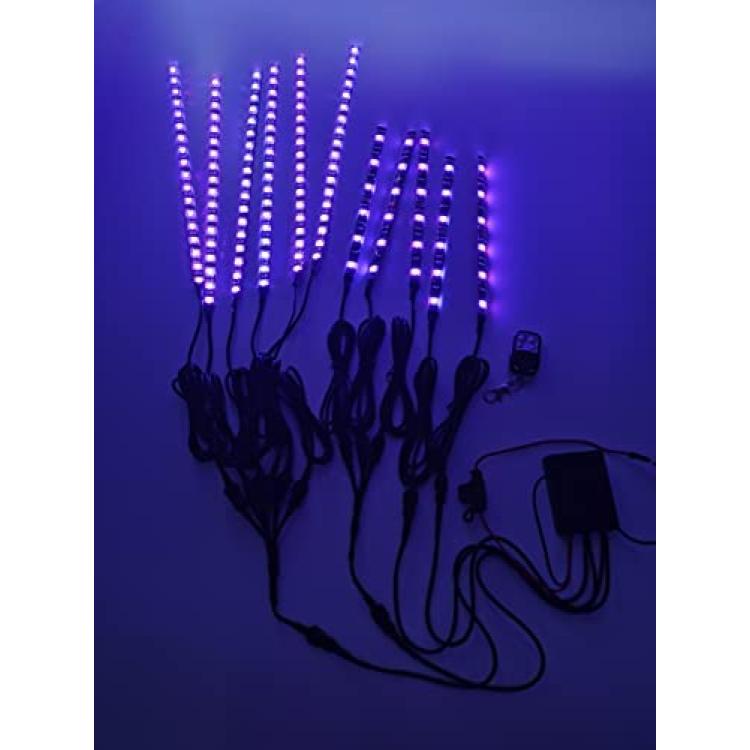

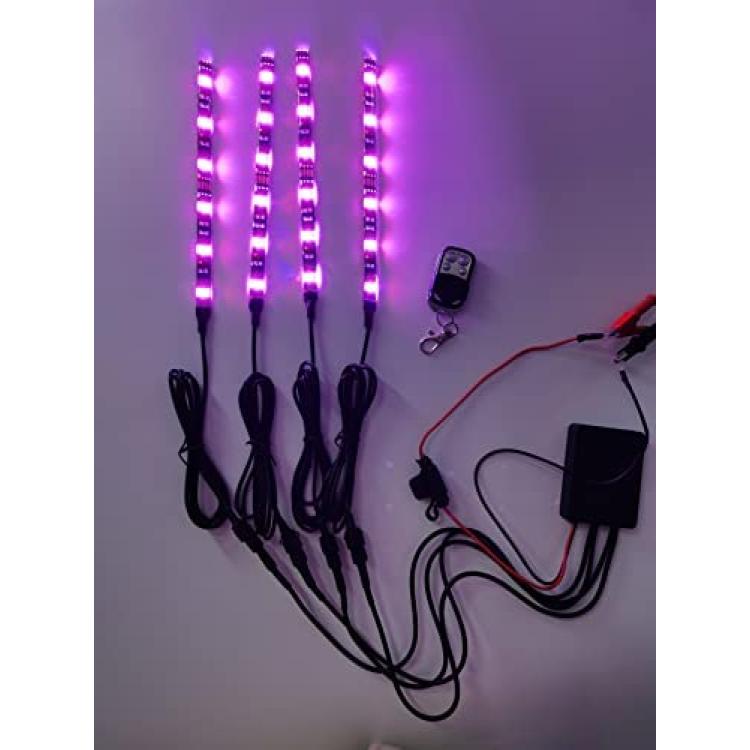

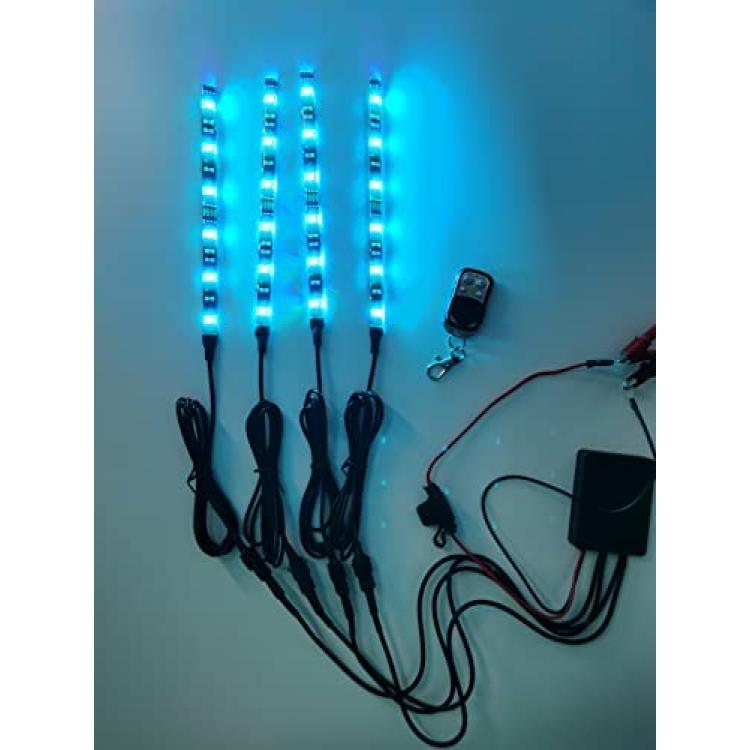

Kingshowstar 4 Pin RGB LED Controller 4-Way Motorcycle LED Replacement Remote Control for LED Motorcycle Underglow Neon Strip Light Bar

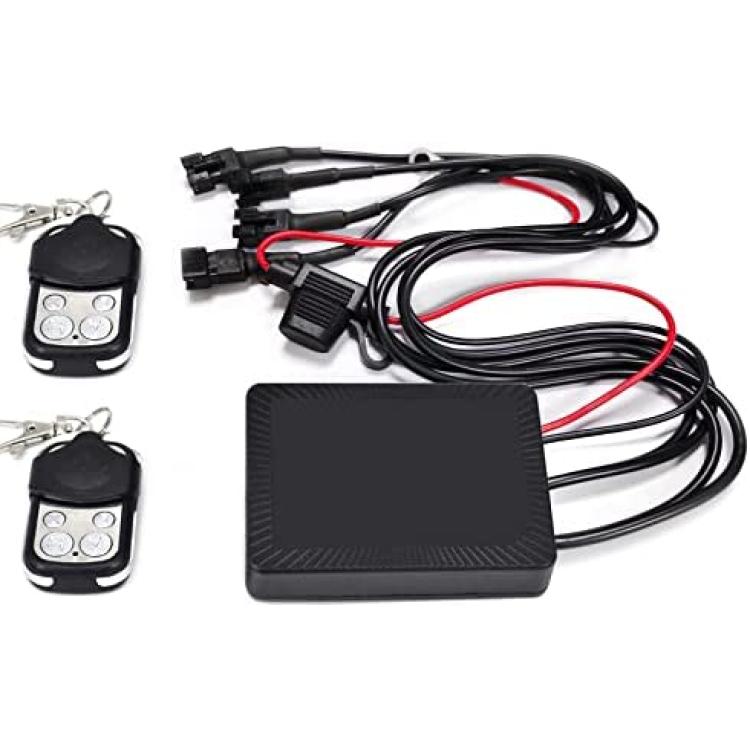

Product Name?RGB 4-Way LED Controller with Remote
RF remote controller take the advanced micro-control unit for the parts, it is widely use for LED auto lamp, LED strip, according to the actual request of the customers, it can carry out jumpy changing, gradual changing, strobe flash etc.
Body size: 74X54X15mm
Body Case?Plastic?black electronic plate
Working Voltage: DC12V
Output: 0-100W
Remote size: 56X30X14mm
Remote Case: Stainless steel
Connection: Red wire: DC12V+, Black wire: DC12-

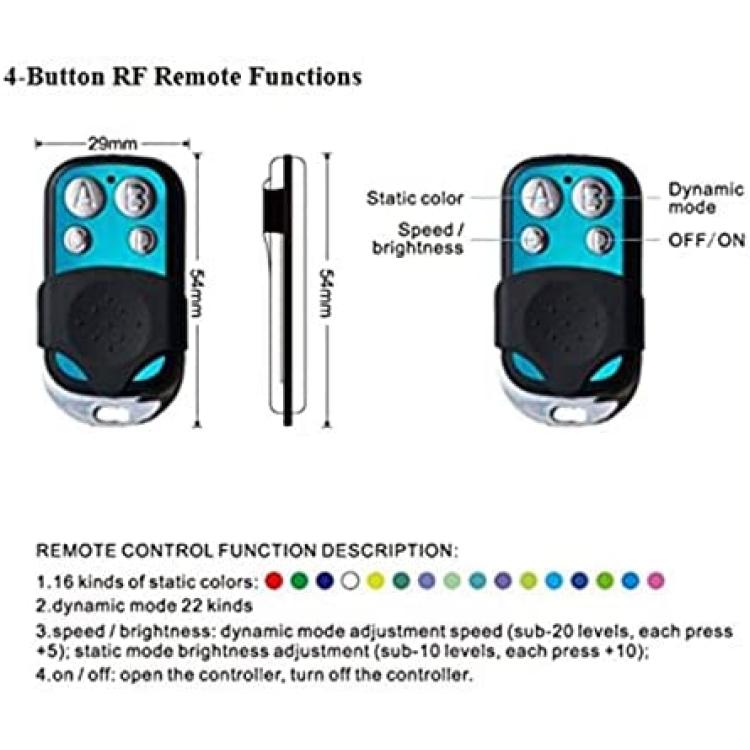

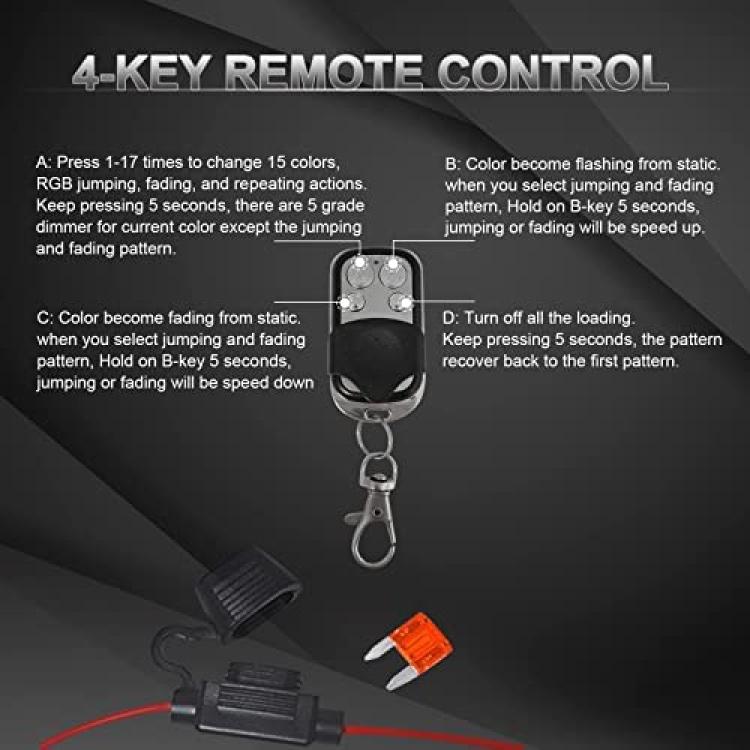

Function :
-- A key?Hit A key 1-15 times: red, blue, pink, green, yellow, blackish green, orange, peach, aqua, weak yellow, tea, purple, sky blue. RGB jumping, RGB fading, repeat action. Keep pressing 5 second, there are 5 grade dimmer for current color except the jumping and fading pattern
-- B key?Hit B key, the current color become flashing from static; when you select jumping and fading pattern, Hold on B-key 5 second, jumping or fading will be speed up.
-- C key?Hit C key, the current color become fading from static; when you select jumping and fading pattern, Hold on B-key 5 second, jumping or fading will be speed down.
-- D key?Turn off all the loading. Hold on D key 5 second, the pattern recover back to the first pattern.
