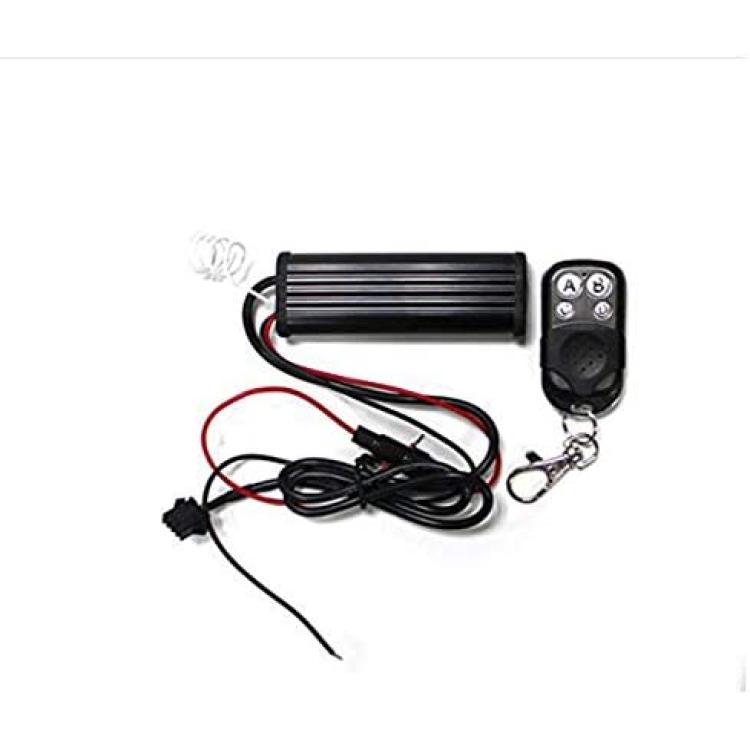

Kingshowstar 15 Kinds of Color 4 Key LED RGB Controller for Motorcycle Neon Strip Light Bar

Product Name?RGB LED RF remote controller with 4-key

Item No?RF remote controller take the advanced micro-control unit for the parts, it is widely use for LED auto lamp, LED strip, according to the actual request of the customers, it can carry out jumpy changing, gradual changing, strobe flash etc.

Body: Product size ?81X30X15mm Case?Aluminum alloy?black electronic plate Working Voltage : DC12V Output : 0-100W Remote? Product size ?56X30X14mm Case ? Stainless steel

Function :

A-key ?hit A key 1-17 times: red, blue, pink, green, yellow, blackish green, orange, peach, aqua, warm white, weak yellow, tea, purple, sky blue, white. RGB jumping, RGB fading, repeat action. Keep pressing 5 second, there are 5 grade dimmer for current color except the jumping and fading pattern

B- key ?Hit B key, the current color become flashing from static; when you select jumping and fading pattern, Hold on B-key 5 second, jumping or fading will be speed up.

C- key ?Hit C key, the current color become fading from static; when you select jumping and fading pattern, Hold on B-key 5 second, jumping or fading will be speed down.

D- key ?turn off all the loading, Hold on D key 5 second, the pattern recover back to the first pattern. Connection? Red wire ?DC12V+ DC12V+ DC12V- Black wire ?DC12- Antenna White : Loading+ Red wire ?Red - Green wire: Green - Blue wire : Blue

Body:

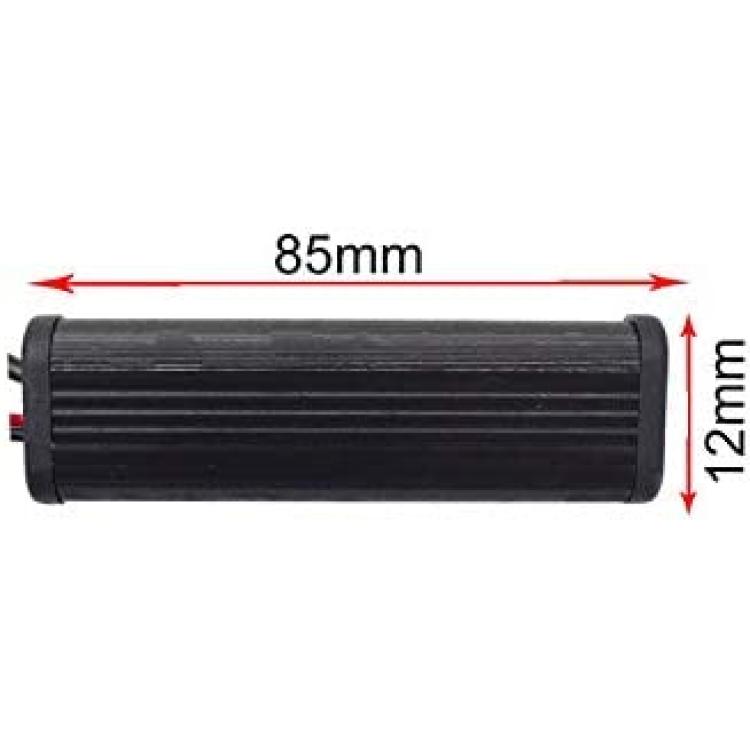

Product size ?81X30X15mm

Case?Aluminum alloy?black electronic plate

Working Voltage : DC12V

Output : 0-100W

Remote?

Product size ?56X30X14mm

Case ? Stainless steel

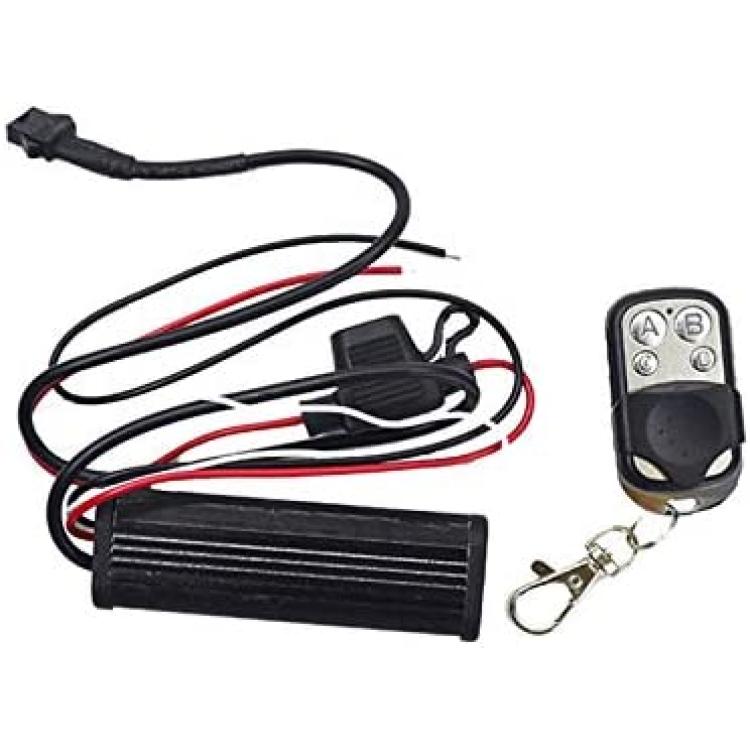

The controller with high quality durable waterproof 5A fuse, it is better protect the controller and lights.

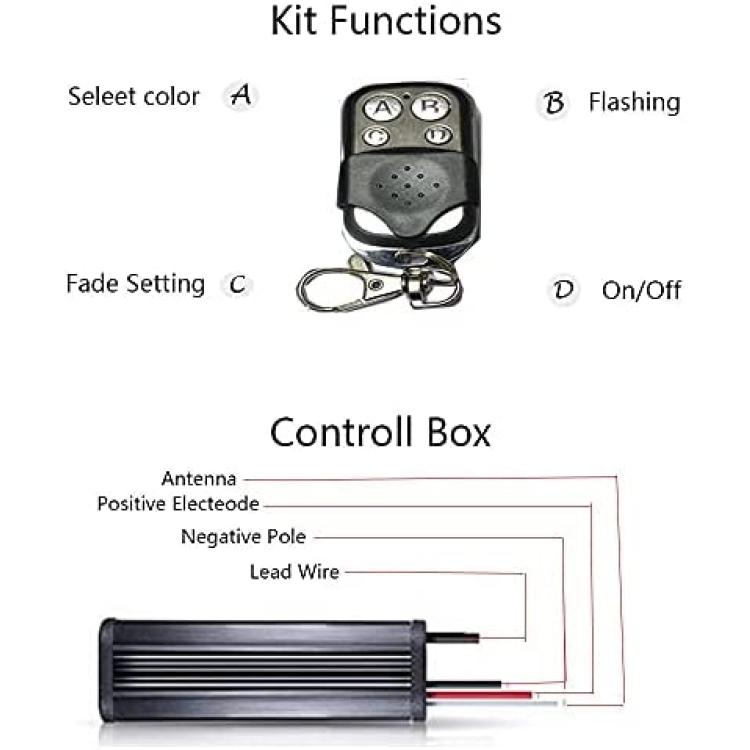

4 Button Functions:

A: Short Press 1-15 Times, 15 Kind Of Static Color, 16-17th Times, 15 Color Jumping & Million Color fading, Long Pressing to make the Static Color Dimming. Under the Jumping & Fading, Long Pressing B & C Button to change the Speed

B: Short Press to Make the Select Color Flashing

C: Short Press To Make The Select Color Fading

D: On/Off, Long Pressing To Reset
