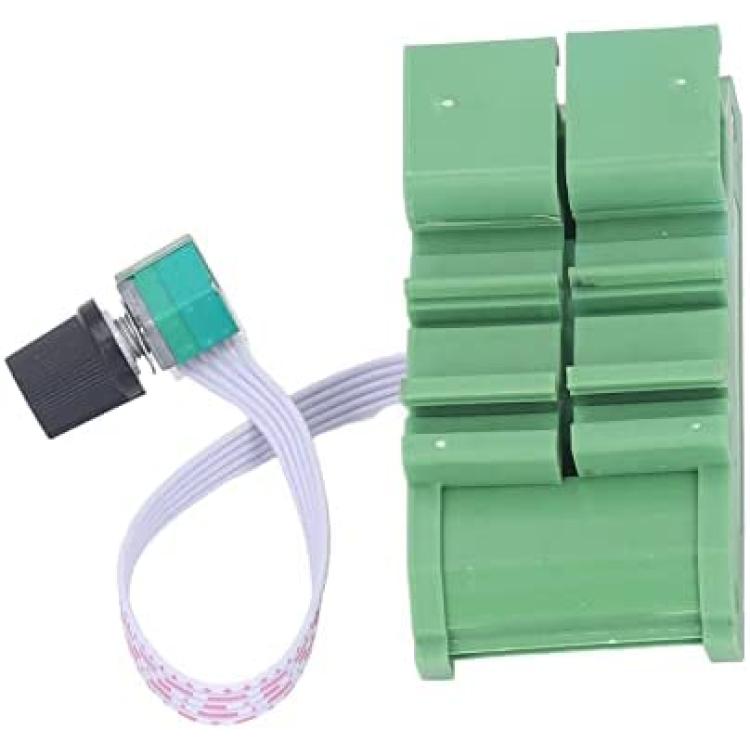

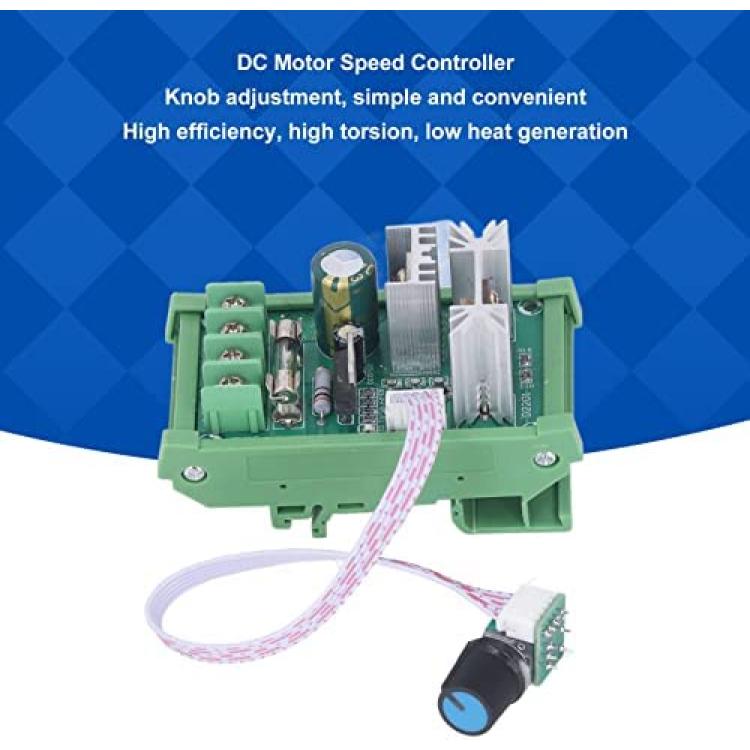

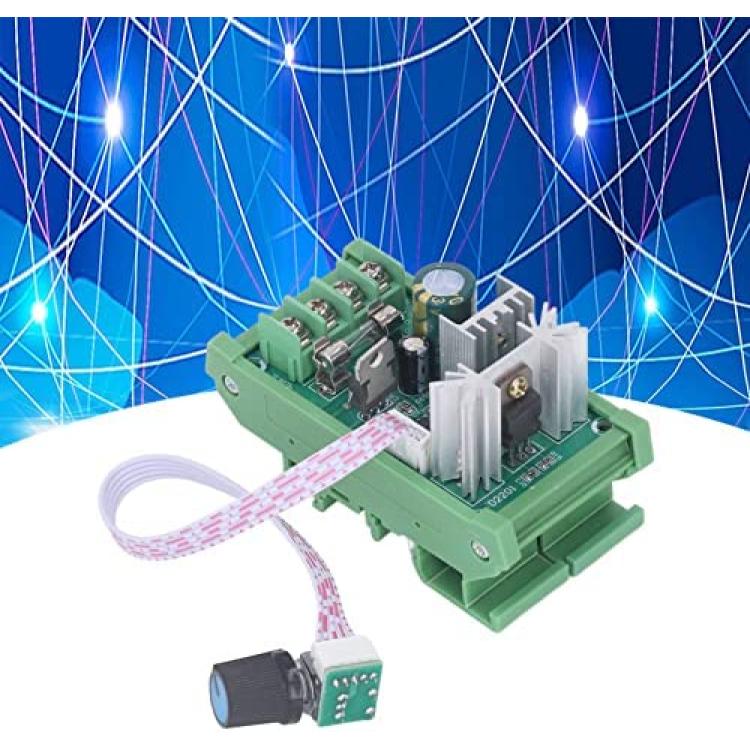

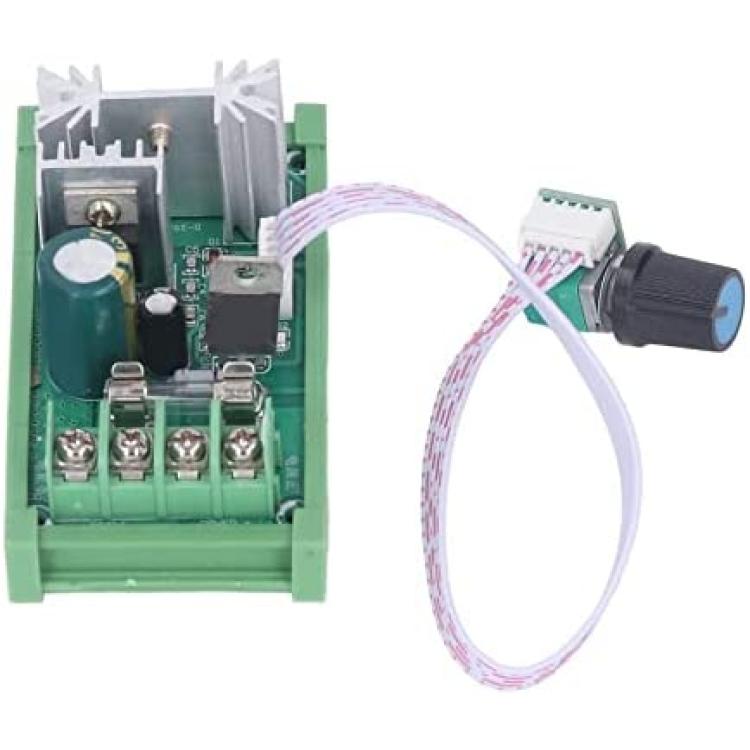

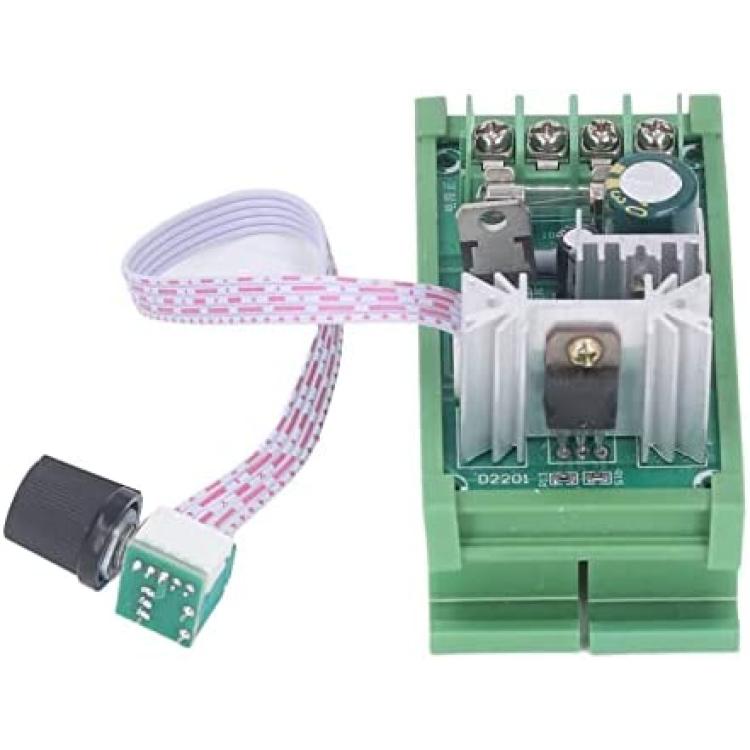

Omabeta Motor Controller Drive Module, Compact Size PWM Regulation Motor Speed Governor Knob Adjustment Good Stability for Industrial Equipments

Feature:
1. MOTOR DRIVE MODULE: DC motor speed controller drive module, the input voltage range is DC 12?55V, rail type design for easy installation and disassembly.
2. EASY OPERATION: Using excellent electronic components, with strong connectivity and stable performance, simple and convenient knob adjustment.
3. GOOD PERFORMANCE: This motor drive controller module has high efficiency, high torsion and low heat generation, and can be used immediately after wiring.
4. FOR BRUSHED MOTOR: Adopt PWM current regulation, potentiometer regulation, can be used for speed regulation and dimming of brushed motor in DC circuit.

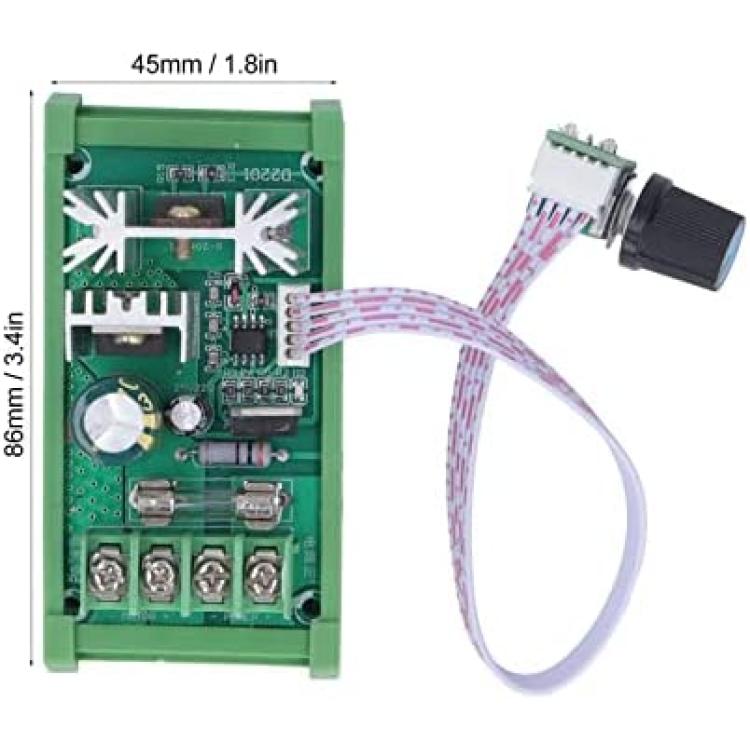

5. COMPACT SIZE: The motor regulator drive module has a compact structure, easy to install, does not occupy space, and has a wide range of applications.


Specification:
Item Type: Motor Speed Regulator
Material: PCB, aluminum alloy, ABS
Input Voltage: DC 12-55V
Output Voltage: Linear under load
Output Current: 0-10A (within 5A for long term use, pay attention to keep the module unobstructed for heat dissipation)
Limit Power: 600W
Speed Regulation Type: PWM regulation
Speed Regulation Mode: Potentiometer (linear)
Speed Range: 0-100%
Control Frequency: 25KHZ



Package List:
1 x Motor Speed Regulator

Note:
Do not use overload.
